D-Series Distribution Plenum Cables

Applications and Features | General Characteristics
Standards List | Specifications
Related Documents


Applications and Features
  • Applications:
    • Used in trunking, LAN and distribution applications where small size, lightweight, and versatile installation capability are required for ducts, plenums, and air handling spaces
    • Ideal configuration for a single termination point requiring multiple fibers
  • Features:
    • High performance components and construction
    • High specific strength-to-weight ratio and compact cable design for limited conduit space and tight bends in long cable pulls

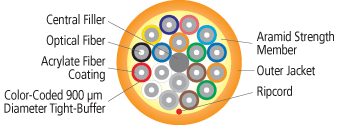

    • Helically stranded core for flexibility, survival in difficult installations, and mechanical protection for the fibers
    • Lower installed cost
    • High performance tight-buffered coating on each fiber for environmental and mechanical protection
    • High crush resistance may eliminate the need for innerduct
    • 900 μm buffer eliminates the need for costly and time-consuming installation of fanout kits or pigtail splices because connectors terminate directly to the fiber.
    • UL Listed in accordance with NEC section 770.179(a) for use in ducts, plenums and air-handling spaces
  • Indoor ("S" Jacket)
    • Indoor-only flexible flame retardant plenum jacketed cables available
    • 2 to 12 fibers
    • Can have interlocking armor applied to cables as an alternative to conduit installation
  • Indoor/Outdoor ("K" Jacket)
    • Indoor/Outdoor plenum cables eliminate the need for costly cable transitions in different installation environments
    • Cable materials are UV, water and fungus resistant
    • Higher fiber counts available than similar cables available by others in subgrouped configuration
    • Jacket is highly chemical resistant for installation in harsh industrial environments
    • Interlocking armor can be applied to cables as an alternative to conduit installation
    • Can be installed outside and in plenum or riser pathways inside, eliminating the need to transition cable types between environments
    • 2 to 72 fiber configuration is smaller and lighter than comparable sub-grouped cables, which is ideal for installation in areas with limited space or tight bends

General Characteristics
  Plenum Indoor (S) Plenum Indoor/Outdoor (K)
Jacket Type S K
Operating Temperature 0°C to +70°C -40°C to +85°C
Storage Temperature -40°C to +85°C -40°C to +85°C
Installation Temperature (cable temp.) 0°C to +60°C 0°C to +60°C
Flame Retardancy UL Listed Type OFNP (ANSI/NFPA 262) and FT6 (CSA C22.2 No. 232) UL Listed TypeOFNP (ANSI/NFPA 262) and FT6 (CSA C22.2 No. 232)
Crush Resistance 1,500 N/cm 1,500 N/cm
Impact Resistance 1,000 impacts 1,000 impacts
Flex Resistance 1,000 cycles 1,000 cycles
These specifications are subject to change without prior notification.

Standards List

Optical Cable Corporation indoor/outdoor tight buffered fiber optic cables meet the functional requirements of the following standards

  • GR-409-CORE
  • ICEA-S-104-696
  • ICEA-S-83-596
  • TIA-568
  • TIA-598
