A-Series Micro Assembly – Plenum Cables

Installation zone RECOMMENDATION
1
1
1
1
  • Resilient and flexible for jumpers and patch cords
  • Suitable for general purpose indoor use, such as routing connections in patching systems
  • Short "patch cord" cables ideal for links between electronic equipment and main fiber optic cables

Applications

  • Resilient and flexible for jumpers and patch cords
  • Suitable for general purpose indoor use, such as routing connections in patching systems
  • Short "patch cord" cables ideal for links between electronic equipment and main fiber optic cables

Features

  • Flame-retardant for indoor installations
  • Compatible with all standard fiber optic connectors designed for small form-factor simplex and duplex connectors such as MT-RJ and LC connectors
  • High performance tight-buffered coating on each optical fiber for environmental and mechanical protection
  • Custom jacket colors are available to match connectors
  • Private labeling on the cable outer jacket is also available

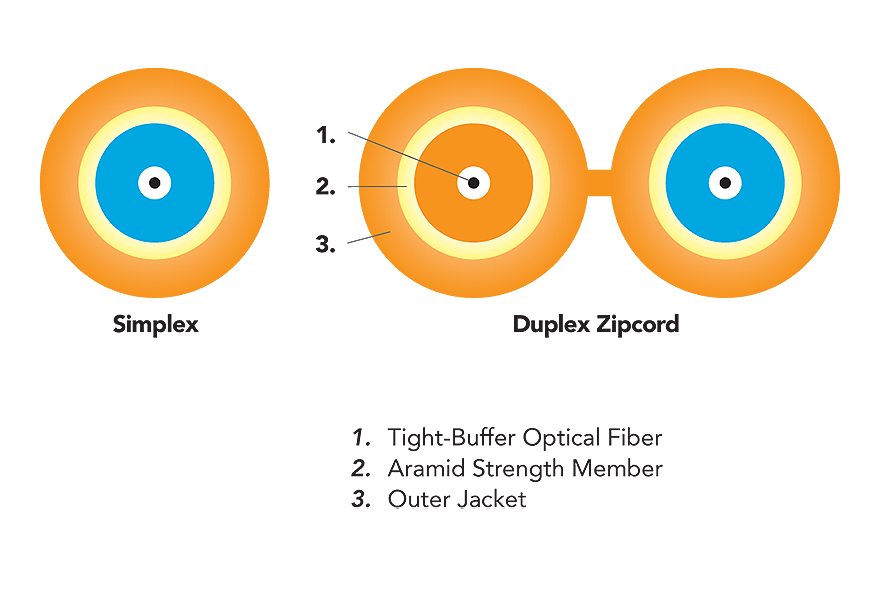

  • 1 (simplex) and 2 (duplex) fibers available
  • Available with bend-tolerant single-mode and multimode fibers

Characteristics

CharacteristicPlenum 2.0mmPlenum 1.6mm
Operating Temp0°C to +70°C0°C to +70°C
Storage Temp-40°C to +85°C-40°C to +85°C
Install Temp0°C to +60°C0°C to +60°C
Flame RetardancyUL Listed Type OFNP (ANSI/NFPA 262) and FT6 (CSA C22.2 No. 232)UL Listed Type OFNP (ANSI/NFPA 262) and FT6 (CSA C22.2 No. 232)
Crush Resist500 N/cm500 N/cm
Impact Resist150 impacts150 impacts
Flex Resist1000 cycles1000 cycles
Jacket TypeSS

Standards

Optical Cable Corporation tight-buffered fiber optic Assembly Cables meet the functional requirements of the following standards:

  • GR-409-CORE
  • ICEA-S-83-596
  • TIA-568
  • TIA-598

Specifications

Plenum 2.0mm

Tensile LoadMinimum Bend Radius
Fiber CountPart NumberPart Number ConfiguratorDiameter mm
(in)
Weight kg/km
(lbs/1,000ft)
Installation N
(lbs)
Operation N
(lbs)
Installation cm
(in)
Longer Term cm
(in)

1AE001S***9*P 2.0
(0.1)
5.0
(3.0)
300
(67)
160
(36)
3.8
(1.5)
2.5
(1.0)
2AE002S***9*P 2.0
(0.1)
10.0
(6.0)
600
(135)
300
(67)
3.8
(1.5)
2.5
(1.0)

Plenum 1.6mm

Tensile LoadMinimum Bend Radius
Fiber CountPart NumberPart Number ConfiguratorDiameter mm
(in)
Weight kg/km
(lbs/1,000ft)
Installation N
(lbs)
Operation N
(lbs)
Installation cm
(in)
Longer Term cm
(in)

1AC001S***9*P 1.6
(0.1)
2.7
(1.8)
355
(80)
130
(30)
3.8
(1.5)
2.5
(1.0)
2AC002S***9*P 1.6
(0.1)
7.0
(4.7)
450
(100)
167
(38)
3.8
(1.5)
2.5
(1.0)
