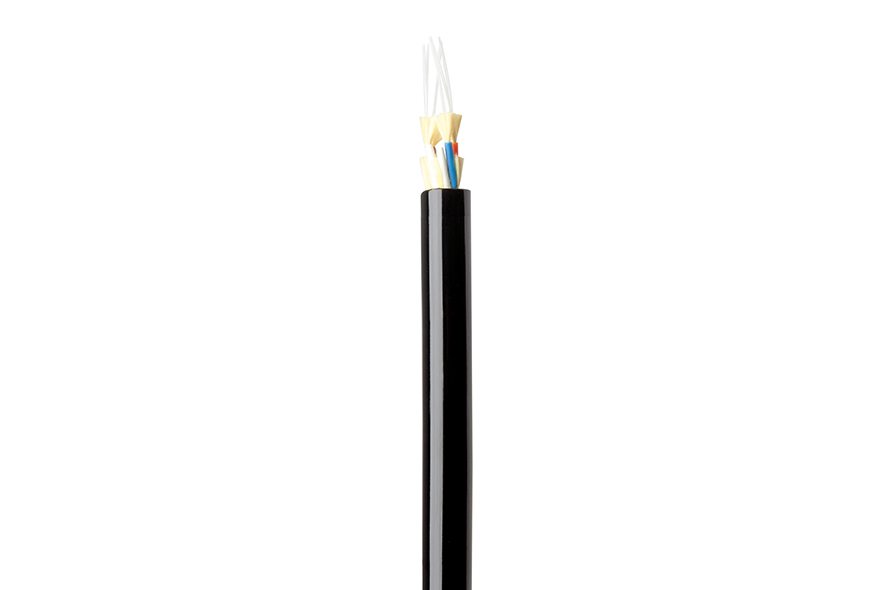

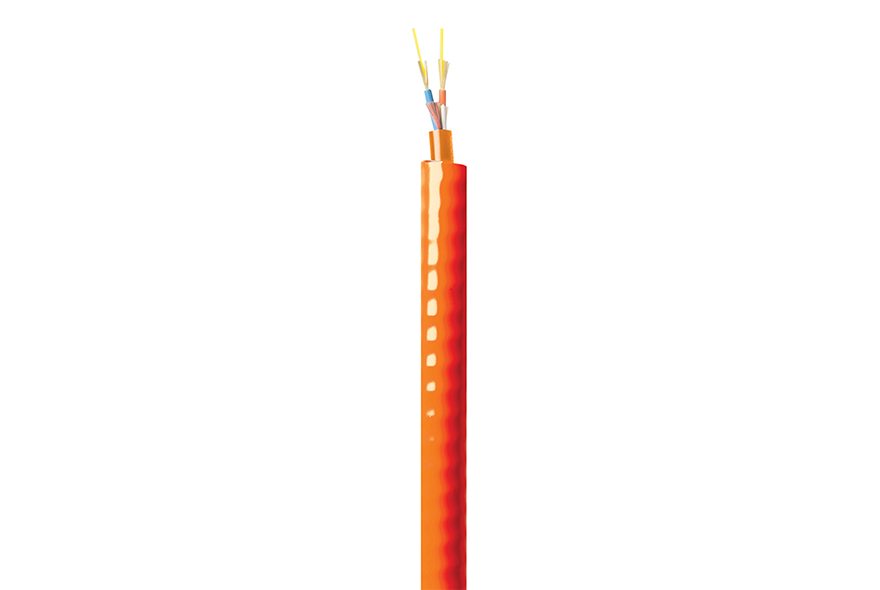

B-Series Breakout – Festoon Cables
Installation zone RECOMMENDATION1
1
1
1
- Flexible, rugged, polyurethane outer cable jacket
- Each fiber has military-grade hard elastomeric 900µm buffer, aramid strength members and 2.5mm sub-cable jacket for excellent fiber protection
- Resistant to oils and grease
- Wide operating and storage temperature range
- UV protected, fungus and water resistant
- For use in overhead cranes, hoists and other industrial applications
Features
- Minimum operating bend radius of 10-times the cable outside diameter
- Capable of withstanding 100mph side-wind loading
- Tight-buffered cable design: No gel to migrate down the cable due to vibration or vertical installation, and no axial migration of fibers
- Capable of vertical distances greater than 1,000 meters- still meets and maintains performance requirements
- Helically stranded subunits ensure flexibility and increased mechanical strength
- Core-Locked™ outer jacket for excellent crush and impact protection and improved tear resistance
- Festoon cables utilize OCC's Ultra-Fox Plus fiber for the ultimate in environmental and mechanical protection
Characteristics
| Characteristic | With 2.5mm subcables |
|---|---|
| Operating Temp | -55°C to +85°C |
| Storage Temp | -70°C to +85°C |
| Crush Resist | 2200 N/cm |
| Impact Resist | 1500 impacts |
| Flex Resist | 2000 cycles |
*TIA/EIA-455-25 mil. requirement **TIA/EIA-455-41 mil. requirement
Specifications
Festoon (2.5mm)
| Tensile Load | Minimum Bend Radius | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Fiber Count | Part Number | Part Number Configurator | Diameter mm (in) | Weight kg/km (lbs/1,000ft) | Installation N (lbs) | Operation N (lbs) | Installation cm (in) | Longer Term cm (in) | |
| 4 | Please Call OCC for ordering assistance. | 16.0 (0.6) | 203.0 (136.0) | 1,600 (360) | 400 (90) | 24.0 (9.4) | 16.0 (6.3) | ||
| 6 | Please Call OCC for ordering assistance. | 16.0 (0.6) | 206.0 (138.0) | 1,600 (360) | 400 (90) | 24.0 (9.4) | 16.0 (6.3) | ||
| 8 | Please Call OCC for ordering assistance. | 16.0 (0.6) | 209.0 (140.0) | 2,400 (560) | 600 (130) | 24.0 (9.4) | 16.0 (6.3) | ||
| 10 | Please Call OCC for ordering assistance. | 18.0 (0.7) | 272.0 (183.0) | 3,200 (720) | 800 (180) | 27.0 (10.6) | 18.0 (7.1) | ||
| 12 | Please Call OCC for ordering assistance. | 18.0 (0.7) | 254.0 (171.0) | 6,000 (1,350) | 1,500 (340) | 27.0 (10.6) | 18.0 (7.1) | ||
| 18 | Please Call OCC for ordering assistance. | 18.0 (0.7) | 249.0 (167.0) | 6,000 (1,350) | 1,500 (340) | 27.0 (10.6) | 18.0 (7.1) | ||
| 24 | Please Call OCC for ordering assistance. | 18.0 (0.7) | 237.0 (159.0) | 7,200 (1,600) | 1,800 (400) | 27.0 (10.6) | 18.0 (7.1) | ||
