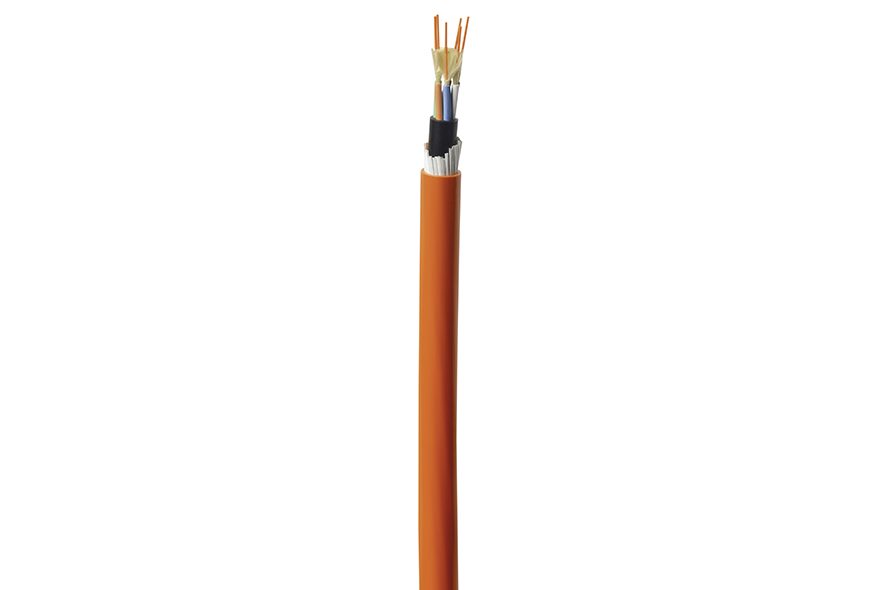

B-Series Breakout – Field Broadcast

Installation zone RECOMMENDATION
1
1
1
1
  • Deployable cable that is ideal for use in harsh environments where deployment and retrieval for reuse are required for temporary broadcast networks

Features

  • Extremely strong, lightweight, rugged, survivable tight-buffered cables designed for broadcast field use and commercial applications
  • Polyurethane jacketed for abrasion, cut, and chemical resistance
  • Core-locked jacket for improved mechanical performance

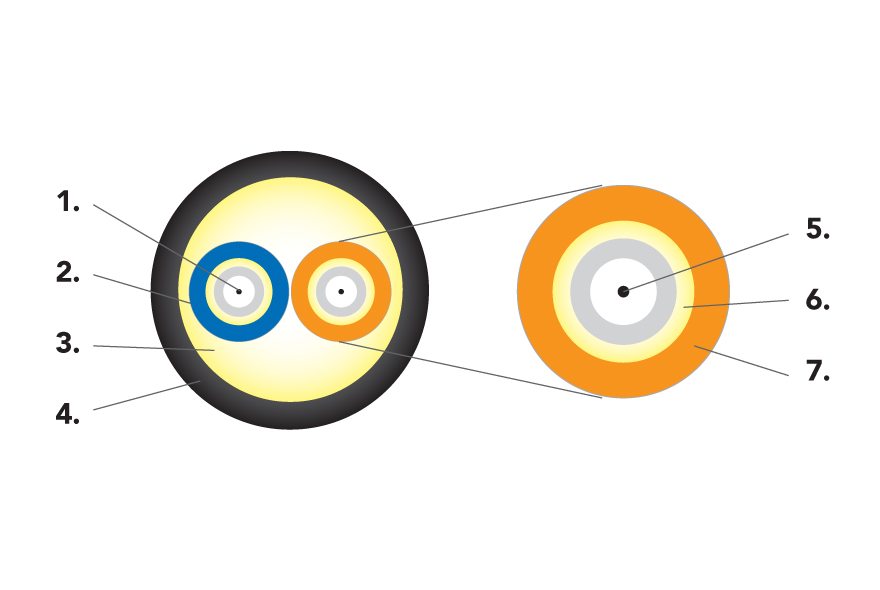

  • Breakout cable design with indivivual color-coded subcables protecting each optical fiber
  • Crush resistant and resilient, with two separate layers or aramid strength members in the subcables for individual single-fiber connector and termination pin, and overall for termination to multiway connector backshells or other housings
  • Helically stranded cable core for flexibility, survival in difficult pulls, and excellent mechanical protection for the optical fibers
  • Cables have been tested and are in use in field broadcast data communications applications worldwide
  • Can be used outdoors for temporary deployment directly on the ground, in all terrains,including severe environments
  • Suitable for industrial, mining, and petrochemical environments; chemical resistant
  • Round cable design for easy installation and survivability
  • Often used with miltiway military tactical connectors for maximum connector retention (400lbs.)
  • Ideally suited for use with MIL-C-38999 style military connectors; subcables terminate to individual pins, and overall aramid strength member terminates to backshell
  • 2.0mm subcables standard
  • Tactical Polyurethane (C) outer jacket material is standard. Flame-Retardant Tactical (V) and Low-Smoke Zero-Halogen (G) outer jacket materials are available
OCC also offers:
  • Broadcast cables pre-spooled on deployable reels for a ready-to-use product
  • Broadcast cables can be pre-terminated with single fiber or ruggedized multi-channel connectors upon request

Characteristics

CharacteristicC JacketG JacketV Jacket
Operating Temp-40°C to +85°C-40°C to +85°C-40°C to +85°C
Storage Temp-70°C to +85°C-70°C to +85°C-70°C to +85°C
Crush Resist210021002100
Impact Resist150015001500
Flex Resist200020002000
Jacket TypeCGV

Specifications

C Jacket

Tensile LoadMinimum Bend Radius
Fiber CountPart NumberPart Number ConfiguratorDiameter mm
(in)
Weight kg/km
(lbs/1,000ft)
Installation N
(lbs)
Operation N
(lbs)
Installation cm
(in)
Longer Term cm
(in)

2BX002C***9KB 6.5
(0.3)
36.0
(24.0)
2,200
(490)
550
(120)
10.4
(4.1)
5.2
(2.0)
4BX004C***9KB 7.5
(0.3)
47.0
(32.0)
2,200
(490)
550
(120)
12.0
(4.7)
6.0
(2.4)
6BX006C***9KB 8.5
(0.3)
56.0
(37.0)
2,400
(540)
600
(130)
13.6
(5.4)
6.8
(2.7)
8BX008C***9KB 10.0
(0.4)
75.0
(51.0)
3,200
(720)
800
(180)
16.0
(6.3)
8.0
(3.1)
10BX010C***9KB 11.5
(0.5)
100.0
(67.0)
4,000
(900)
1,000
(220)
18.4
(7.2)
9.2
(3.6)
12BX012C***9KB 11.0
(0.4)
88.0
(59.0)
4,800
(1,080)
1,200
(270)
17.6
(6.9)
8.8
(3.5)
18BX018C***9KB 13.5
(0.5)
138.0
(93.0)
7,200
(1,620)
1,800
(400)
21.6
(8.5)
10.8
(4.3)
24BX024C***9KB 14.5
(0.6)
150.0
(101.0)
9,600
(2,160)
2,400
(540)
23.2
(9.1)
11.6
(4.6)

G Jacket

Tensile LoadMinimum Bend Radius
Fiber CountPart NumberPart Number ConfiguratorDiameter mm
(in)
Weight kg/km
(lbs/1,000ft)
Installation N
(lbs)
Operation N
(lbs)
Installation cm
(in)
Longer Term cm
(in)

2BX002G***9KB 6.5
(0.3)
36.0
(24.0)
2,200
(490)
550
(120)
10.4
(4.1)
5.2
(2.0)
4BX004G***9KB 7.5
(0.3)
47.0
(32.0)
2,200
(490)
550
(120)
12.0
(4.7)
6.0
(2.4)
6BX006G***9KB 8.5
(0.3)
56.0
(37.0)
2,400
(540)
600
(130)
13.6
(5.4)
6.8
(2.7)
8BX008G***9KB 10.0
(0.4)
75.0
(51.0)
3,200
(720)
800
(180)
16.0
(6.3)
8.0
(3.1)
10BX010G***9KB 11.5
(0.5)
100.0
(67.0)
4,000
(900)
1,000
(220)
18.4
(7.2)
9.2
(3.6)
12BX012G***9KB 11.0
(0.4)
88.0
(59.0)
4,800
(1,080)
1,200
(270)
17.6
(6.9)
8.8
(3.5)
18BX018G***9KB 13.5
(0.5)
138.0
(93.0)
7,200
(1,620)
1,800
(400)
21.6
(8.5)
10.8
(4.3)
24BX024G***9KB 14.5
(0.6)
150.0
(101.0)
9,600
(2,160)
2,400
(540)
23.2
(9.1)
11.6
(4.6)

V Jacket

Tensile LoadMinimum Bend Radius
Fiber CountPart NumberPart Number ConfiguratorDiameter mm
(in)
Weight kg/km
(lbs/1,000ft)
Installation N
(lbs)
Operation N
(lbs)
Installation cm
(in)
Longer Term cm
(in)

2BX002V***9KB 6.5
(0.3)
36.0
(24.0)
2,200
(490)
550
(120)
10.4
(4.1)
5.2
(2.0)
4BX004V***9KB 7.5
(0.3)
47.0
(32.0)
2,200
(490)
550
(120)
12.0
(4.7)
6.0
(2.4)
6BX006V***9KB 8.5
(0.3)
56.0
(37.0)
2,400
(540)
600
(130)
13.6
(5.4)
6.8
(2.7)
8BX008V***9KB 10.0
(0.4)
75.0
(51.0)
3,200
(720)
800
(180)
16.0
(6.3)
8.0
(3.1)
10BX010V***9KB 11.5
(0.5)
100.0
(67.0)
4,000
(900)
1,000
(220)
18.4
(7.2)
9.2
(3.6)
12BX012V***9KB 11.0
(0.4)
88.0
(59.0)
4,800
(1,080)
1,200
(270)
17.6
(6.9)
8.8
(3.5)
18BX018V***9KB 13.5
(0.5)
138.0
(93.0)
7,200
(1,620)
1,800
(400)
21.6
(8.5)
10.8
(4.3)
24BX024V***9KB 14.5
(0.6)
150.0
(101.0)
9,600
(2,160)
2,400
(540)
23.2
(9.1)
11.6
(4.6)
