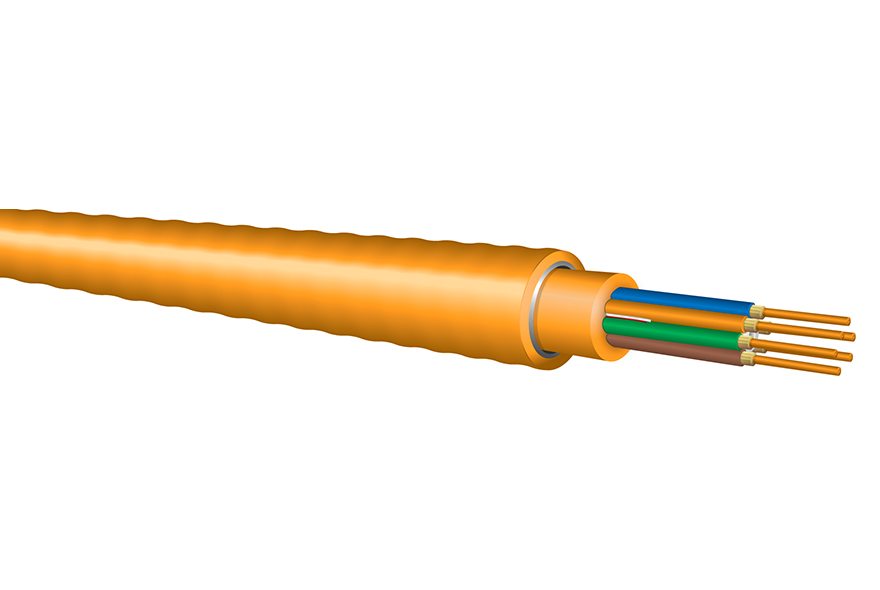

B-Series Breakout – Interlocking Armor (ILA) Plenum Rated Cables

Installation zone RECOMMENDATION
1
1
1
1
  • Ideal for industrial and other installations requiring a metallic armor
  • Interlocking armor may eliminate the need for conduit, reducing installation costs

Features

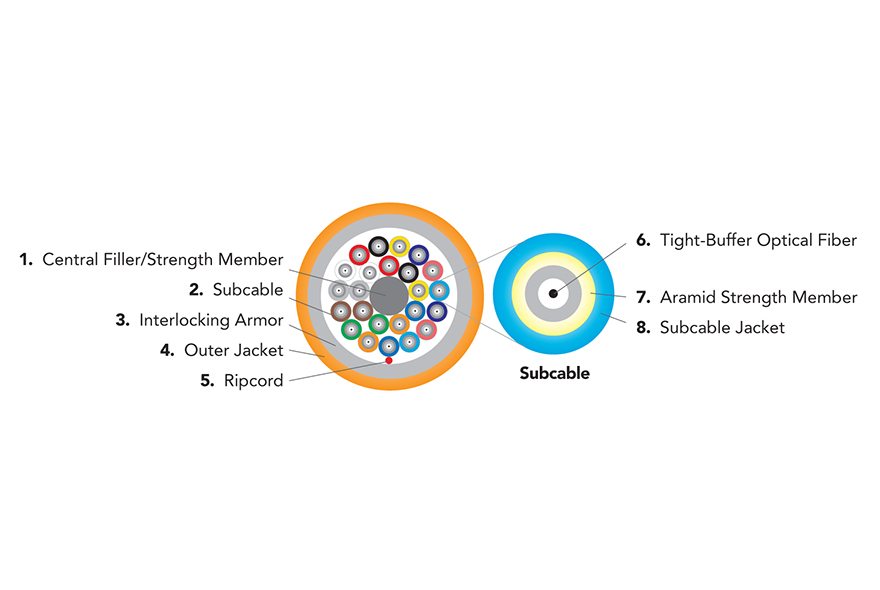

  • Inner cable is a fully functional B-Series Breakout Plenum Rated Cable
  • Cable materials are Indoor/Outdoor – UL-listed OFCP and UV, water and fungus resistant
  • UL listed in accordance with NEC section 770.179(a) for use in ducts, plenums and air-handling spaces
  • Aluminum interlocking armor with plenum fluoropolymer (K) overjacket
  • Greater flexibility than standard corrugated steel-armored (CST) cables
  • Interlocking armor can be easily removed, leaving an intact inner cable
  • 2.0mm subunits are standard
  • Wide operating temperature of -40°C to +85°C for (K jacket) cables

Characteristics

CharacteristicPlenum (2.0mm)
Operating Temp-40°C to +85°C
Storage Temp-40°C to +85°C
Install Temp0°C to +60°C (cable temp.)
Flame RetardancyUL listed OFCP (ANSI/NFPA 262) and FT6 (CSA C22.2 No. 232)
Crush Resist650 N/cm
Impact Resist20 impacts
Flex Resist25 cycles
Jacket TypeK

Standards

OCC Indoor/Outdoor tight-buffered fiber optic cables meet functional requirements of the following standards:

  • UL 1651
  • ANSI/NFPA 262
  • ICEA-S-83-596

Specifications

Plenum (2.0mm)

Tensile LoadMinimum Bend Radius
Fiber CountPart NumberPart Number ConfiguratorDiameter mm
(in)
Weight kg/km
(lbs/1,000ft)
Installation N
(lbs)
Operation N
(lbs)
Installation cm
(in)
Longer Term cm
(in)

2 Please Call OCC for ordering assistance. 14.1
(0.6)
189.0
(127.0)
1,350
(300)
400
(90)
28.2
(11.1)
21.2
(8.3)
4 Please Call OCC for ordering assistance. 14.1
(0.6)
189.0
(127.0)
1,350
(300)
400
(90)
28.2
(11.1)
21.2
(8.3)
6 Please Call OCC for ordering assistance. 15.1
(0.6)
218.0
(146.0)
1,350
(300)
400
(90)
30.2
(11.9)
22.7
(8.9)
8 Please Call OCC for ordering assistance. 16.7
(0.7)
263.0
(177.0)
1,350
(300)
400
(90)
33.4
(13.1)
25.1
(9.9)
12 Please Call OCC for ordering assistance. 18.2
(0.7)
304.0
(204.0)
1,350
(300)
400
(90)
36.4
(14.3)
27.3
(10.7)
18 Please Call OCC for ordering assistance. 20.2
(0.8)
385.0
(259.0)
1,350
(300)
400
(90)
40.4
(15.9)
30.3
(11.9)
24 Please Call OCC for ordering assistance. 22.3
(0.9)
468.0
(314.0)
1,350
(300)
400
(90)
44.6
(17.6)
33.5
(13.2)
Talk to a knowledgeable OCC Expert that can find or customize a product to fit your specifications. 800-622-7711
