  • PA8109 Jack Termination Tool

Category 5e – KMJ Jacks

Installation zone RECOMMENDATION
1
1
1
1

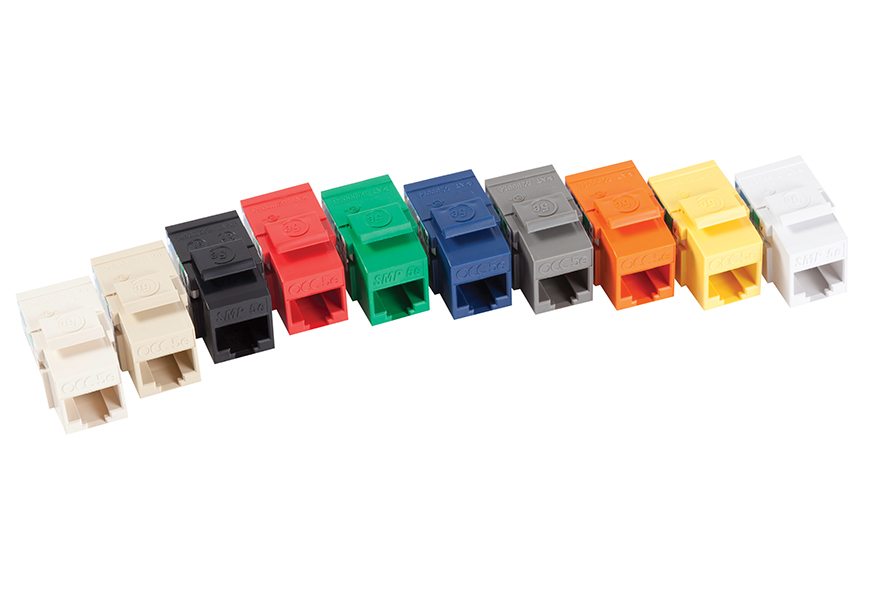

The OCC Category 5e Keystone Modular Jack is a great alternative for high-density applications. Featuring a low profile, snap-in design and support for universal T568A/B wiring, the KMJ Cat5e jacks by OCC offer exceptional performance that exceeds industry standards. OCC’s patented PC board technology provides component compliance to Cat5e specifications. Economy version Keystone jacks are also available that utilize a leadframe design and meet Cat5e link performance.

Applications

  • 1000BASE-T Gigabit Ethernet
  • 100BASE-TX Fast Ethernet
  • 10BASE-T Ethernet
  • Broadband Video
  • 270 Mbps digital video
  • 155/622 Mbps ATM
  • 100 Mbps TP-PMD
  • 4/16 Mbps Token Ring
  • Voice

Features

  • Meets IEC 60603-7 requirements
  • 110-style IDC contacts meet TIA 568-C.2 requirements
  • Backward compatible, Cat 3, and Cat 5 compliant
  • Universal T568A/B wiring for easy installation
  • Available in 12 color options
  • Fits all OCC Keystone faceplates and surface mount boxes
  • Compliant with Power over Ethernet (PoE+) requirements
  • Insulation resistance- 500MΩ minimum
  • Dielectric withstand- 1000 VAC RMS, AC 60Hz or 1414 VDC P-P
  • DC current rating- 1.5 A per conductor at 20°C ambient de-rated to 0.75 A at 60°C
  • One-piece stuffer cap included

Specifications

Download Drawing(s)
Part Number Description PDF DWG/ZIP
KMJA5Exx KMJ Category 5e Jack, Universal 568A/B Wiring Download Download Quick Ship
KMJA5E50xx KMJ Category 5e Jack, Universal 568A/B Wiring, 50 Pack Download Download
KMJVL8A/Bxx KMJ Category 5e Leadframe Jack, Universal 568A/B Wiring Download Download
KMJVL8A/B50xx KMJ Category 5e Leadframe Jack, Universal 568A/B Wiring, 50 Pack Download Download
KMJVL8A/B02S KMJ Category 5e Leadframe Shielded Jack, Universal 568A/B Wiring Download Download
PA8109 Termination Tool, KMJ/UMJ Modular Jack Download n/a
Replace "xx" with color code from chart to the right.

Related Documents

Please Login Here to access additional documents.
