Category 5e – Modular Patch Cords

Installation zone RECOMMENDATION
1
1
1
1

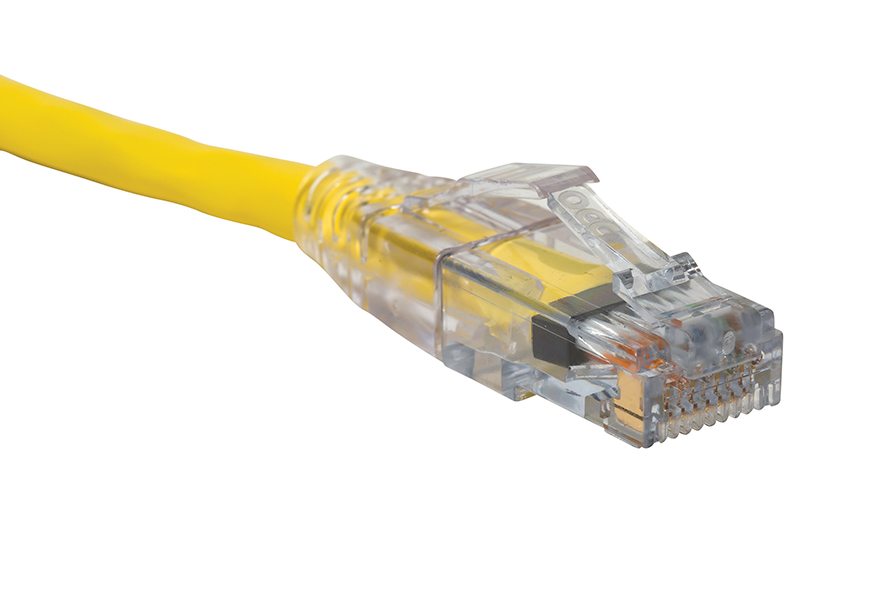

OCC's Category 5e patch cords are manufactured to strict standards and individually performance tested to comply with TIA 568-C.2 component performance requirements. After all, OCC's test methods for patch cord component testing methods have helped form the basis for the Category 5e standards. This commitment to guaranteed performance is what makes our Category 5e patch cords an excellent addition to any OCC Category 5e structured cabling system.

Applications

  • 1000BASE-T Gigabit Ethernet
  • 100BASE-TX Fast Ethernet
  • 10BASE-T Ethernet
  • Broadband Video
  • 155/622 Mbps ATM
  • Analog Voice/VOiP
  • PoE+
  • All applications developed for operation over Category 5e or class D cabling

Features

  • 100% component performance tested
  • Exceeds TIA 568-C.2 Category 5e requirements
  • Customizable lengths and colors available
  • Compliant with Power over Ethernet (PoE+) requirements
  • Insulation resistance- 500MΩ minimum
  • Dielectric withstand- 1000VAC RMS, AC 60Hz or 1414 VDC
  • DC current rating- 1.5 A per conductor at 20°C ambient de-rated to 0.5 A at 60°C ambient

Specifications

Download Drawing(s)
Part NumberDescriptionPDFDWG/ZIP
PC5EBxxyyCategory 5e Patch Cord Without Boot Download n/a
PC5EBxxByyCategory 5e Patch Cord with Boot Download Download
IPC5ExxxByyCategory 5e Patch Cord with Boot, UTP, PVC Class D n/a n/a
IPC5ExxxByyLZHCategory 5e Patch Cord with Boot, UPT, LSZH, Class D n/a n/a
ISPC5ExxxByyCategory 5e Patch Cord with Boot, Shielded, PVC, Class D n/a n/a
ISPCExxxByyLZHCategory 5e Patch Cord with Boot, Shielded, LSZH, Class D n/a n/a
*Replace "xx" with length in feet; replace "xxx" with length in meters; replace "yy" with color code – (01) yellow, (06) gray.  Additional colors available. Contact OCC for ordering information. ** Ex: =IPC5E003B06 - Category 5e patch cord with boot, 3 meters, gray
