Category 5e – UMJ Jacks

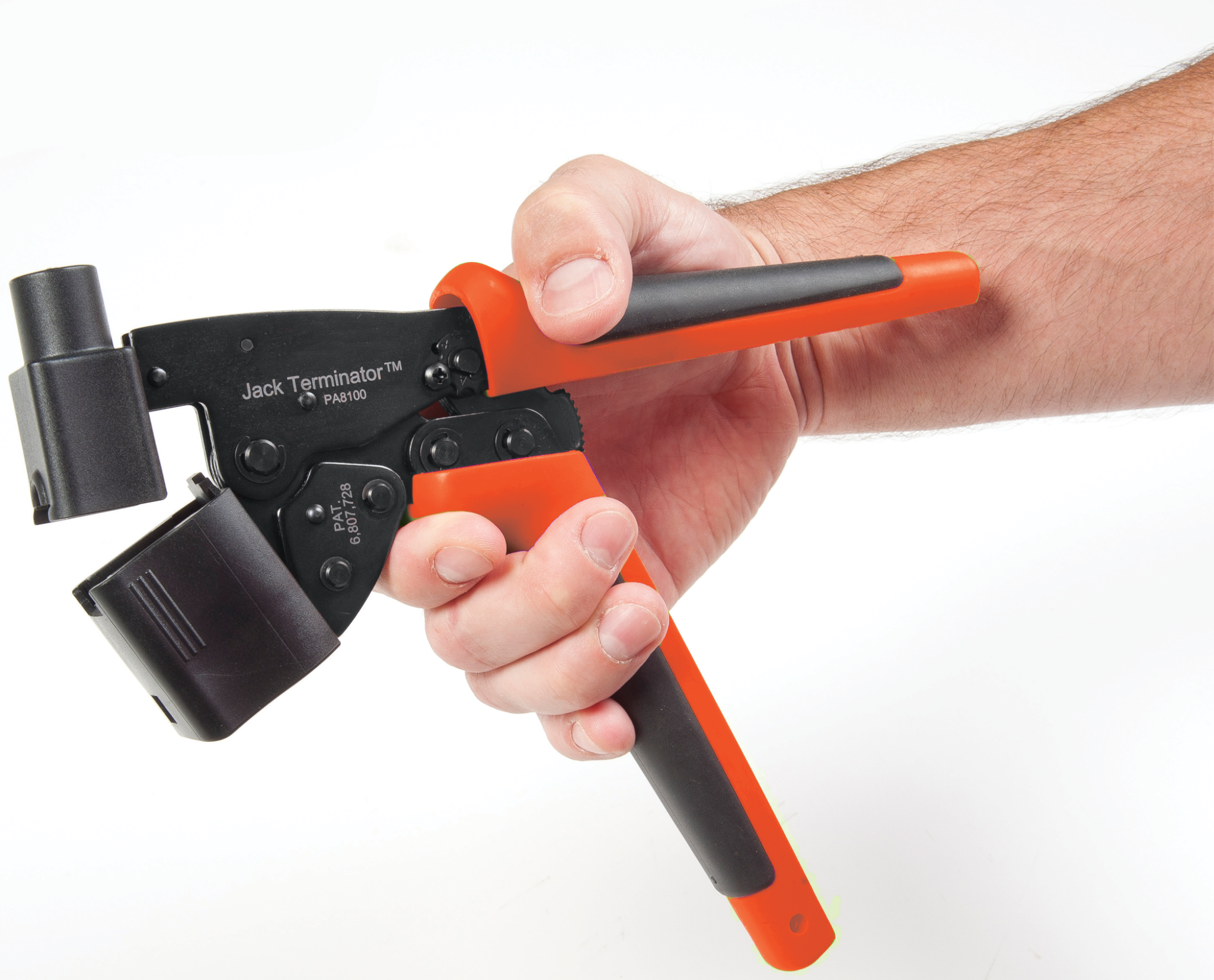

Installation zone RECOMMENDATION
1
1
1
1

OCC's Category 5e Bezel jacks utilize our patented PC Board technology to exceed the TIA 568-C.2 Cat 5e requirements with headroom to spare. For a more cost effective solution, OCC also offers a Leadframe Bezel jack that utilizes our patented Leadframe technology. 110-style punch downs accommodate 22 AWG sold through 26 AWG solid and 24 AWG stranded conductors and each OCC jack offers universal T568A/B wiring and performance enhancements to exceed industry standards.

Applications

  • 1000BASE-T Gigabit Ethernet
  • 100BASE-TX Fast Ethernet
  • 10BASE-T Ethernet
  • Broadband Video
  • 155/622 Mbps ATM
  • Analog Voice/VOiP
  • PoE+

Features

  • Meets IEC 60603-7 requirements
  • 110-style IDC contacts meet TIA 568-C.2 requirements
  • Backward compatible, Cat 3, and Cat 5 compliant
  • Full 6-position, modular plug compatible with bezel
  • Universal T568A/B wiring for easy installation
  • Available with 20 labeling and color options
  • Secure mounting locks jack into faceplate
  • Fits all OCC UMJ faceplates and surface mount boxes
  • Compliant with Power over Ethernet (PoE+) requirements
  • Insulation resistance- 500MΩ minimum
  • Dielectric withstand- 1000 VAC RMS, AC 60Hz or 1414 VDC
  • DC current rating- 1.5 A per conductor at 20°C ambient de-rated to 0.75 A at 60°C
  • One piece stuffer cap included

Specifications

Download Drawing(s)
Part NumberDescriptionPDFDWG/ZIP
UMJA5EUMJ Category 5e Jack, Universal 568A/B Wiring, No Bezel Download Download
UMJA5ExxUMJ Category 5e Jack, Universal 568A/B Wiring, Colored Bezel Download Download
UMJA5E50xxUMJ Category 5e Jack, Universal 568A/B Wiring, 50 Pack Download Download
UMJVL8A/BUMJ Category 5e Leadframe Jack, Universal 568A/B Wiring, No Bezel Download Download
UMJVL8A/BxxUMJ Category 5e Leadframe Jack, Universal 568A/B Wiring, Colored Bezel Download Download
UMJVL8A/B50xxUMJ Category 5e Leadframe Jack, Universal 568A/B Wiring, 50 Pack Download Download
Replace "xx" with color code from chart to the right.
