Category 6 – Patch Panels

Installation zone RECOMMENDATION
1
1
1
1

When Category 6 was introduced to the market, OCC brought a product offering that was designed to exceed industry expectations and surpass the governing standards. We created Category 6 connectivity components that offered patented technology and guaranteed bandwidth performance. OCC's Category 6 patch panels were no exception. Developed to offer true performance, our Category 6 patch panels are truly standards compliant.

Applications

  • 2.5G/5GBASE-T Gigabit Ethernet
  • 1000BASE-T Gigabit Ethernet
  • 100BASE-TX Fast Ethernet
  • 10BASE-T Ethernet
  • 155/622 Mbps ATM
  • Broadband Video
  • Analog Voice/VOiP
  • PoE, PoE+, and PoE++
  • All other applications developed for operation over Category 6 cabling

Features

  • Category 6 component compliant
  • 610 punch-down block
  • ETL verified to TIA-568-C.2 Category 6
  • Power-safe modular jack contacts
  • OCC patented PCB technology
  • Backward compatible; Cat 3 & 5e
  • Mounting flexibility
  • Removable cable strain-relief bar
  • Patch panels are available in both flat and angled configurations
  • All-steel panel ensures panel rigidity and reliable terminations
  • Universal T568A/B wiring for easy installation
  • 6-port component modules
  • Write-on label fields
  • Rigid box-section panel construction
  • Supports all IEEE Power over Ethernet (PoE) standards
  • Insulation resistance: 500MΩ minimum
  • Dielectric withstand: 1000 VAC RMS or 1414 VDC
  • DC current rating: 1.5 A per conductor at 20°C ambient de-rated to 0.75 A at 60°C ambient

Specifications

Download Drawing(s)
Part NumberDescriptionPDFDWG/ZIP

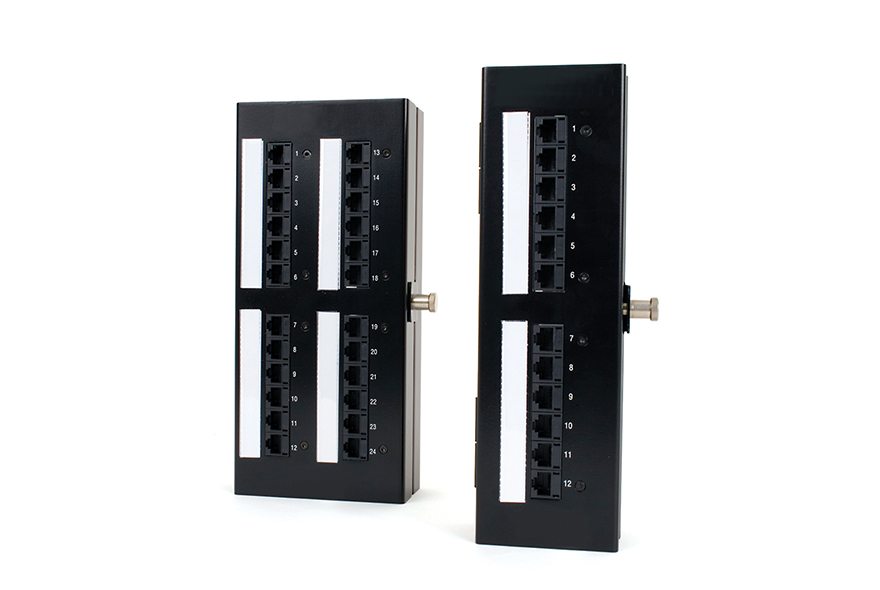

PP12SIXWall Mount Patch Panel, 568A/B Wired, 12-port, 89D Bracket Download Download
PP1288/110A6Wall Mount Patch Panel, 568A/B Wired, 12-port Download Download
PP2488/110A6Wall Mount Patch Panel, 568A/B Wired, 24-port Download Download
DCC1288/110SIXRack Mount Patch Panel, 568A/B Wired, 12-port, 1RU Download Download
DCC2488/110SIXRack Mount Patch Panel, 568A/B Wired, 24-port, 1RU Download Download
DCC4888/110SIXRack Mount Patch Panel, 568A/B Wired, 48-port, 2RU Download Download
DCC2488/110SIX-SRack Mount Patch Panel, 24-port, KMJ Shielded Jacks, 1RU Download Download
DCC4888/110SIX-SRack Mount Patch Panel, 48-port, KMJ Shielded Jacks, 2RU Download Download
ACC2488/110SIXRack Mount Angled Patch Panel, 568A/B Wired, 24-port, 1RU Download Download
ACC4888/110SIXRack Mount Angled Patch Panel, 568A/B Wired, 48-port, 2RU Download Download

Related Documents

    Please Login Here to access additional documents.
