DIN Rail System Enclosures

Installation zone RECOMMENDATION
1
1
1
1

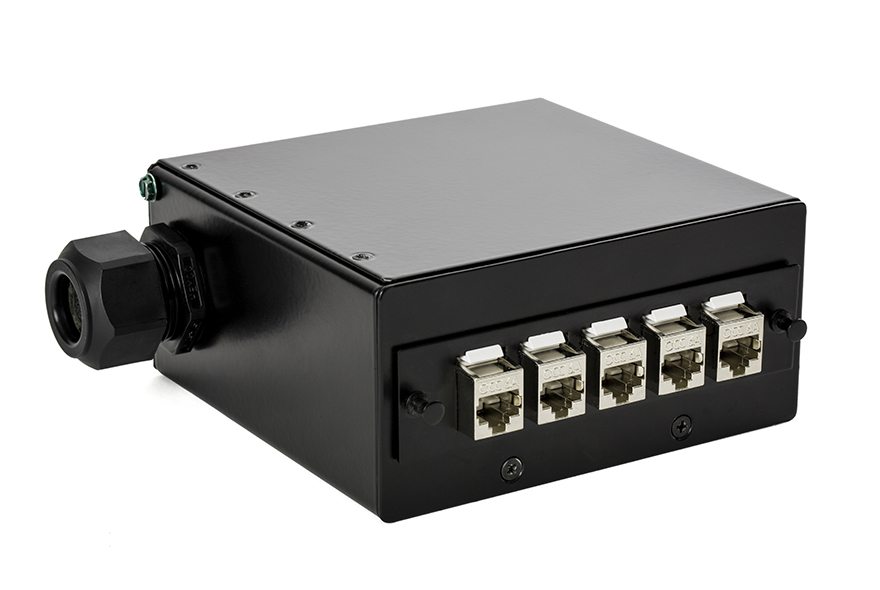

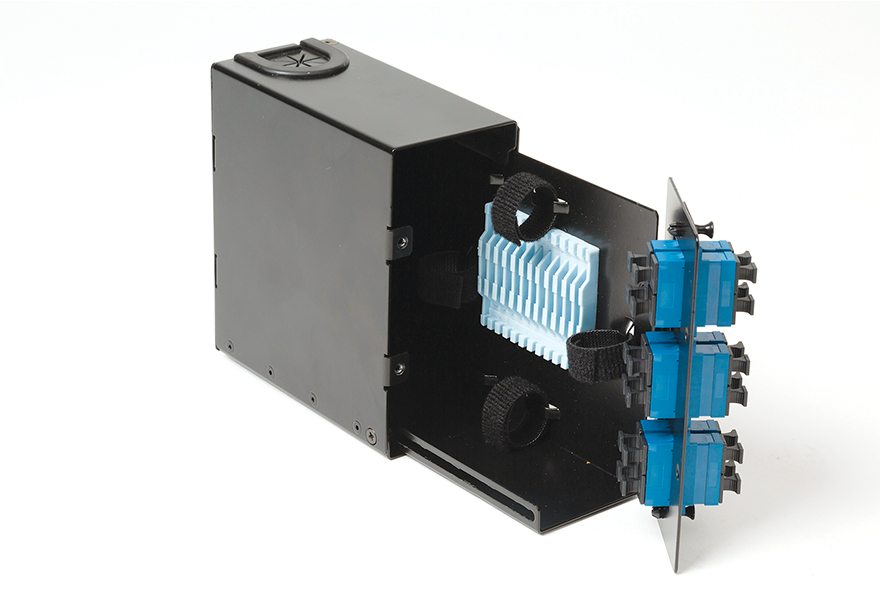

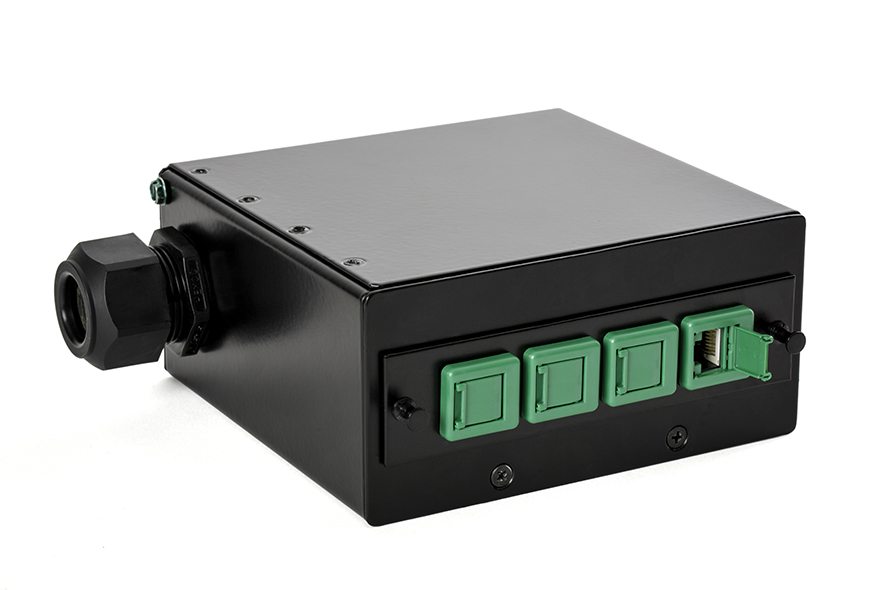

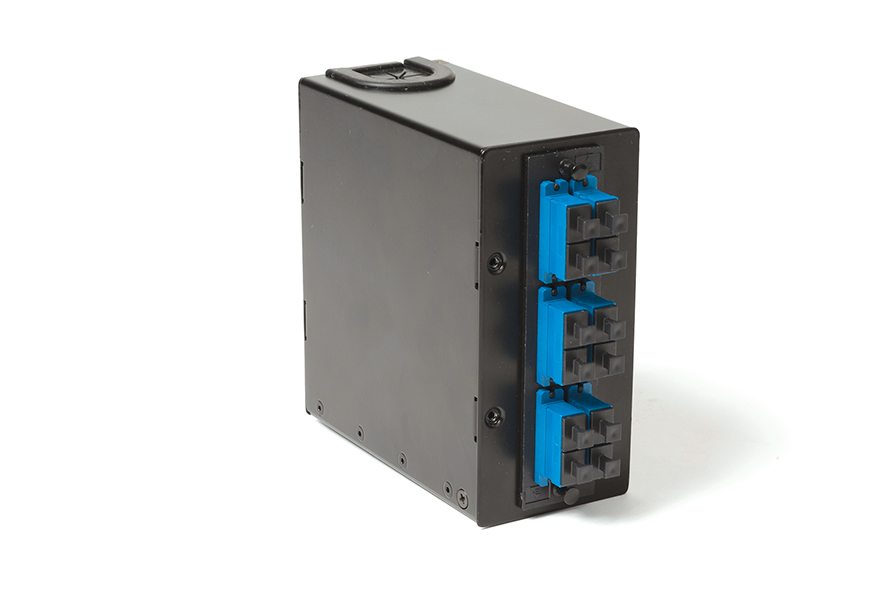

OCC’s line of DIN Rail fiber optic and copper enclosures offer a rugged and versatile product line ideal for secure terminations within industrial settings. Utilizing OCC’s existing 600 series adapter plates, the DTC product family is based on a proven design that offers versatility and ease of installation. The enclosures can accommodate one or two OCC adapter plates and include a splice block for fusion splicing up to 12 fibers. Velcro cable ties for managing proper cable bend radius are also included. The DIN Rail enclosure features a fixed outer housing and a sliding inner housing with a hinged door providing access to the terminated cable. A capture screw secures the inner housing and can be removed in order to detach the inner housing completely from the enclosure. Upgrades or modifications to the existing network structure can be made as easily as changing an adapter plate.

In addition, the DIN Rail enclosures are manufactured with a robust all metal construction that protects the cable terminations in even the most adverse environmental conditions. Its compact size allows for minimum space requirements when installed in control cabinets. And most importantly, this uncomplicated family of enclosures for industrial communications fits nicely with the entire line of fiber optic connectivity components and cable from OCC.

Applications

  • Industrial Automation
  • Transportation
  • Oil & Gas
  • Power Generation and Transmission
  • Mining

Features

  • Compact size for limited space requirements
  • Quick snap-on installation onto any standard 35mm DIN rail
  • Sliding inner housing with hinged door and capture screw simplifies installations
  • All-metal construction ensures durable and reliable terminations
  • Interior cable management for proper bend radius requirements
  • Options for cable entry and exit grommets or glands
  • Grommet hole size 1” diameter
  • Cable gland can accommodate 0.250 - 0.485” cable OD
  • Grounding screws included for equipment protection
  • Can be kitted, pre-loaded or factory pre-terminated

Specifications

Download Drawing(s)
Part NumberDescriptionPDFDWG/ZIP
DTC1APDIN Rail Enclosure, Accommodates 1 Adapter Plate, Cable Entry Grommet, Black, Empty Download Download
DTC2APDIN Rail Enclosure, Accommodates 2 Adapter Plates, Cable Entry Grommet, Black, Empty Download Download
DTC1APGDIN Rail Enclosure, Accommodates 1 Adapter Plate, Liquid Tight Cable Gland, Black, Empty Download Download
DTC2APGDIN Rail Enclosure, Accommodates 2 Adapter Plates, Liquid Tight Cable Gland, Black, Empty Download Download
Make sure to order the adapter plate to populate your DIN Rail Enclosure.

Instruction Sheets

    Related Documents

      Please Login Here to access additional documents.

      Talk to a knowledgeable OCC Expert that can find or customize a product to fit your specifications. 800-622-7711
