G-Series Subgrouping – Riser Rated Tray Cables

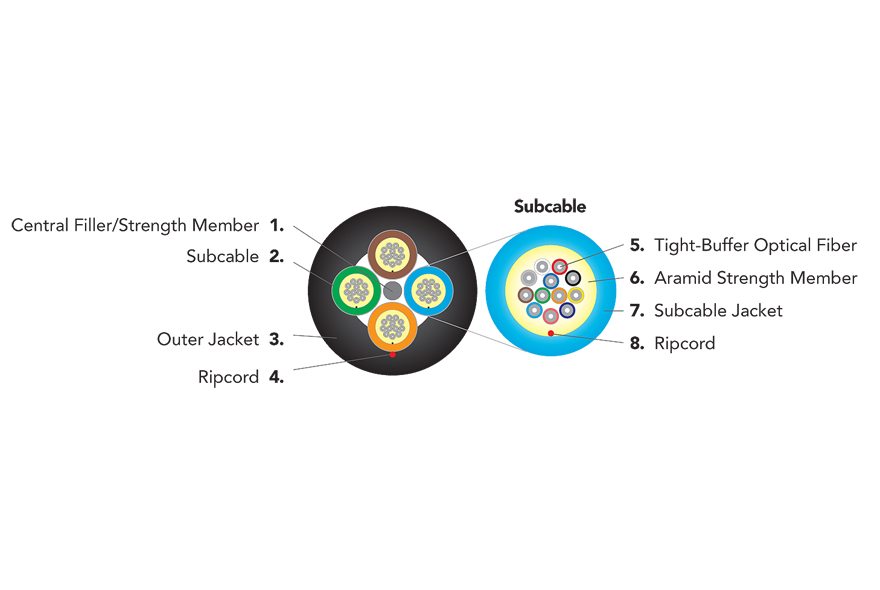

Installation zone RECOMMENDATION1
1
1
1
- Ideal for installations requiring a rugged and reliable cable design where maximum mechanical and environmental protection is necessary
- Typical industrial uses are factory automation, power generation and other utilities, oil and gas refining, and surface mining
- Ideal for installations requiring high fiber count cables or that require 6 or 12-fiber subunits
Features
- Fiber Optic tray Cable: Suitable for use in cable trays
- Best design for multimode and single-mode fiber hybrid/composite cables
- Design allows multi-fiber subcables to be routed to multiple locations such as wiring racks and closets
- Meets all applicable standards for Impact & Crush Resistance (CSA C22.2 No. 230)
- Color-coded subcables are easy to identify for improved cable management in routing and termination
- Designed for Indoor/Outdoor installations, including cable trays
- 12-144-fiber configurations are available with 6-12 fibers per subcable
- Low-temperature PVC outer jacket (J material) provides excellent performance and flexability at low temperatures
- Jacket is UV, fungus and water resistant
- Wide operating temperature range of -50°C to +75°C
- Core-Locked™ jacket prevents cable from flattening and the jacket from wrinkling in tight bends
- Permits pulling with direct attachment of wire mesh grip; no need to access inner aramid strength members
- Improved crush and tear resistance
- Contains 25% more material than conventional jackets
- High crush and tensile load ratings compares to similar tray service fiber optic cables
- Oil resistant for use in industrial applications
- UL listed in accordance with NEC section 770.179(b) for use in vertical runs in building riser shafts or from floor to floor
- Designed to exceed the flammability requirements of Chapter 8 IEEE 383
Characteristics
| Characteristic | PVC Outer Jacket | Low-Temperature PVC Outer Jacket |
|---|---|---|
| Operating Temp | -40°C to +85°C | -50°C to +75°C |
| Storage Temp | -55°C to +85°C | -55°C to +85°C |
| Install Temp | -10°C to +60°C | -30°C to +60°C |
| Flame Retardancy | UL listed type OFNR (UL 1666) and FT4 (UL 1685) | UL listed type OFNR (UL 1666) |
| Crush Resist | 2100 N/cm | 2100 N/cm |
| Impact Resist | 1500 impacts | 1500 impacts |
| Flex Resist | 2000 cycles | 2000 cycles |
| Jacket Type | D | J |
*6 Fiber Subunits = B; 12 Fiber Subunits = X
Standards
OCC Indoor/Outdoor tight-buffered fiber optic cables meet functional requirements of the following standards:
- UL 1666
- CSA C22.2 No. 232
- CSA C22.2 No. 230
- GR-409-CORE
- ICEA-S-104-696
- ICEA-S-83-596
- TIA-568
- TIA-598
Specifications
6-Fiber (4.5mm) Subcables
| Tensile Load | Minimum Bend Radius | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Fiber Count | Part Number | Spec Sheet | Diameter mm (in) |
Weight kg/km (lbs/1,000ft) |
Installation N (lbs) |
Operation N (lbs) |
Installation cm (in) |
Longer Term cm (in) |
|
| 12 | GB012J***9KR | Download Spec Sheet |
14.6 (0.57) |
221.0 (149.0) |
3,800 (850) |
1,200 (270) |
21.9 (8.6) |
14.6 (5.7) |
|
| 18 | GB018J***9KR | Download Spec Sheet |
14.6 (0.57) |
222.0 (149.0) |
4,700 (1,060) |
1,800 (400) |
21.9 (8.6) |
14.6 (5.7) |
|
| 24 | GB024J***9KR | Download Spec Sheet |
14.6 (0.57) |
223.0 (150.0) |
5,400 (1,260) |
1,800 (400) |
21.9 (8.6) |
14.6 (5.7) |
|
| 30 | GB030J***9KR | Download Spec Sheet |
15.6 (0.61) |
254.0 (171.0) |
7,500 (1,690) |
2,400 (540) |
23.4 (9.2) |
15.6 (6.1) |
|
| 36 | GB036J***9KR | Download Spec Sheet |
16.9 (0.67) |
297.0 (200.0) |
8,900 (2,000) |
2,850 (640) |
25.4 (10.0) |
16.9 (6.7) |
|
12-Fiber (5.5mm) Subcables
| Tensile Load | Minimum Bend Radius | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Fiber Count | Part Number | Spec Sheet | Diameter mm (in) |
Weight kg/km (lbs/1,000ft) |
Installation N (lbs) |
Operation N (lbs) |
Installation cm (in) |
Longer Term cm (in) |
|
| 24 | GX024J***9KR | Download Spec Sheet |
16.6 (0.65) |
274.0 (184.0) |
4,600 (1,030) |
1,500 (340) |
24.9 (9.8) |
16.6 (6.5) |
|
| 36 | GX036J***9KR | Download Spec Sheet |
16.6 (0.65) |
272.0 (183.0) |
5,900 (1,330) |
1,050 (440) |
24.9 (9.8) |
16.6 (6.5) |
|
| 48 | GX048J***9KR | Download Spec Sheet |
16.6 (0.65) |
270.0 (181.0) |
7,200 (1,620) |
2,400 (540) |
24.9 (9.8) |
16.6 (6.5) |
|
| 60 | GX060J***9KR | Download Spec Sheet |
18.4 (0.72) |
323.0 (217.0) |
9,500 (2,140) |
3,150 (710) |
27.6 (10.9) |
18.4 (7.2) |
|
| 72 | GX072J***9KR | Download Spec Sheet |
20.1 (0.79) |
380.0 (255.0) |
11,300 (2,540) |
3,750 (840) |
30.2 (11.9) |
20.1 (7.9) |
|
| 84 | GX084J***9KR | Download Spec Sheet |
21.8 (0.86) |
443.0 (298.0) |
13,100 (2,950) |
4,350 (980) |
32.7 (12.9) |
21.8 (8.6) |
|
| 96 | GX096J***9KR | Download Spec Sheet |
23.6 (0.93) |
513.0 (345.0) |
14,900 (3,350) |
4,950 (1,110) |
35.4 (13.9) |
23.6 (9.3) |
|
| 108 | GX108J***9KR | Download Spec Sheet |
25.7 (1.01) |
608.0 (409.0) |
18,200 (4,090) |
6,000 (1,350) |
38.6 (15.2) |
25.7 (10.1) |
|
| 120 | GX120J***9KR | Download Spec Sheet |
27.7 (1.09) |
707.0 (475.0) |
19,500 (4,380) |
6,450 (1,450) |
41.6 (16.4) |
27.7 (10.9) |
|
| 132 | GX132J***9KR | Download Spec Sheet |
28.1 (1.11) |
669.0 (450.0) |
20,800 (4,680) |
6,900 (1,550) |
42.2 (16.6) |
28.1 (11.1) |
|
| 144 | GX144J***9KR | Download Spec Sheet |
28.1 (1.11) |
668.0 (449.0) |
22,100 (4,970) |
7,350 (1,650) |
42.2 (16.6) |
28.1 (11.1) |
|
