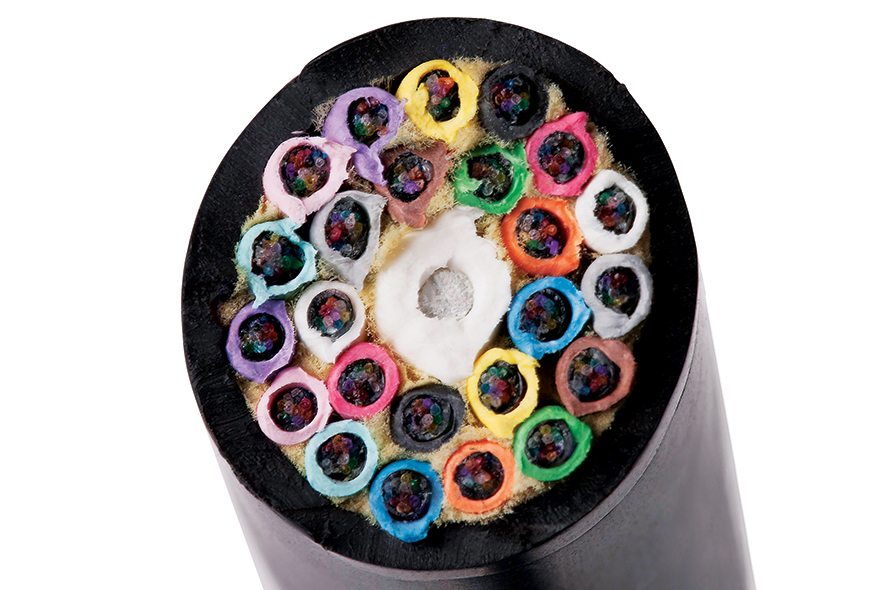

HC-Series – MSHA-Rated Mining Cables

Installation zone RECOMMENDATION
1
1
1
1

OCC Indoor/Outdoor tight-buffered MSHA-rated mining cables meet or exceed the functional requirements of the following standards:

  • ICEA –S-83-596
  • ICEA-S-104-696
  • GR-409-CORE
  • TIA-568
  • TIA-598
  • Part 7, Subpart K of Title 30 Code of Federal Regulations

Applications

  • Can be installed in locations that require compliance with MSHA’s Part 7, Subpart K of Title 30 of the  Code of Federal Regulations (CFR) signal cables
  • Suitable for permanent installations

Features

  • Flame-retardant – MSHA-approved to Part 7, Subpart K of Title 30 Code of Federal Regulations
  • Ideal configuration for a single cable termination point requiring multiple fibers

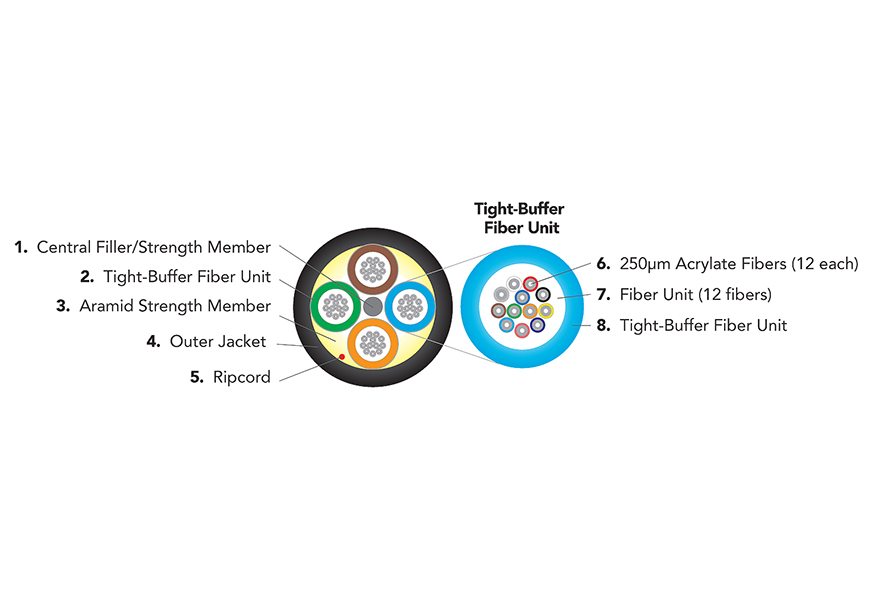

  • Rugged tight-buffer fiber unit construction
  • Cable materials are Indoor/Outdoor: UV, fungus and water resistant
  • The high-density breakout cables offer a >20% reduction in diameter and a >20% reduction in weight relative to conventional loose-tube cables, allowing for greater fiber density and cable packing within a duct
  • Core-Locked™ outer jacket design for installation survivability
  • Helically stranded core for greater flexibility and mechanical protection of the optical fiber units
  • Cable offers a cost savings by eliminating the need to splice outdoor cable to indoor cable at building entrance
  • Cable can be terminated with 900μm fanout kit for LC connectorization
  • Suitable for direct pulling with wire mesh grips

Characteristics

Characteristic
Operating Temp -40°C to +85°C -40°C to +85°C
Storage Temp -55°C to +85°C -55°C to +85°C
Install Temp -10°C to +60°C -10°C to +60°C
Flame Retardancy Part 7, Subpart K of Title 30 Code of Federal Regulations U.L. Listed Type OFNR (UL 1666)
Crush Resist 1,800 N/cm 1,800 N/cm
Flex Resist 2,000 cycles 2,000 cycles

Specifications

Direct MTP termination

Tensile Load Minimum Bend Radius
Fiber Count Part Number Part Number Configurator Diameter mm
(in)		 Weight kg/km
(lbs/1,000ft)		 Installation N
(lbs)		 Operation N
(lbs)		 Installation cm
(in)		 Longer Term cm
(in)
12 HC012D***AKS 5.5
(0.22) 		31.0
(21.0) 		2,700
(600) 		600
(135) 		8.3
(3.3) 		5.5
(2.2)
24 HC024D***AKS 7.6
(0.30) 		72.0
(48.0) 		2,700
(600) 		600
(135) 		11.4
(4.5) 		7.6
(3.0)
48 HC048D***AKS 7.6
(0.30) 		72.0
(48.0) 		2,700
(600) 		600
(135) 		11.4
(4.5) 		7.6
(3.0)
72 HC072D***AKS 9.0
(0.35) 		93.0
(63.0) 		2,700
(600) 		600
(135) 		13.5
(5.3) 		9.0
(3.5)
96 HC096D***AKS 10.3
(0.41) 		111.0
(75.0) 		2,700
(600) 		600
(135) 		15.5
(6.1) 		10.3
(4.1)
120 HC120D***AKS 11.7
(0.46) 		136.0
(91.0) 		2,700
(600) 		600
(135) 		17.6
(6.9) 		11.7
(4.6)
144 HC144D***AKS 11.7
(0.46) 		146.0
(98.0) 		2,700
(600) 		600
(135) 		17.6
(6.9) 		11.7
(4.6)
168 HC168D***AKS 11.7
(0.46) 		146.0
(98.0) 		2,700
(600) 		600
(135) 		17.6
(6.9) 		11.7
(4.6)
192 HC192D***AKS 12.9
(0.51) 		172.0
(116.0) 		2,700
(600) 		600
(135) 		19.4
(7.6) 		12.9
(5.1)
216 HC216D***AKS 12.9
(0.51) 		172.0
(116.0) 		2,700
(600) 		600
(135) 		19.4
(7.6) 		12.9
(5.1)
288 HC288D***AKS 15.0
(0.59) 		218.0
(147.0) 		2,700
(600) 		600
(135) 		22.8
(9.0) 		15.0
(5.9)

No direct MTP termination

Tensile Load Minimum Bend Radius
Fiber Count Part Number Part Number Configurator Diameter mm
(in)		 Weight kg/km
(lbs/1,000ft)		 Installation N
(lbs)		 Operation N
(lbs)		 Installation cm
(in)		 Longer Term cm
(in)
12 HC012D***CKS 5.5
(0.22) 		31.0
(21.0) 		2,700
(600) 		600
(135) 		8.3
(3.3) 		5.5
(2.2)
24 HC024D***CKS 7.6
(0.30) 		72.0
(48.0) 		2,700
(600) 		600
(135) 		11.4
(4.5) 		7.6
(3.0)
48 HC048D***CKS 7.6
(0.30) 		72.0
(48.0) 		2,700
(600) 		600
(135) 		11.4
(4.5) 		7.6
(3.0)
72 HC072D***CKS 9.0
(0.35) 		93.0
(63.0) 		2,700
(600) 		600
(135) 		13.5
(5.3) 		9.0
(3.5)
96 HC096D***CKS 10.3
(0.41) 		111.0
(75.0) 		2,700
(600) 		600
(135) 		15.5
(6.1) 		10.3
(4.1)
120 HC120D***CKS 11.7
(0.46) 		136.0
(91.0) 		2,700
(600) 		600
(135) 		17.6
(6.9) 		11.7
(4.6)
144 HC144D***CKS 11.7
(0.46) 		146.0
(98.0) 		2,700
(600) 		600
(135) 		17.6
(6.9) 		11.7
(4.6)
168 HC168D***CKS 11.7
(0.46) 		146.0
(98.0) 		2,700
(600) 		600
(135) 		17.6
(6.9) 		11.7
(4.6)
192 HC192D***CKS 12.9
(0.51) 		172.0
(116.0) 		2,700
(600) 		600
(135) 		19.4
(7.6) 		12.9
(5.1)
216 HC216D***CKS 12.9
(0.51) 		172.0
(116.0) 		2,700
(600) 		600
(135) 		19.4
(7.6) 		12.9
(5.1)
288 HC288D***CKS 15.0
(0.59) 		218.0
(147.0) 		2,700
(600) 		600
(135) 		22.8
(9.0) 		15.0
(5.9)

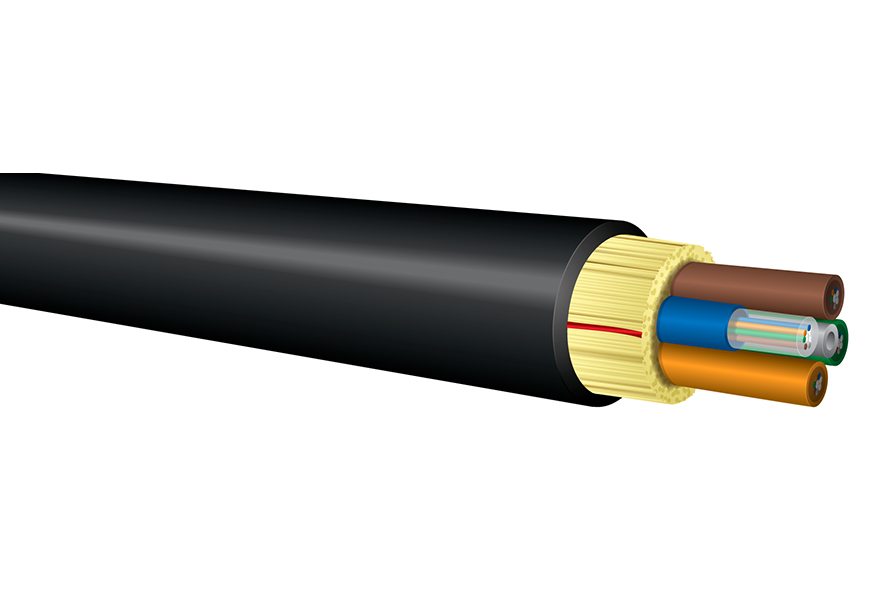

24–fiber MSHA-approved HC-Series cable using bend insensitive low water peak single-mode fiber, black jacket.
