Military Tactical Fiber Optic Cables for Extreme Environments

Installation zone RECOMMENDATION
1
1
1
1
  • Designed specifically for tactical/harsh environment connectors such as MIL-C-28876, MIL-C-38899 and other standard commercial connectors
  • Specifically designed for extreme environmental conditions- temperature, humidity, ice, fungus, and fluid immersion
  • Cables are used in DOD and MOD projects domestically and worldwide

Features

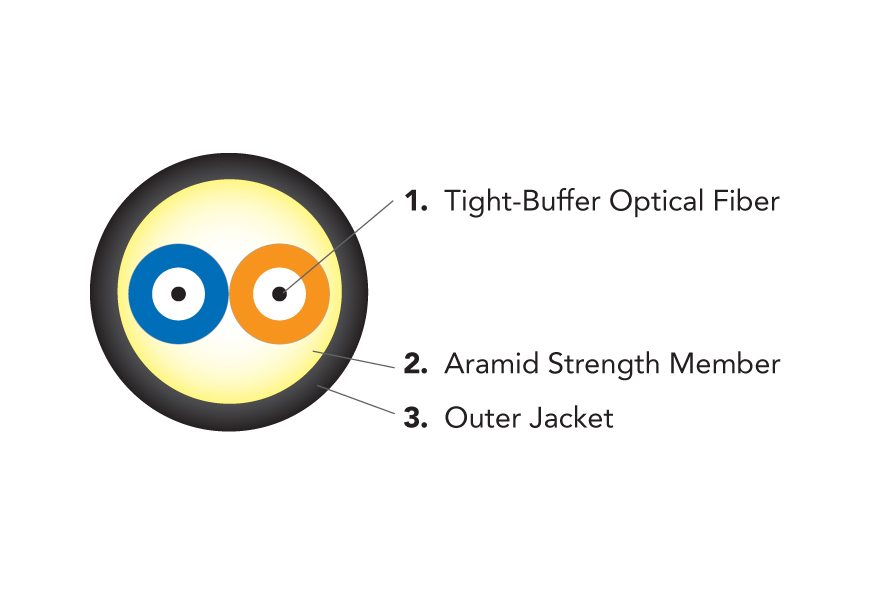

  • Rugged, tight-buffered fiber optic cable construction for the highest possible survivability in severe crush, impact, vehicle runover, deployment and retrieval conditions
  • Tested to the most demanding military tactical cable qualification standards
  • High tensile load capability for excellent termination strength with military tactical connectors
  • Available with radiation hardened or non-radiation hardened optical fibers
  • Based on more than 20 years of Optical Cable Corporation's military tactical fiber optic cable production

Specifications

Extreme Environment cables

Tensile LoadMinimum Bend Radius
Fiber CountPart NumberPart Number ConfiguratorDiameter mm
(in)
Weight kg/km
(lbs/1,000ft)
Installation N
(lbs)
Operation N
(lbs)
Installation cm
(in)
Longer Term cm
(in)

2RK981104-**-* Please Call OCC for ordering assistance. 5.8
(0.2)
31.0
(21.0)
1,800
(400)
600
(135)
8.7
(3.4)
5.8
(2.3)
4RK981104-**-* Please Call OCC for ordering assistance. 5.8
(0.2)
31.0
(21.0)
1,800
(400)
600
(135)
8.7
(3.4)
5.8
(2.3)
