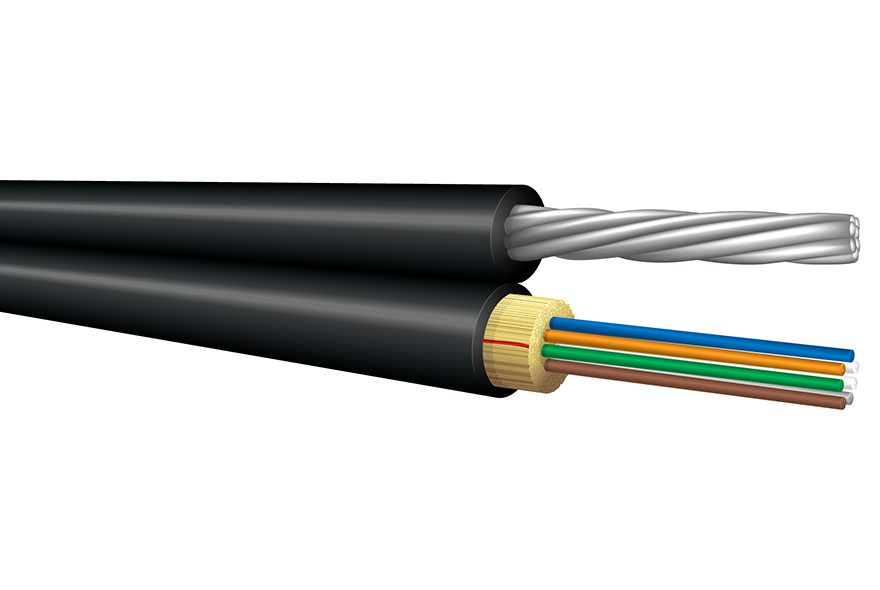

MX-Series – Figure-8 Messenger Cables

Installation zone RECOMMENDATION
1
1
1
1

Outdoor aerial installations along utility poles for cable television, telecom or other outside plant campus backbone applications without the need for cable lashing

Features

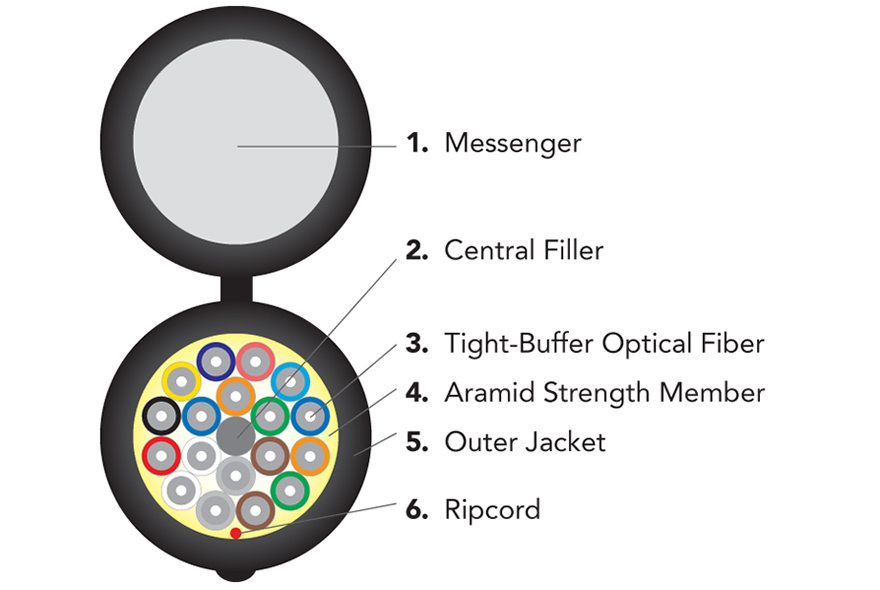

  • Figure-eight construction for use with standard messenger clamping and support hardware
  • Ideal for new installations; the figure-eight messenger cable reduces installation time and cost by approximately 50% compared to separate installation of a messenger wire and the lashing of the cable to the messenger
  • Wide operating temperature range of -40°C to +85°C
  • 1/4-inch galvanized messenger standard
  • Polyethylene outer cable jacket for excellent UV and weather resistance
  • Designed to the NESC requirements for light, medium and heavy storm loads                                                                                                       *All-dielectric messenger available upon request

Standards

OCC figure-eight tight-buffered fiber optic cables meet the functional requirements of the following standards:

  • ICEA-S-87-640
  • TIA-568
  • TIA-598

Specifications
