Pierside Cables

Installation zone RECOMMENDATION
1
1
1
1
  • Ship-to-shore communications in a fiber optic cable meeting the requirements of NAVSEA specification 7379173
  • Cables designed to be integrated with OCC's Pierside connectors designed to meet NAVSEA 7379171 specification

Features

  • Dual jacketed, 12-fiber cable with 4 single-mode and 8 multimode fibers is designed to the NAVSEA 7379173 specification
  • 2, 4, 6, and 8-fiber cables are designed with the NAVSEA 739173 specification as a guide. See the Cable Characteristics section for cable performance requirements
  • Available in hybrid single-mode and multimode fiber combinations, with fibers appropriate to the performance characteristics required by the application
  • Compatible with Pierside connectors as defined in NAVSEA 739171 (see OCC Pierside Connectors in the Military/Harsh Environment Connectors section 10.0 of the catalog)
  • Polyurethane jacket provides durability in harsh environments encountered on ships and docks
  • Polyurethane jacketed for abrasion, cut, crush, impact and chemical resistance
  • Second layer of aramid yarns provides the necessary strain-relief for multi-channel hermaphroditic connectors
  • Extremely strong, lightweight, rugged, survivable tight-buffered design

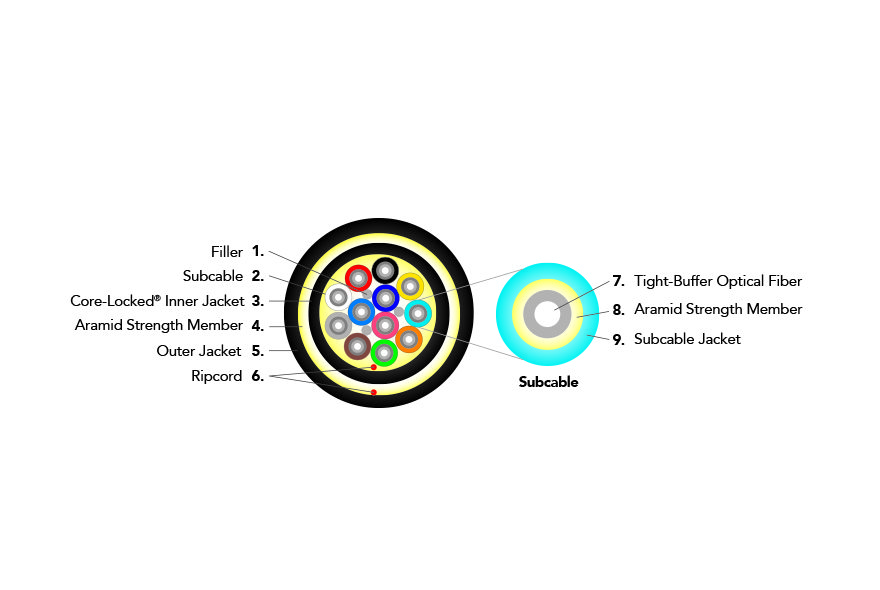

  • Breakout cable design utilizes individual color-coded subcables that protect each individual fiber and have their own aramid for capture to the crimp on the terminus when desired
  • Special jacket colors available to distinguish (at a glance) from other Pierside cables and utilities
  • Triple thickness fiber acrylate coating, three layers of aramid yard, and three individual cable jackets provide the ultimate in fiber protection
  • Suitable for daisy chain over-the-deck, on-the-pier, and through-the-ship nested ship deployments
  • Helically stranded cable core for flexibility, deployment survivability and exceptional mechanical protection for the optical fibers
  • Wide temperature ranges for adverse conditions
  • Excellent for use in deployment/retrieval applications
  • 2.0mm subcables standard
  • Compatible with OCC's Pierside hermaphroditic connectors in Section 10.

Characteristics

Characteristic Pierside
Operating Temp -55°C to +85°C
Storage Temp -70°C to +85°C
Crush Resist 440 N/cm
Impact Resist 200 impacts
Flex Resist 2000 cycles

Specifications

Pierside

Tensile Load Minimum Bend Radius
Fiber Count Part Number Part Number Configurator Diameter mm
(in)
Weight kg/km
(lbs/1,000ft)
Installation N
(lbs)
Operation N
(lbs)
Installation cm
(in)
Longer Term cm
(in)

2 B-002C***5KMPS Please Call OCC for ordering assistance. 11.3
(0.44)
112.0
(75.0)
6,400
(1,500)
1,200
(270)
17.0
(6.7)
11.3
(4.4)
4 B-004C***5KMPS Please Call OCC for ordering assistance. 11.3
(0.44)
112.0
(75.0)
6,400
(1,500)
1,200
(270)
17.0
(6.7)
11.3
(4.4)
6 B-006C***5KMPS Please Call OCC for ordering assistance. 12.2
(0.48)
125.0
(84.0)
6,400
(1,500)
1,200
(270)
18.3
(7.2)
12.2
(4.8)
8 B-008C***5KMPS Please Call OCC for ordering assistance. 13.6
(0.54)
153.0
(103.0)
6,400
(1,500)
1,200
(270)
20.4
(8.0)
13.6
(5.4)
12 B-012C***5KMPS Please Call OCC for ordering assistance. 14.5
(0.57)
168.0
(113.0)
6,400
(1,500)
1,200
(270)
21.8
(8.6)
14.5
(5.7)
Note: Single and double jacket products available for pier-side applications. Multimode, single-mode and hybrid designs available.
