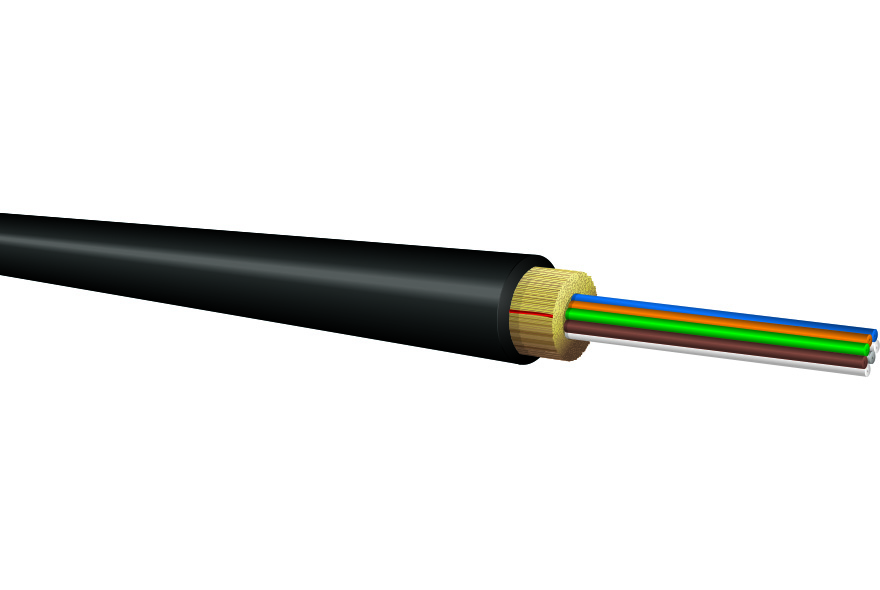

RM-Series Round Messenger Cables

Installation zone RECOMMENDATION
1
1
1
1
  • Outdoor aerial installations along utility poles for cable television, telecom or other outside plant campus backbone applications without the need for cable lashing or grounding

Features

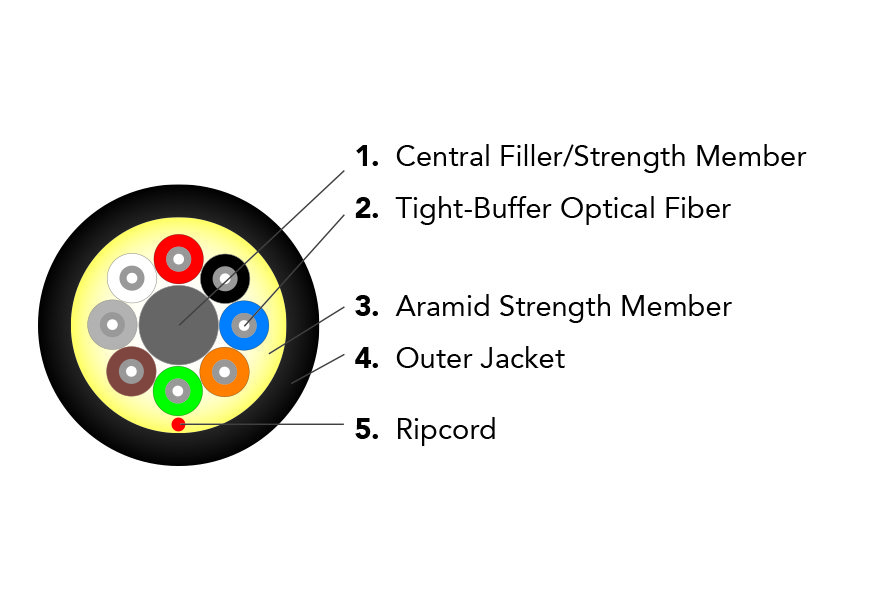

  • Lightweight, all-dielectric self-supporting (ADSS) construction is ideal for use near electrical power lines and in areas of frequent lightning
  • No messenger or lashing is required
  • Round cable construction for minimum wind drag and ice buildup
  • Aramid strength members reduce weight for longer span lengths
  • Wide operating temperature range of -55°C to +85°C
  • 900μm tight buffer eliminates the need for costly and time-consuming installation of fanout kits or pigtail splices, because connectors terminate directly to the fiber
  • Standard with Ultra-Fox Plus fiber (500μm)

Characteristics

Characteristic RM-Series Round Messenger
Operating Temp -55°C to +85°C
Storage Temp -70°C to +85°C
Install Temp -30°C to +60°C
Crush Resist 1800 N/cm
Impact Resist 1500 impacts
Flex Resist 2000 cycles

Standards

OCC Round Messenger tight-buffered fiber optic cables meet the functional requirements of the following standards:

  • IEEE 1222
  • GR-20-Core
  • ICEA-S-87-640
  • TIA-568
  • TIA-598

Specifications

Fiber Count Part Number Part Number Configurator Diameter mm
(in)
Weight kg/km
(lbs/1,000ft)
Max Rated Cable Tension N
(lbs)
NESC Heavy Meters
(ft)
NESC Medium Meters
(ft)
NESC Light Meters
(ft)

2 RM002X***5* Please Call OCC for ordering assistance. 8.5
(0.3)
52.0
(35.0)
12,800
(2,880)
69.0
(225.0)
127.0
(415.0)
230.0
(755.0)
4 RM004X***5* Please Call OCC for ordering assistance. 8.5
(0.3)
52.0
(35.0)
12,800
(2,880)
69.0
(225.0)
127.0
(415.0)
230.0
(755.0)
6 RM006X***5* Please Call OCC for ordering assistance. 8.7
(0.3)
55.0
(37.0)
12,800
(2,880)
69.0
(225.0)
125.0
(410.0)
226.0
(740.0)
8 RM008X***5* Please Call OCC for ordering assistance. 9.2
(0.4)
64.0
(43.0)
12,800
(2,880)
67.0
(220.0)
122.0
(400.0)
210.0
(690.0)
12 RM012X***5* Please Call OCC for ordering assistance. 9.8
(0.4)
70.0
(47.0)
12,800
(2,880)
66.0
(215.0)
119.0
(390.0)
204.0
(670.0)
18 RM018X***5* Please Call OCC for ordering assistance. 9.6
(0.4)
69.0
(46.0)
12,800
(2,880)
66.0
(215.0)
120.0
(395.0)
204.0
(670.0)
24 RM024X**5* Please Call OCC for ordering assistance. 10.1
(0.4)
79.0
(53.0)
12,800
(2,880)
64.0
(210.0)
117.0
(385.0)
194.0
(635.0)
36 RM036X***5* Please Call OCC for ordering assistance. 10.6
(0.4)
88.0
(59.0)
12,800
(2,880)
63.0
(205.0)
114.0
(375.0)
180.0
(600.0)
48 RM048X***5* Please Call OCC for ordering assistance. 11.6
(0.5)
108.0
(72.0)
12,800
(2,880)
61.0
(200.0)
108.0
(355.0)
168.0
(550.0)
Talk to a knowledgeable OCC Expert that can find or customize a product to fit your specifications. 800-622-7711
