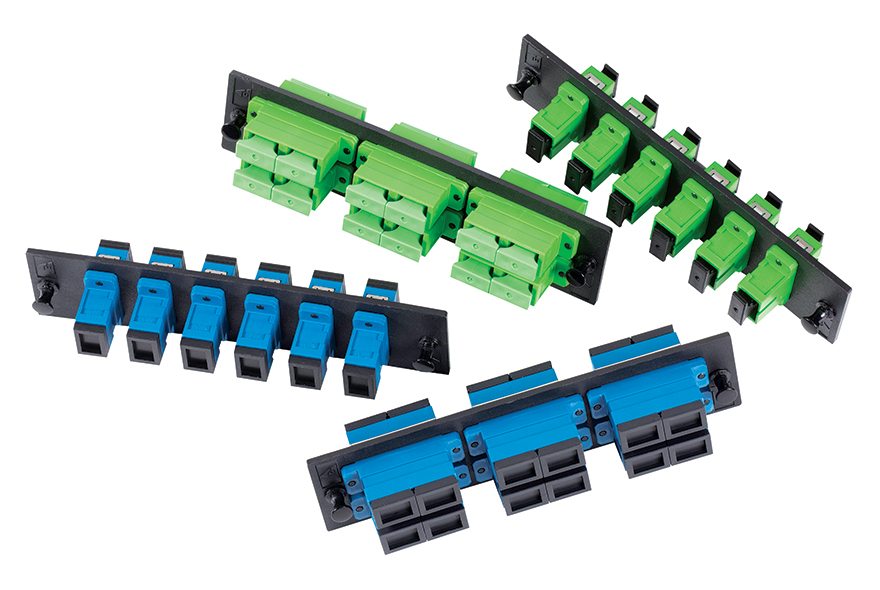

SC Adapter Plates

Installation zone RECOMMENDATION
1
1
1
1

To accompany all OCC fiber optic enclosures, Optical Cable Corporation developed snap-in fiber adapter plates that are
versatile enough to meet any fiber application and durable enough to withstand field installations. All OCC fiber adapter
plates guarantee performance parameters for the application specified, and can be preloaded into OCC fiber cabinets for
easy plug-and-play operability.

Features

  • Available in 6, 8, and 12-port fiber configurations
  • Panel options available include ST, SC, FC, MT-RJ, LC, and others
  • High-density applications can be reached through Dual and quad LC applications
  • Composite, metal, or ceramic sleeve options
  • Blank panels are available for use as dust covers
  • Plates are available for mounting bezel style jacks, creating a mixed-media environment

Specifications

Download Drawing(s)
Part NumberDescriptionPDFDWG/ZIP
616MMSCAdapter Plate, 6-port, SC, Multi-mode, Composite Sleeve Download Download
616SCAdapter Plate, 6-port, SC, Multi-mode/Single-mode, Metal Sleeve Download Download
616SMSCAdapter Plate, 6-port, SC, Single-mode, Ceramic Sleeve Download Download
616MMDSCAdapter Plate, 6-port, Dual SC, Multi-mode, Composite Sleeve Download Download
616DSCAdapter Plate, 6-port, Dual SC, Multi-mode/Single-mode, Metal Sleeve Download Download
616SMDSCAdapter Plate, 6-port, Dual SC, Single-mode, Ceramic Sleeve Download Download
616SCAPCAdapter Plate, 6-port, SC, Single-mode, Angled Polish, Composite Sleeve Download Download
818MMSCAdapter Plate, 8-port, SC, Multi-mode, Composite Sleeve Download Download
818SCAdapter Plate, 8-port, SC, Multi-mode/Single-mode, Metal Sleeve Download Download
818SMSCAdapter Plate, 8-port, SC, Single-mode, Ceramic Sleeve Download Download
818SCAPCAdapter Plate, 8-port, SC, Single-mode, Angled Polish, Composite Sleeve Download Download
6112MMDSCAdapter Plate, 12-port, Dual SC, Multi-mode, Composite Sleeve Download Download
6112DSCAdapter Plate, 12-port, Dual SC, Multi-mode/Single-mode, Metal Sleeve Download Download
6112SMDSCAdapter Plate, 12-port, Dual SC, Single-mode, Ceramic Sleeve Download Download
6112SMDSCAPCAdapter Plate, 12-port, Dual SC, Single-mode, Angled Polish, Ceramic Sleeve Download Download
616SC50GAdapter plate, 6-port, SC, Multimode, 50um, composite sleeve, 10 GbE Download Download
616DSC50GAdapter plate, 6-port, Dual SC, Multimode, 50um, composite sleeve, 10 GbE Download Download
6112DSC50GAdapter plate, 12-port, Dual SC, Multimode, 50um, composite sleeve, 10 GbE Download Download
