SC Xpress Ultra™ Fiber Connectors

Xpress Ultra Connectors

Home / Products / Fiber / SC Xpress Ultra™ Fiber Connectors

Installation zone RECOMMENDATION

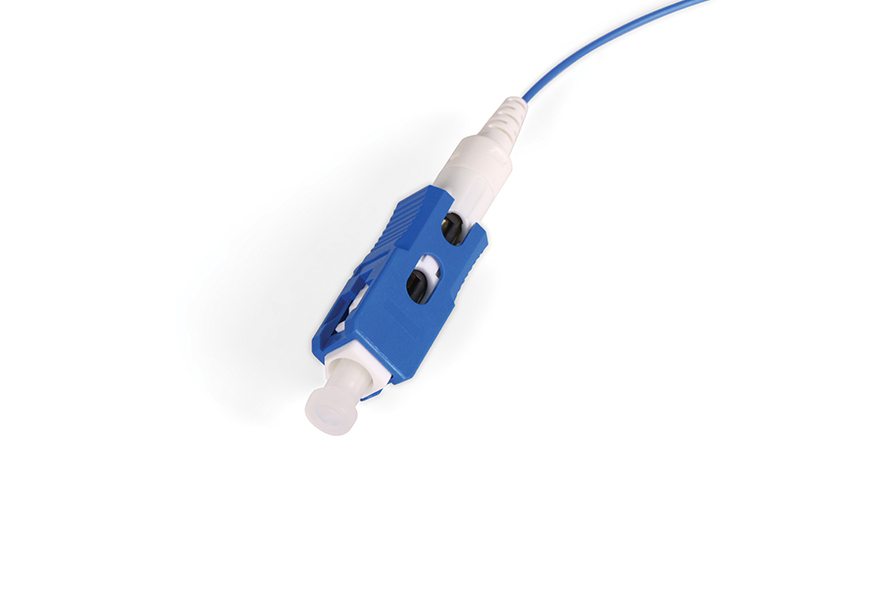

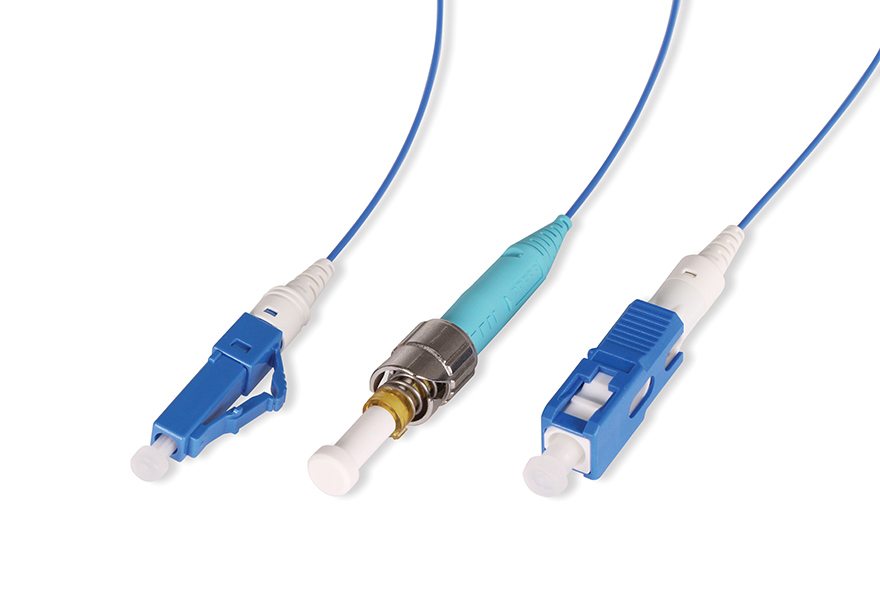

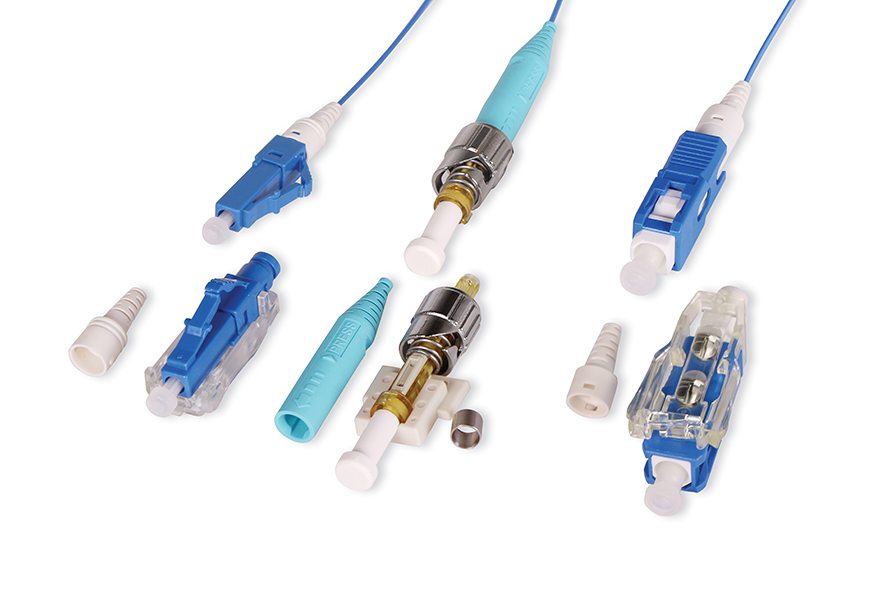

The OCC Xpress Ultra™ Fiber Connector is a pre-polished, pre-assembled connector compatible with standard SC and LC connectors. No epoxy is required as an internal mechanical grip effectively holds the fiber in place and can be installed in under 2 minutes. Without polishing or adhesives, the Xpress Ultra™ makes on-site installations quick and easy, diminishing the need for epoxy curing and hand polishing at the work site.

Features

Mechanical Splice (index matching gel)
Highly Stable & Reliable
Perfect Performance
Compact Package
RoHS Compliant
Finished Connector meets UL94-V0 Flammability Rated
TIA/EIA 568-C.3 Compliant

Characteristics

Characteristic

Specifications

Part Number	Description
RFC-SC6	Fiber Conn, Pre-Polished, SC, 62.5, 250/900
RFC-SC5	Fiber Conn, Pre-Polished, SC, OM3/OM4, 250/900
RFC-SC8	Fiber Conn, Pre-Polished, SC, SM, 250/900
RFC-SCAPC	Fiber Conn, Pre-Polished, SC, APC, 250/900
RFC-SC6-2/3MM	Fiber Conn, Pre-Polished, SC, 62.5, 2/3mm
RFC-SC5G-2/3MM	Fiber Conn, Pre-Polished, SC, OM3/OM4, 2/3mm
RFC-SC8-2/3MM	Fiber Conn, Pre-Polished, SC, SM, 2/3mm
RFC-SCAPC-2/3MM	Fiber Conn, Pre-Polished, SC, APC, 2/3mm
