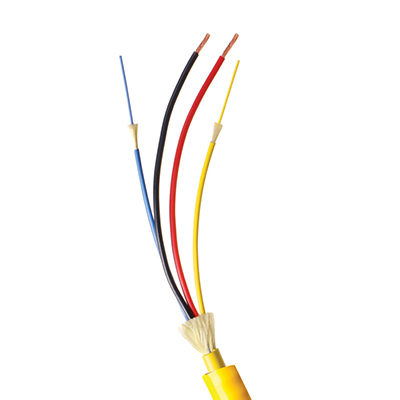

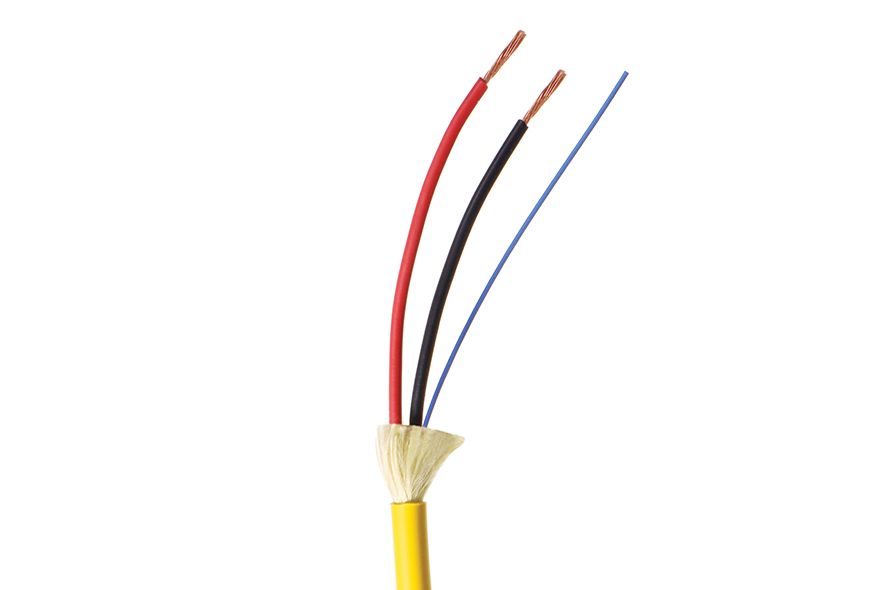

SMPTE-Plenum Rated – Broadcast Cables

Installation zone RECOMMENDATION
1
1
1
1
  • Permanent installations where UL Riser or Plenum Rating is required
  • Connects cameras to fixed wall box connections
  • Riser is fully SMPTE 311 compliant
  • Plenum is compatible with SMPTE 311 Standard (O.D. smaller than 9.2, therefore not fully compliant)

Features

  • SMPTE 311 Compatible (O.D. smaller than 9.2, therefore not fully compliant)
  • Plenum rated PVDF jacket
  • 145µm acrylate primary buffer on fiber
  • Jacketed steel central strength member
  • Cotton filler and nylon overwrap help minimize cable migration during flexing
  • 98% braided shield coverage

Specifics

  • 2 Fiber count
  • PN: CX008HBAA9KP
  • Diameter: 6.9 mm (0.27 in)
  • Weight: 121 kg/km (81 lbs/1000 ft)
  • Minimum Bend radius: 6.9 cm (2.7 in)

Specifications

Download Drawing(s)
Part NumberDescriptionPDFDWG/ZIP
CX008HBAA9KP Download n/a

Instruction Sheets

    Related Documents
