SMPTE-Riser Rated, with Waterblocking Tape – Broadcast Cables

Installation zone RECOMMENDATION
1
1
1
1
  • Offering the durability you expect from OCC, these new SMPTE cables allow you to source all your connection needs from one place. The TACTICAL, LSZH, FLEX, and Riser all utilize the OCC Ultra-Fox™ Plus deployable buffer system with the combination of a triple thickness 500µm diameter acrylate coating together with a hard elastomer 900µm tight buffer for maximum fiber protection.
  • Permanent Installations Where UL Riser is Required
  • Connects Cameras to Fixed Wall Box Connections

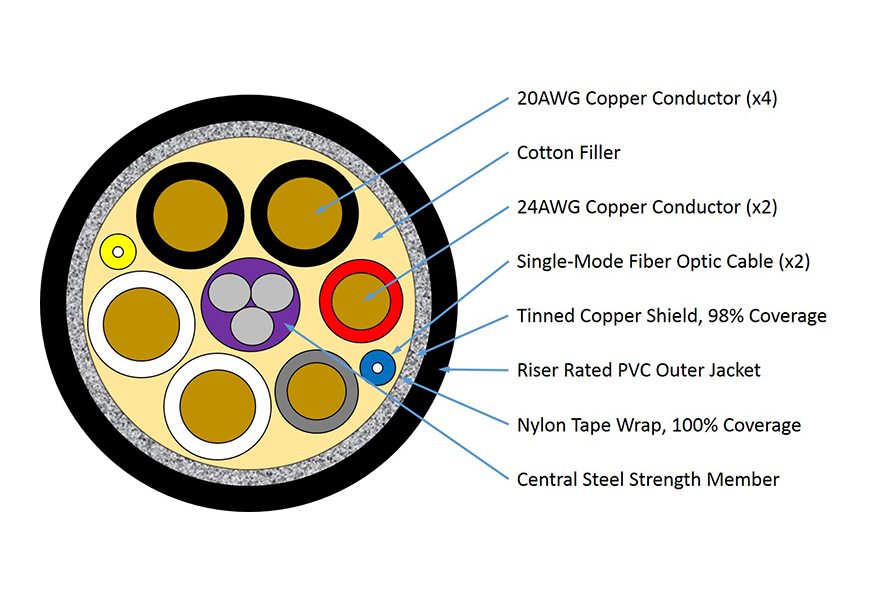

Features

  • UL Riser Rated
  • Fully SMPTE 311 Compliant
  • Riser Rated PVC Jacket
  • 500µm Acrylate Primary Buffer on Fiber for Added Durability – Same Fiber as is Used in OCC’s Military Grade Products!
  • Jacketed Steel Central Strength Member
  • Cotton Filler and Nylon Over-Wrap Help Minimize Cable Migration During Flexing
  • 98% Braided Shield Coverage

Specifics

  • 2-Fiber Count
  • PN: C-008HBAA5KR
  • Diameter: 9.2 mm (0.36 in)
  • Weight: 144 kg/km (97 lbs/1000 ft)
  • Minimum Bend Radius: 9.2 cm (3.6 in)

Specifications

Download Drawing(s)
Part Number Description PDF DWG/ZIP
CX008HBWA9KR Download n/a

Instruction Sheets

Related Documents

Please Login Here to access additional documents.

Talk to a knowledgeable OCC Expert that can find or customize a product to fit your specifications. 800-622-7711
