Xpress Fiber Optic Connectors

Installation zone RECOMMENDATION
1
1
1
1

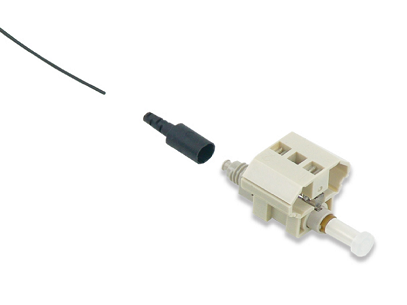

OCC’s Xpress Fiber Connectors are the new generation in field-installable fiber terminations. These connectors eliminate the need for messy epoxies and expensive tools by offering a pre-polished solution that can be installed in minutes. Xpress Connectors have a pre-stubbed factory-polished ferrule that joins to the fiber using a precise mechanical alignment and a special low-loss index matching gel. Each connector comes with a specially designed clip that holds the clamping devices open for the fiber to be inserted. Once the fiber is inserted, squeeze the clip to release the blades, remove clip and discard.

Features

  • Available for single-mode and multimode fibers and options of SC, ST, and LC termination styles
  • Easy to assemble
  • No expensive tools or epoxy required
  • No polishing required
  • Fiber can be reinstalled
  • Meets TIA/EIA 568 performance requirements
  • All connectors include 900μm boot – 2mm and 3mm boots sold separately

Specifications

Download Drawing(s)
Part NumberDescriptionPDFDWG/ZIP

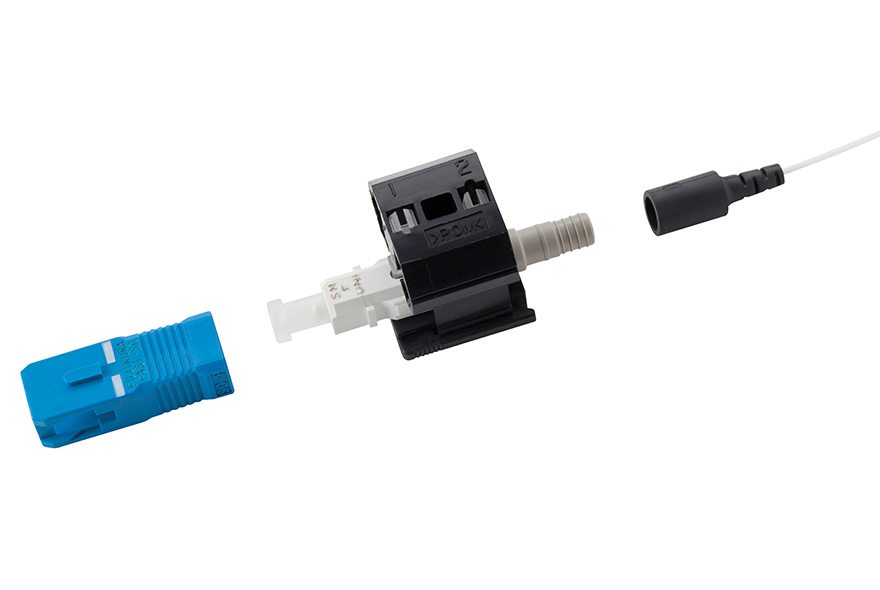

FXC-SCx-6Xpress SC Connector, 6-pack Download Download

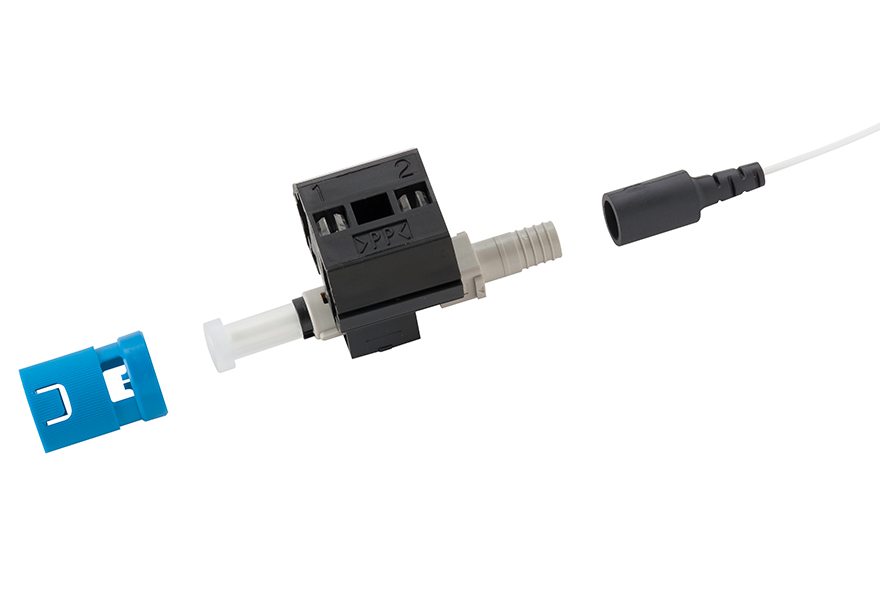

FXC-STx-6Xpress ST Connector, 6-pack Download Download

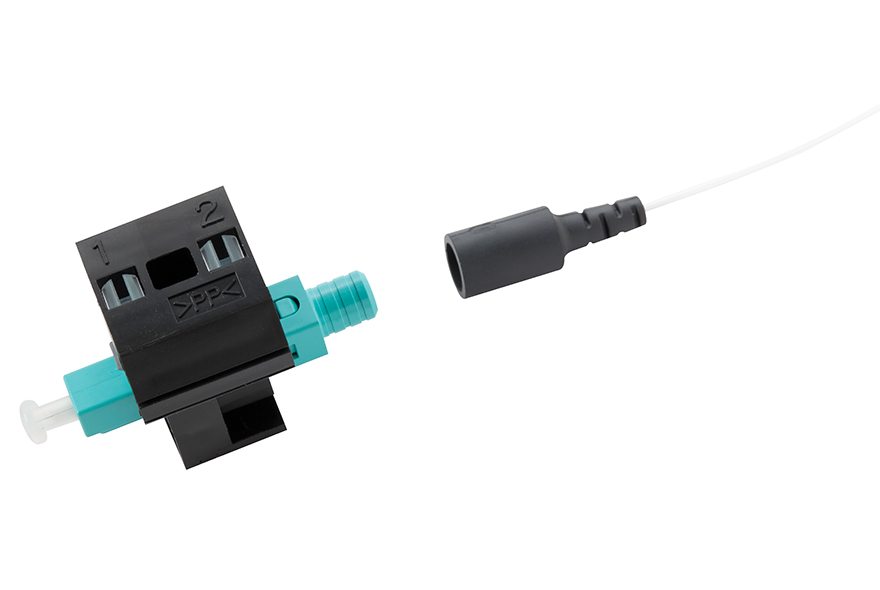

FXC-LCx-6Xpress LC Connector, 6-pack Download Download
FXC-BOOT-2MM2.0mm boot for Xpress connectors (6 per pack) n/a n/a
FXC-BOOT-3MM3.0mm boot for Xpress connectors (6 per pack) n/a n/a
* Replace "x" with fiber type: 5 = 50μm, 5G - 50μm 10 Gig, 6 = 62.5μm, or 8 = single-mode
