B-Series Breakout - MSHA-Rated Mining Cables

Applications:

  • Can be installed in locations that require compliance with MSHA's Part 7, Subpart K of Title 30 of the Code of Federal Regulations (CFR) signal cables
  • Suitable for permanent installations
  • Ideal for applications that require individual connectors added to subcables

Features:

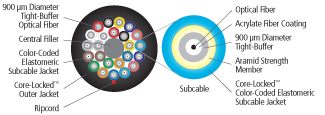

  • Most rugged cable design with individual subcables for routing and direct connector termination
  • Helically stranded cable core for flexibility, survival in difficult pulls, and mechanical protection for the optical fibers
  • High performance tight-buffered coating on each optical fiber for environmental and mechanical protection
  • Fibers may be directly terminated using connectors, with no further protection required
  • UV resistant, water and fungus resistant
  • Core-LockedTM outer jacket surrounds the subcables for exceptional crush resistance, survivability, and use in long, vertical installations
  • Designed for direct lashing, "J" hook applications, and vertical installations
  • Cable is ideal for direct pulling with wire mesh grips
  • Individual fibers and strength members protected in a subcable configuration
  • Ideal configuration for multiple termination point locations where subcables provide excellent strength and mechanical protection for connector termination
  • Flame retardant - MSHA approved to Part 7, Subpart K of Title 30 Code of Federal Regulations (CFR)
  Breakout Mining Cables
Operating Temperature -40°C to +85°C
Storage Temperature -55°C to +85°C
Installation Temperature (cable temp.) -10°C to +60°C
Flame Retardancy MSHA- approved 30CFR 7.408 Signal Cable
Crush Resistance 2,200 N/cm
Impact Resistance 1,500 impacts
Flex Resistance 2,000 cycles
These specifications are subject to change without prior notification.

OCC's B-Series MSHA-rated cables meet the functional requirements of the following standards:

  • MSHA Approved 30CFR 7.408 Signal Cables
  • Part 7, Subpart K of Title 30 Code of Federal Regulations (CFR)

  • GR-409-CORE
  • ICEA-S-104-696
  • ICEA-S-83-596
  • TIA-568
  • TIA-598
