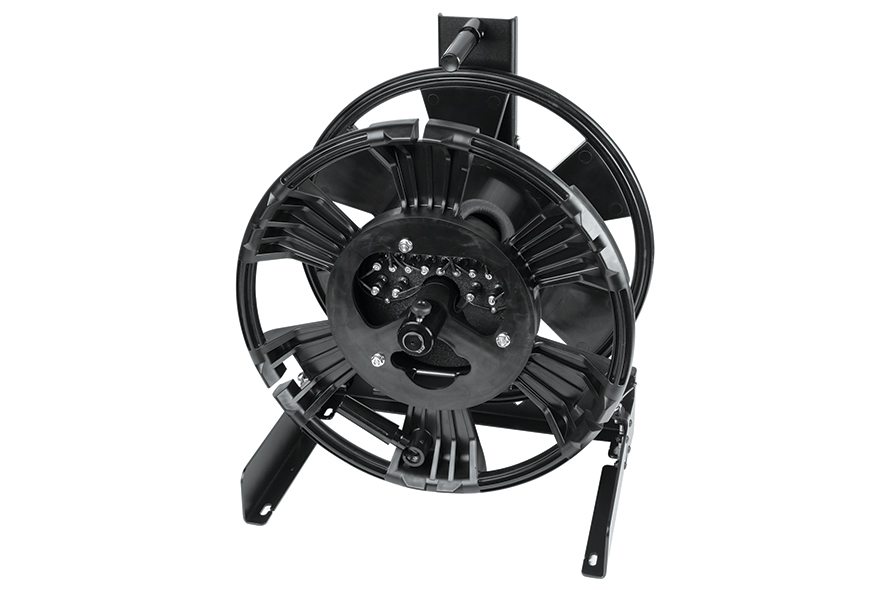

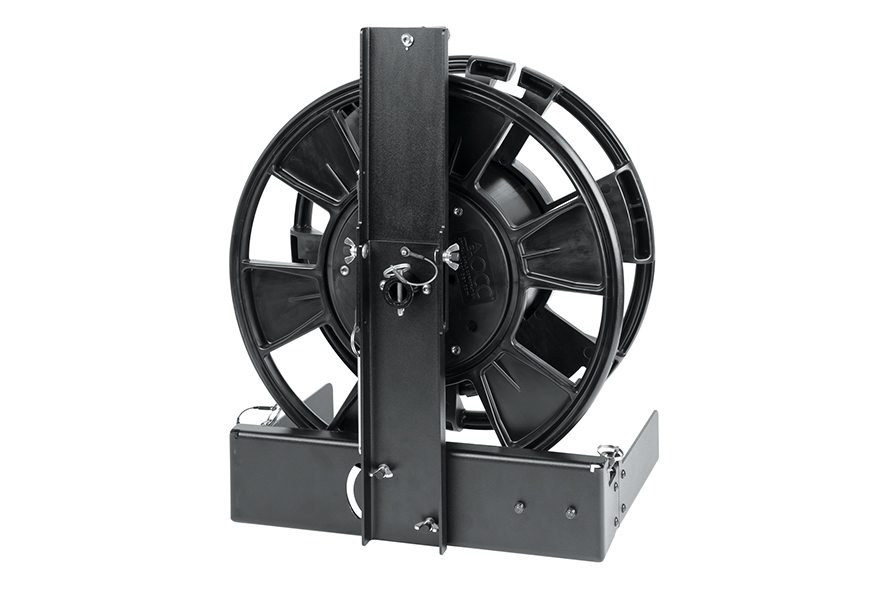

MARS® Collapsible Tripod

Installation zone RECOMMENDATION

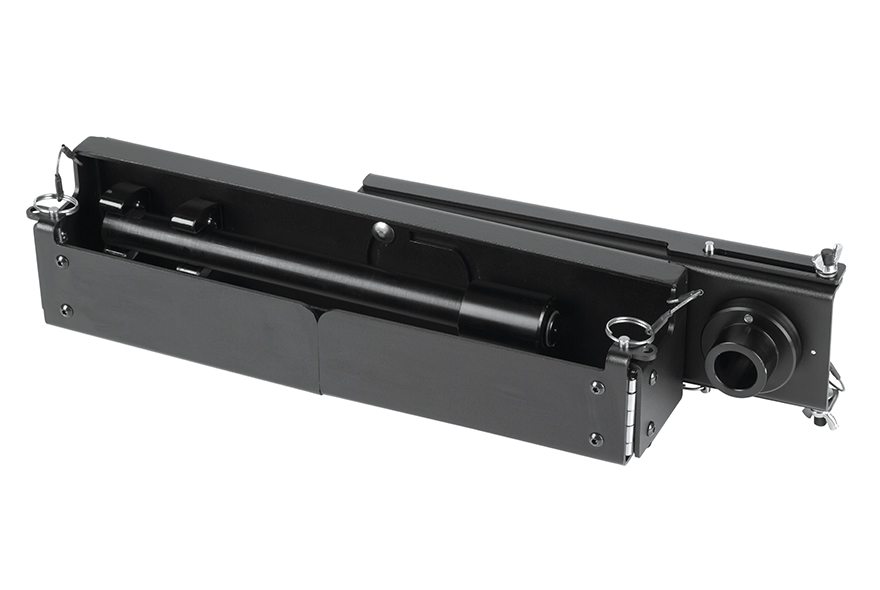

  • Design allows for quick folding for easy transport, shipping and storage
  • Pin latches are tethered to base and lock into place
  • Integrated brake adjusts the drag applied to the reel, which prevents overspin
  • Axles are easily interchanged and available in 100, 300 and 500M sizes
  • The axle latch can easily be positioned to retain or remove the reel


  • Mobile Emergency Telecommunications Stations
  • Mobile Tactical Shelters
  • United States Army, Navy, and Marine Corps Military Tactical Deployments
  • Broadcast
  • Emergency Restoration and Deployable Communications


Download Drawing(s)
Part Number Description PDF DWG/ZIP
AFB-0100-B Collapsible tripod for 100M reel n/a n/a
AFB-0300-B Collapsible tripod for 300M reel n/a n/a
AFB-0500-B Collapsible tripod for 500M reel n/a n/a
