Fiber In Conduit (FIC)

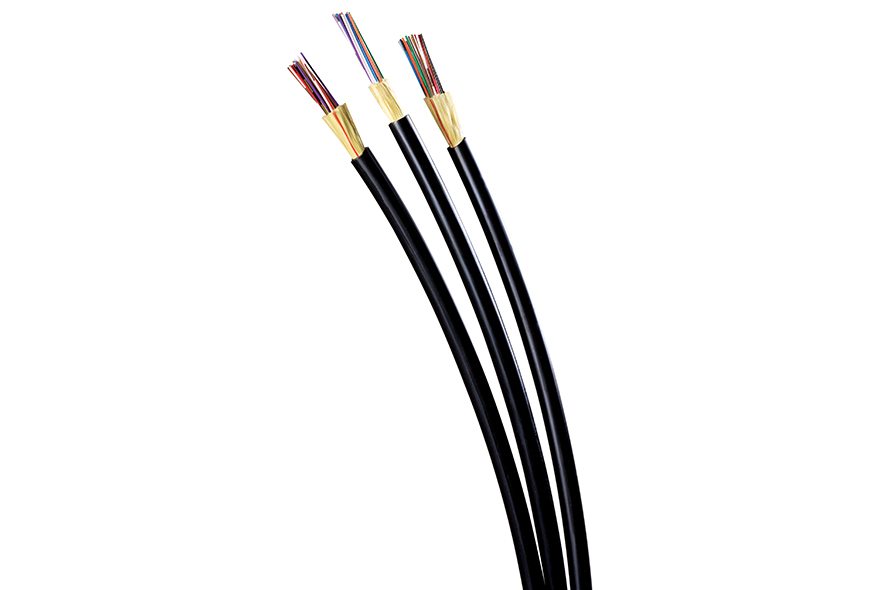

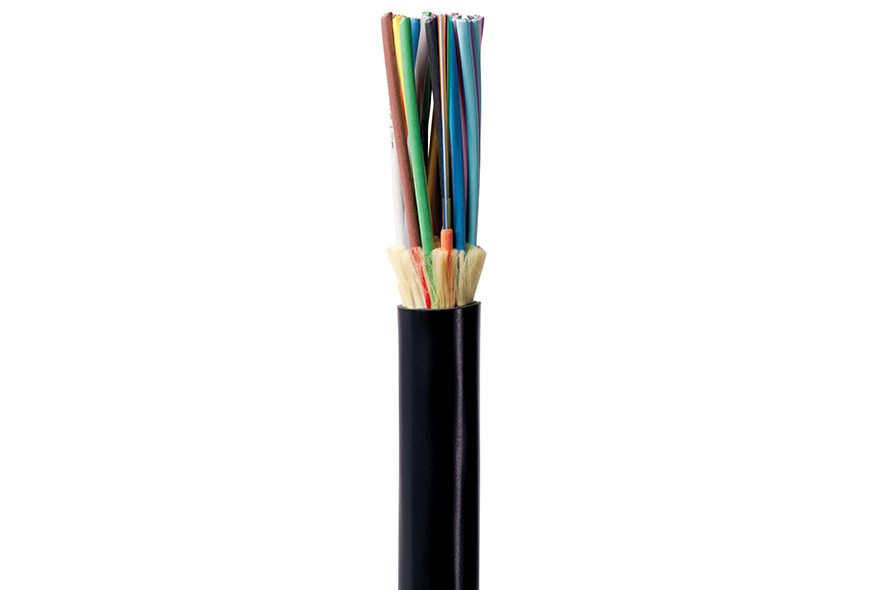

Installation zone RECOMMENDATIONOCC’s durable DX-Series and HC-Series construction fiber optic cables can now be combined with smoothwall High Density Polyethylene (HDPE) Conduit in one product – Fiber In Conduit (FIC).
Fiber In Conduit (FIC) is a durable high-quality product for direct burial and horizontal directional drilling applications. FIC protects the cable from effects of soil, chemical and rodent damage during installation and backfill. By combining OCC fiber optic cable and conduit in one product (FIC) during the manufacturing process, we can help installers and end-users save time and money on any project.
Features
• 2-in-1 product under one OCC part #
• Installs quickly off a reel, much like cable
• All dielectric direct burial product
• Very high-stress crack & crush resistance
• Fully tested product from start to finish
• Can be installed at very low temperatures
• 1.25” is gopher resistant
• Low coefficient of friction
• Can be plowed or directionally bored
• Chemical and water resistant
• Very long cable and conduit life
Benefits
• Easy order & deliver of product to job site
• No risk to fiber during install
• Offers lowest cost underground cable installation method with up to 50% labor savings from traditional methods
• No need to ground product like CST cabling in high voltage applications
• Allows for a very long cable and conduit life of the project
• Gives customer & contractor confidence that the product is ready to go off the truck
Specifications
| Download Drawing(s) | ||||
|---|---|---|---|---|
| Part Number | Description | DWG/ZIP | ||
| DX006ASLA9OAX2 | Distribution 6 Fiber SM Bend Tolerant 1.25 inch HDPE Orange Duct. | Download | n/a | |
| DX006DSLA9OAX2 | Distribution 6 Fiber SM Bend Tolerant 1.25 inch HDPE Orange Duct. | Download | n/a | |
| DX012ASLA9OAX2 | Distribution 12 Fiber SM Bend Tolerant 1.25 inch HDPE Orange Duct. | Download | n/a | |
| DX012DSLA9OAX2 | Distribution 12 Fiber SM Bend Tolerant 1.25 inch HDPE Orange Duct. | Download | n/a | |
| DX024DSLA9OAX2 | Distribution 24 Fiber SM Bend Tolerant 1.25 inch HDPE Orange Duct. | Download | n/a | |
| DX024ASLA9OAX2 | Distribution 24 Fiber SM Bend Tolerant 1.25 inch HDPE Orange Duct. | Download | n/a | |
| HC012DSLACOAX2 | HC-12 Fiber SM Bend Tolerant 1.25 inch HDPE Orange Duct. | Download | n/a | |
| HC024ASLACOAX2 | HC-24 Fiber SM Bend Tolerant 1.25 inch HDPE Orange Duct. | Download | n/a | |
| HC024DSLACOAX2 | HC-24 Fiber SM Bend Tolerant 1.25 inch HDPE Orange Duct. | Download | n/a | |
| HC048ASLACOAX2 | HC-48 Fiber SM Bend Tolerant 1.25 inch HDPE Orange Duct. | Download | n/a | |
| HC048DSLACOAX2 | HC-48 Fiber SM Bend Tolerant 1.25 inch HDPE Orange Duct. | Download | n/a | |
