SMPTE-3-IN-1 Stadium – Plenum Rated Broadcast Cables

Installation zone RECOMMENDATION
1
1
1
1
  • Permanent Installations Where UL Plenum Rating is Required
  • Connecting Fixed Wall Box Connections to Control Room Patch Panels
  • 2 or 3 Cameras in One Location – Only One Cable to Run
  • Utilizes TIA Color-Coding of the Fibers as Well as Electrical Bundles

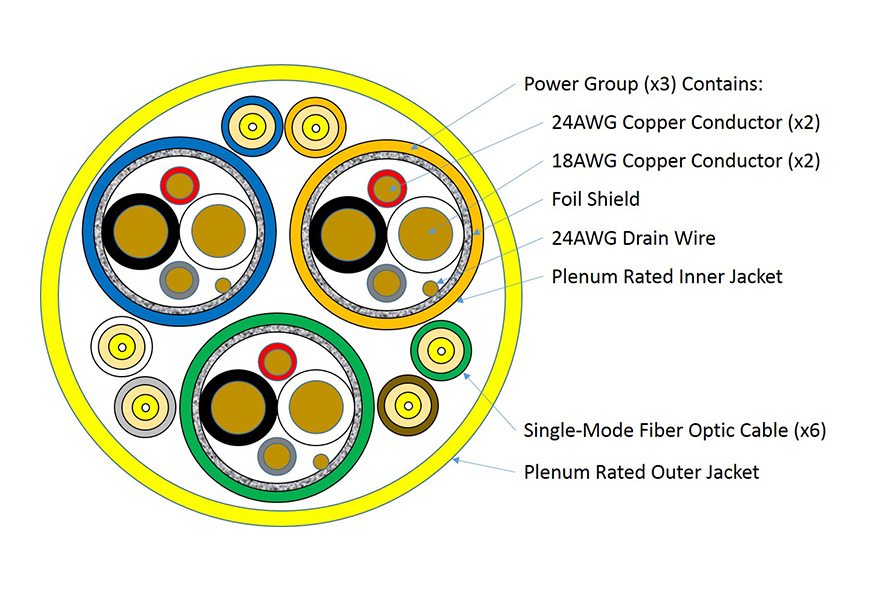

Features

  • Compatible with SMPTE 311 Standards
  • Plenum Rated PVDF Jacket
  • 3 Power Groups, Each With a Color-Coded Jacket
  • 6-Fibers in Subunits Each With a Color-Coded Jacket
  • Fibers and Power Groups are Uniquely Identified by Color
  • 245µm Acrylate Fiber

Specifics

  • 6-Fiber Count
  • PN: CX021HBAB9YP
  • Diameter: 11.4 mm (0.45 in)
  • Weight: 200kg/km (134 lbs/1000 ft)
  • Minimum Bend Radius: 11.4 cm (4.5 in)

Specifications

Download Drawing(s)
Part Number Description PDF DWG/ZIP
CX021HBAB9YP Download n/a
