SMPTE-Flex – Broadcast Cables
Installation zone RECOMMENDATION1
1
1
1
- Offering the durability you expect from OCC, these new SMPTE cables allow you to source all your connection needs from one place. The TACTICAL, LSZH, FLEX, and Riser all utilize the OCC Ultra-Fox™ Plus deployable buffer system with the combination of a triple thickness 500µm diameter acrylate coating together with a hard elastomer 900µm tight buffer for maximum fiber protection.
- On-Stage Stabilized Cameras
- Cameras Mounted on Jibs
- Any Place Where Cameras Need to Move Quickly and Easily
- Mobile Production Trucks

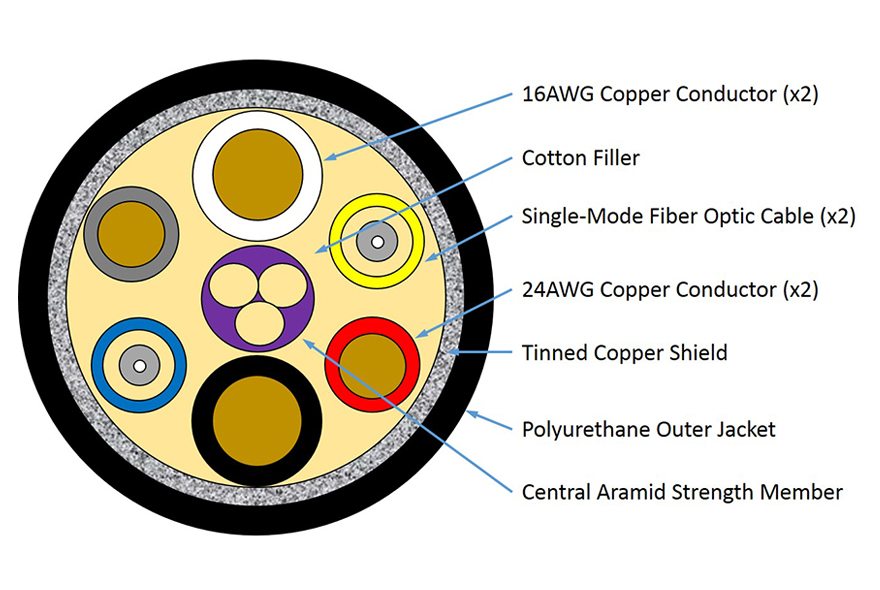

Features
- Compatible with SMPTE 311 Standards
- Rugged, Cut-Resistant, Abrasion-Resistant Polyurethane Jacket
- Lightweight (Lightest Weight OCC SMPTE Cable Offering – Weighs 30% Less Than Our Standard Cables Without Sacrificing Electrical Performance Attributes)
- 500µm Acrylate Fiber for Added Durability – Same Fiber as is Used in OCC’s Military Grade Products!
- Aramid Central Strength Member for Increased Flexibility Over Cables Made with Steel Strength Members
- Cotton Filler and Nylon Over-Wrap Help Minimize Cable Migration During Flexing
- 95% Braided Shield Coverage
Specifics
- 2-Fiber Count
- PN: C-006HBAD5KB
- Diameter: 7.8 mm (0.31 in)
- Weight: 100 kg/km (67 lbs/1000 ft)
- Minimum Bend Radius: 3.9 cm (1.5 in)
Specifications
| Download Drawing(s) | ||||
|---|---|---|---|---|
| Part Number | Description | DWG/ZIP | ||
| C-006HBAD5KB | Download | n/a | ||
