B-Series Breakout – LSZH ABS-Approved Cables

Installation zone RECOMMENDATION
1
1
1
1

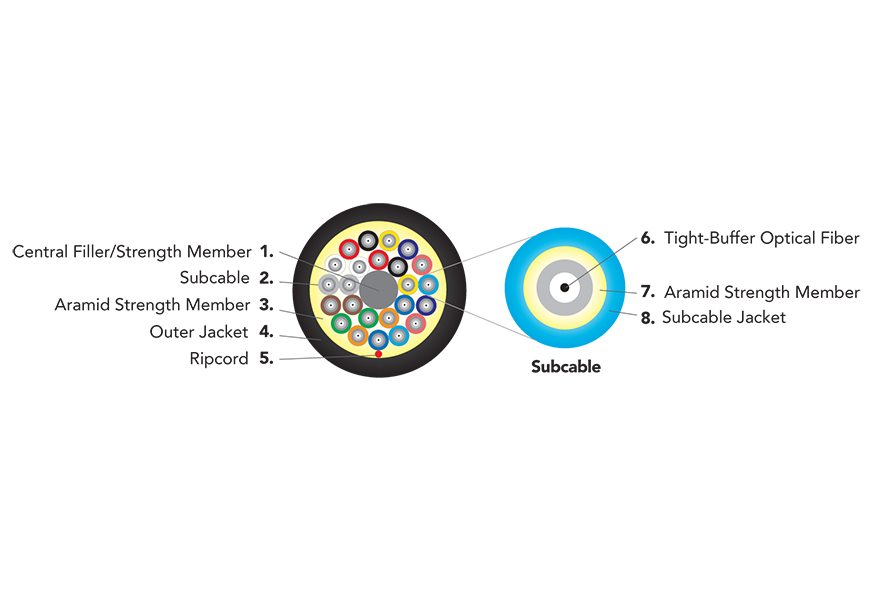

  • Marine and offshore tight-buffered cable design for use in installations requiring a flame-retardant, low-smoke and zero-halogen cable incorporating individual subcables for direct termination

Applications

  • Marine and offshore tight-buffered cable design for use in installations requiring a flame-retardant, low-smoke and zero-halogen cable incorporating individual subcables for direct termination

Features

  • Zero-halogen construction meets IEC 60754-2
  • Meets low-smoke requirements of UL 1685 and IEC 61034-2
  • Flame-retardant per the requirements of IEC 60332-3-24 and UL 1666
  • UL listed in accordance with NEC sections 770.179(b) for use in vertical runs in building riser shafts or from floor to floor
  • ABS-approved for 2021 Steel Vessels Rules 1-1-4/7.7, 1-1- Appendix 3 1-1- Appendix 4, 4-8-3/9.1, 4-8-3/9.5 (I & II), 4-8-3/9.13
  • ABS-approved for 2021 Mobile Offshore Drilling Units (MODU) Rules 1-1-4/9.7, 1-1-Appendix 2, 1-1-Appendix 3, 4-3-3/5.1, 4-3-3/5.21 & 5.23 4-3-4/7.1.1, 7.1.2, 7.1.6
  • Suitable for indoor or outdoor applications
  • Jacket is UV, fungus, and moisture resistant
  • Round cable construction for easy handling and termination
  • Includes ripcord for easy outer jacket removal
  • Rugged cable for deck applications
  • Breakout style cable with 2 to 24 fibers
  • Optical fiber types include 62.5/125, 50/125, and single-mode
  • Available with 500µm primary acrylate-coated fiber for maximum mechanical and environmental protection of the optical fiber

Characteristics

Characteristic 2.0mm Subcables 2.5mm subcables
Operating Temp -40°C to +70°C -40°C to +70°C
Storage Temp -40°C to +70°C -40°C to +70°C
Install Temp -20°C to +60°C -20°C to +60°C
Flame Retardancy UL Listed Type OFNR-ST1 (UL 266 & UL1685); IEC 60332-3-24; Zero Halogen: IEC60754-2; Smoke Generation: IEC 610034-2; ABS Type Approved: Certificate #21-2090810-PDA UL Listed Type OFNR-ST1 (UL 266 & UL1685); IEC 60332-3-24; Zero Halogen: IEC60754-2; Smoke Generation: IEC 610034-2; ABS Type Approved: Certificate #21-2090810-PDA
Crush Resist 2200 N/cm 2200 N/cm
Impact Resist 1500 impacts 1500 impacts
Flex Resist 2000 cycles 2000 cycles
Jacket Type Z Z

Standards

OCC B-Series Breakout Low-Smoke Zero-Halogen ABS-approved cables meet the functional requirements of the following standards:

  • ABS Steel Vessels Rules
  • ABS MODU Rules
  • IEC 60332-3-24
  • IEC 60754-2
  • IEC 61034-2
  • UL 1666 OFNR
  • UL 1685 OFN-ST1
  • MIL-C-24643
  • ICEA-S-104-696
  • TIA-568
  • TIA-598

Specifications

2.0mm Subcables

Tensile Load Minimum Bend Radius
Fiber Count Part Number Part Number Configurator Diameter mm
(in)		 Weight kg/km
(lbs/1,000ft)		 Installation N
(lbs)		 Operation N
(lbs)		 Installation cm
(in)		 Longer Term cm
(in)
2 BE002Z***9KE-*ABS 8.1
(0.32) 		66.0
(44.0) 		1,600
(360) 		400
(90) 		12.1
(4.8) 		8.1
(3.2)
4 BE004Z***9KE-*ABS 8.1
(0.32) 		66.0
(44.0) 		1,600
(360) 		400
(90) 		12.1
(4.8) 		8.1
(3.2)
6 BE006Z***9KE-*ABS 9.1
(0.36) 		82.0
(55.0) 		2,400
(540) 		600
(130) 		13.7
(5.4) 		9.1
(3.6)
8 BE008Z***9KE-*ABS 10.4
(0.41) 		108.0
(73.0) 		3,200
(720) 		800
(180) 		15.6
(6.1) 		10.4
(4.1)
12 BE012Z***9KE-*ABS 11.6
(0.46) 		131.0
(88.0) 		4,800
(1,800) 		1,200
(270) 		17.4
(6.9) 		11.6
(4.6)
18 BE018Z***9KE-*ABS 12.8
(0.50) 		162.0
(109.0) 		7,200
(1,620) 		1,800
(400) 		19.2
(7.6) 		12.8
(5.0)
24 BE024Z***9KE-*ABS 15.0
(0.59) 		219.0
(147.0) 		9,600
(2,100) 		2,400
(540) 		22.5
(8.9) 		15.0
(5.9)

2.5mm Subcables

Tensile Load Minimum Bend Radius
Fiber Count Part Number Part Number Configurator Diameter mm
(in)		 Weight kg/km
(lbs/1,000ft)		 Installation N
(lbs)		 Operation N
(lbs)		 Installation cm
(in)		 Longer Term cm
(in)
2 BX002Z***9KE-*ABS 9.2
(0.36) 		84.0
(56.0) 		2,000
(450) 		800
(180) 		13.8
(5.4) 		9.2
(3.6)
4 BX004Z***9KE-*ABS 9.2
(0.36) 		84.0
(56.0) 		2,000
(450) 		800
(180) 		13.8
(5.4) 		9.2
(3.6)
6 BX006Z***9KE-*ABS 10.6
(0.42) 		107.0
(72.0) 		3,000
(670) 		1,200
(270) 		15.9
(6.3) 		10.6
(4.2)
8 BX008Z***9KE-*ABS 12.4
(0.49) 		144.0
(97.0) 		4,000
(900) 		1,700
(3,800) 		18.6
(7.3) 		12.4
(4.9)
12 BX012Z***9KE-*ABS 14.0
(0.55) 		171.0
(115.0) 		6,000
(1,350) 		2,500
(560) 		21.0
(8.3) 		14.0
(5.5)
18 BX018Z***9KE-*ABS 15.9
(0.63) 		225.0
(151.0) 		8,000
(1,800) 		3,500
(790) 		23.9
(9.4) 		15.9
(6.3)
24 BX024Z***9KE-*ABS 17.9
(0.70) 		290.0
(195.0) 		10,000
(2,250) 		3,800
(850) 		26.9
(10.6) 		17.9
(7.0)
