B-Series Breakout – MSHA-Rated Deployable Cables

Installation zone RECOMMENDATION
1
1
1
1
  • Used in mining applications where cables may need to be temporarily deployed or where a rugged jacket is required
  • Deployable cable that is ideal for use in harsh environments where deployment and retrieval for reuse are required
  • Ideal for applications that require termination of the subcable to a connector and a direct run to panels and equipment

Applications

  • Used in mining applications where cables may need to be temporarily deployed or where a rugged jacket is required
  • Deployable cable that is ideal for use in harsh environments where deployment and retrieval for reuse are required
  • Ideal for applications that require termination of the subcable to a connector and a direct run to panels and equipment

Features

  • Most rugged, high-strength cable design incorporating subcables for direct termination
  • Polyurethane jacketed for abrasion, cut and chemical resistance
  • Core-locked® jacket for improved mechanical performance

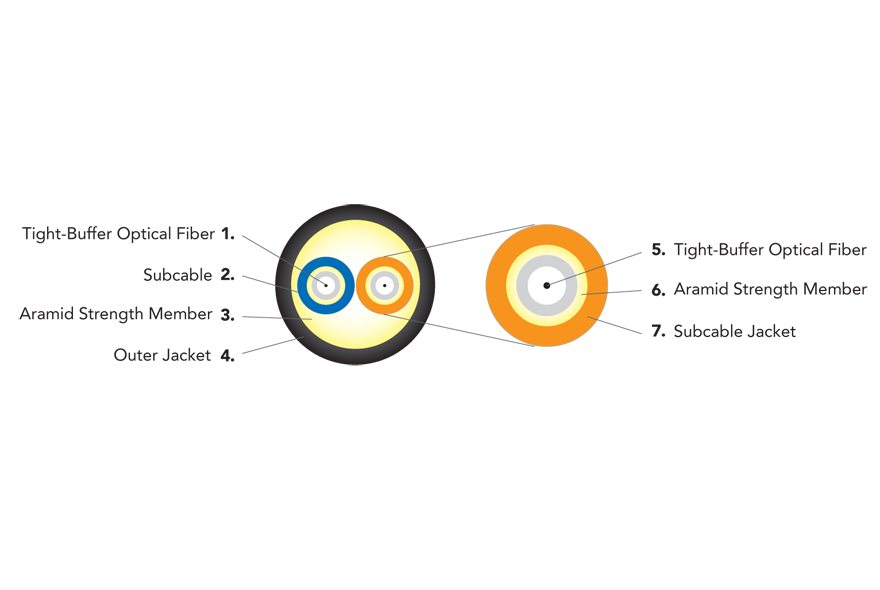

  • Breakout cable design with individual color-coded subcables, protecting each optical fiber
  • Crush resistant and resilient, with two separate layers of aramid strength members in the subcables for individual single-fiber connector and termination pin, and overall for termination to multiway connector backshells or other housings
  • Helically stranded cable core for flexibility, deployment survivability and exceptional mechanical protection for the optical fibers
  • Can be used outdoors for temporary deployment directly on the ground, in all terrains, including severe environments
  • Suitable for industrial, mining, and petrochemical environments; chemical resistant
  • Often used with multiway military tactical connectors for maximum connector retention (400lbs.)
  • Ideally suited for use with MIL-C-38999 style military connectors; subcables terminate to individual pins, and overall strength member terminates to backshell
  • 2.0mm subcables standard
  • Flame-retardant and MSHA approved to Part 7, Subpart K of Title 30 Code of Federal Regulations (CFR)

OCC PROVIDED OPTIONS

  • MSHA-rated deployable cables pre-spooled on deployable reels for a ready-to-use product
  • MSHA-rated deployables can be pre-terminated with single-fiber or ruggedized multi-channel connectors upon request

Characteristics

Characteristic Deployable
Operating Temp -40°C to +85°C
Storage Temp -70°C to +85°C
Flame Retardancy MSHA- approved 30CFR 7.408 Signal Cable
Crush Resist 2100 N/cm
Impact Resist 1500 impacts
Flex Resist 2000 cycles
Jacket Type V

Standards

OCC's B-Series Breakout MSHA-rated deployable cables meet the functional requirements of the following standards:

  • MSHA Approved 30CFR 7.408 Signal Cables
  • Part 7, Subpart K of Title 30 Code of Federal Regulations (CFR)
  • TIA-568
  • TIA-598

Specifications

Deployable

Tensile Load Minimum Bend Radius
Fiber Count Part Number Part Number Configurator Diameter mm
(in)
Weight kg/km
(lbs/1,000ft)
Installation N
(lbs)
Operation N
(lbs)
Installation cm
(in)
Longer Term cm
(in)

2 Please Call OCC for ordering assistance. 7.0
(0.28)
49.0
(33.0)
2,200
(490)
550
(120)
7.0
(2.8)
3.5
(1.4)
4 Please Call OCC for ordering assistance. 7.9
(0.31)
60.0
(40.0)
2,200
(490)
550
(120)
7.9
(3.1)
3.9
(1.5)
6 Please Call OCC for ordering assistance. 9.0
(0.35)
73.0
(49.0)
2,400
(540)
600
(130)
9.0
(3.5)
4.5
(1.8)
8 Please Call OCC for ordering assistance. 10.3
(0.41)
96.0
(65.0)
3,200
(720)
800
(180)
10.3
(4.1)
5.2
(2.0)
10 Please Call OCC for ordering assistance. 11.7
(0.46)
124.0
(83.0)
4,000
(900)
1,000
(220)
11.7
(4.6)
5.9
(2.3)
12 Please Call OCC for ordering assistance. 11.0
(0.43)
102.0
(69.0)
4,800
(1,080)
1,200
(270)
11.0
(4.3)
5.5
(2.2)
