Mini 28AWG Patch Cords

Installation zone RECOMMENDATION
1
1
1
1

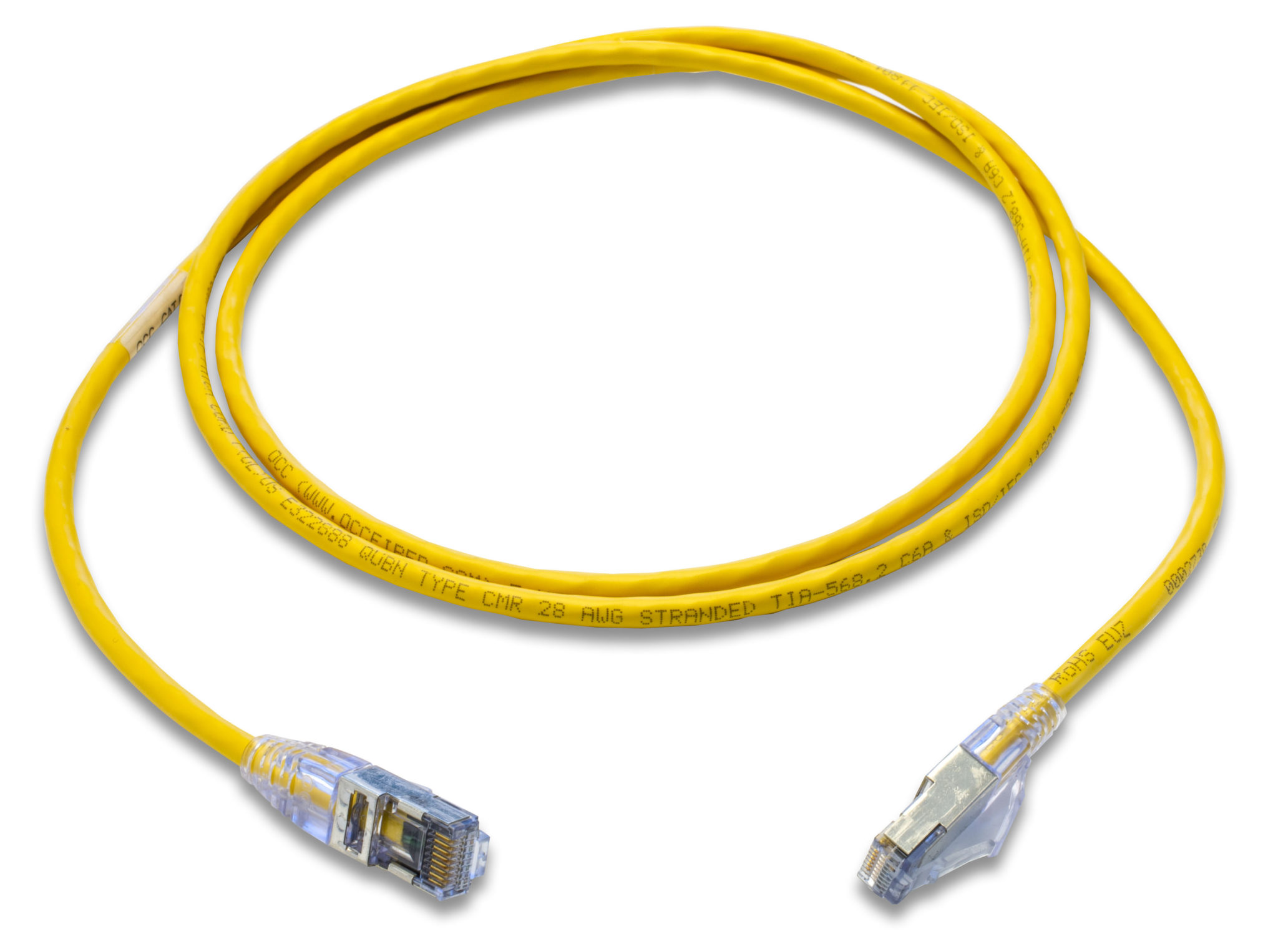

OCC’s Category 6A shielded mini-patch cords are designed to support 10-Gigabit Ethernet in a high density patching environment.  They are constructed with F/UTP cable for superior alien crosstalk performance and 28AWG stranded conductors for small diameter and greater flexibility.

Applications

  • 2.5/5/10GBASE-T
  • 10/100/1000BASE-T
  • OTHER APPLICATIONS DESIGNED TO OPERATE OVER CATEGORY 6A CABLING SYSTEMS.
  • SUPPORTS ALL IEEE STANDARDS FOR DC POWER DELIVERY OVER 4-PAIR CABLING WHEN INSTALLED IN ACCORDANCE WITH TIA TELECOMMUNICATION SYSTEMS BULLETIN TSB-184-A, GUIDELINES FOR SUPPORTING POWER DELIVERY OVER BALANCED TWISTED-PAIR CABLING-ADDENDUM 1- USE OF 28AWG CORDS.

Features

  • MEETS CATEGORY 6A PERFORMANCE REQUIREMENTS FOR 28AWG PATCH CORDS AS DEFINED BY ANSI/TIA 568.2-D ANNEX G- 28AWG CORD CABLE PERFORMANCE.
  • CONSTRUCTED WITH F/UTP CABLE FOR SUPERIOR ALIEN CROSSTALK PERFORMANCE

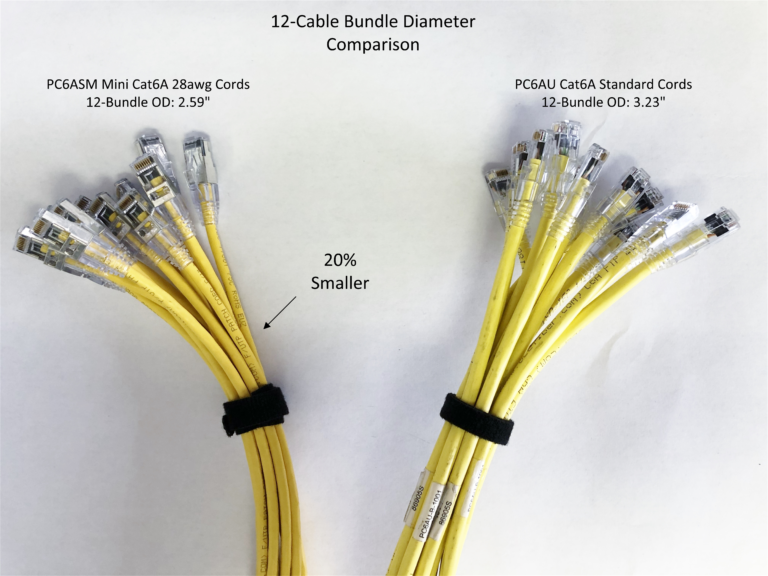

  • 20% SMALLER THAN STANDARD CAT6A PATCH CORDS –GREATER FLEXIBILITY
  • SLIMLINE SNAGLESS BOOTS
  • UL 1863 LISTED

Specifications

Download Drawing(s)
Part Number Description PDF DWG/ZIP
PC6ASMxxByy Shielded, Category 6A 28AWG Mini Patch Cord w/ Boot Download Download

Instruction Sheets

Talk to a knowledgeable OCC Expert that can find or customize a product to fit your specifications. 800-622-7711
