Rack Max

Installation zone RECOMMENDATION

In keeping with our dedication to providing convenient solutions for structured cabling needs, OCC offers the Rack Max, an integrated open-frame rack and cable management system in one. The Rack Max Cable Management Rack is able to accommodate 19" or 23" mounting widths in an 84" high open-frame rack configuration. Its wide stance provides above-average strength and a high-capacity 6.5" deep aluminum vertical channel allows for safe management of large bundles of copper or fiber cabling. Overall, the Rack Max solution offers maximum rack space with greater mounting flexibility and the added bonus of an integrated vertical cable path for increased cable management and greater aesthetic appeal.


  • Built-in protected vertical cable pathway
  • Vertical channels tapped on front and back with 4"x 4" side holes for easy cable entry

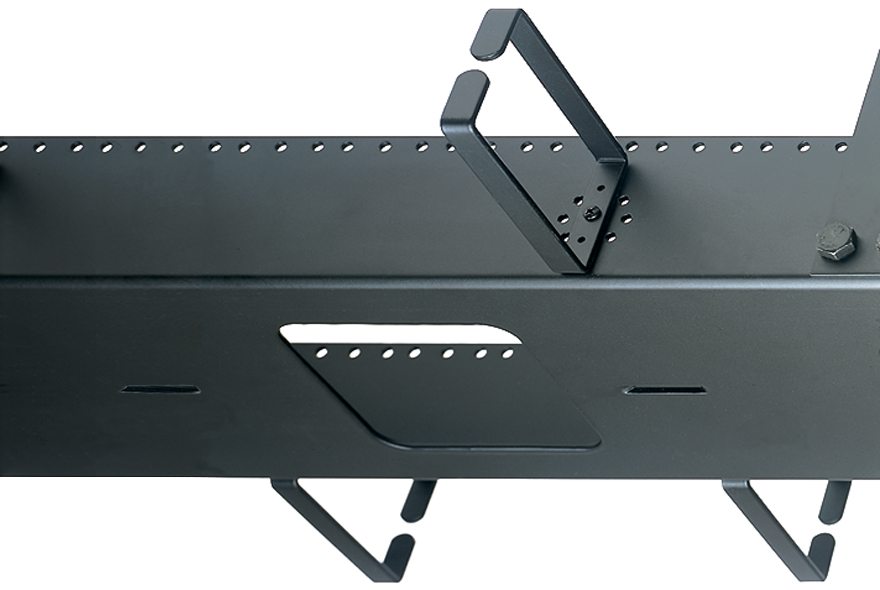

  • Top bars have parallel and perpendicular attachment points for cable tray and ladder rack

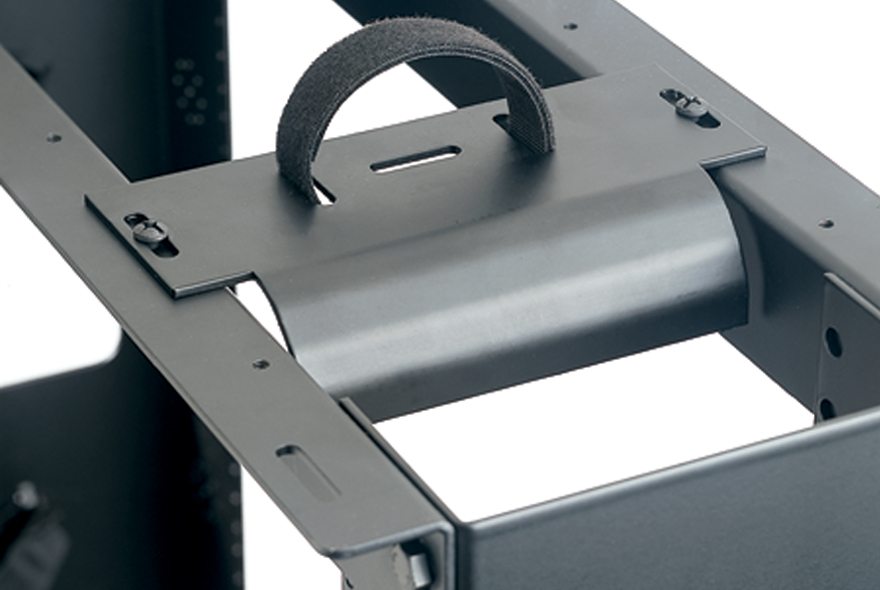

  • Built-in bend radius protection
  • May accommodate 19" or 23" mounting widths
  • (18) hook & loop fasteners
  • EIA standard 5/8", 5/8" 1/2" hole mounting patterns with #12-24 tapped holes
  • Sturdy aluminum construction
  • Durable black powder coat finish


Download Drawing
Part Number Description Dimensions Load Rating RU Ship Weight PDF DWG/ZIP
CMR45 Rack Max 45RU cable management rack, 19" or 23" mounting 84"H x 6.5"D 1000 lbs 45 43 lbs Download Download
