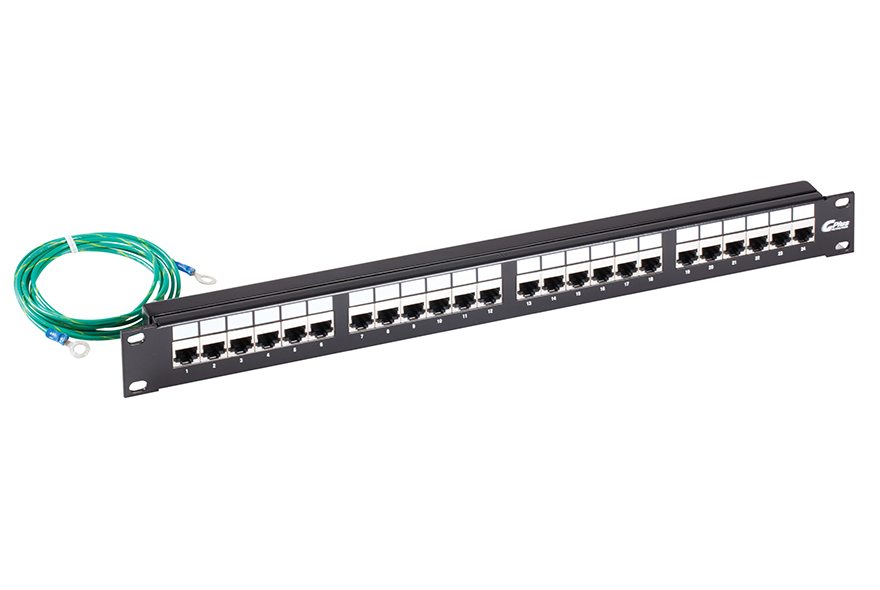

Category 5e Gigabit Ethernet Telco Patch Panels

Installation zone RECOMMENDATION
1
1
1
1

High-speed data connections are essential for keeping pace with today's business climate. OCC took this into consideration when developing patch panels that offered 1000BASE-T Gigabit Ethernet performance. Not only does the performance exceed industry standards, OCC's Gigabit Ethernet Patch Panels are 100% component tested in the factory guaranteeing the customer worry-free installations.

Applications

  • Voice4/16 Mbps Token Ring
  • 100 Mbps TP-PMD
  • 155/622 Mbps ATM
  • Broadband video
  • 10BASE-T Ethernet
  • 100BASE-TX Fast Ethernet
  • 1000BASE-T Gigabit Ethernet

Features

  • Exceeds EIA/TIA 568-C.2 specifications
  • ISO/IEC 60603-7 compliant
  • Patented PC Board Technology
  • All-steel construction for durability
  • Each female Telco connector is split out to 6 RJ45 ports in TIA T568A or 568B configuration supporting 1000BASE-T applications
  • Fast and easy installations
  • Write on label fields
  • Fully adjustable cable management support bar and bend radius requirements
  • IKON compatible - 12 colors
  • Use with OCC Telco Category 5e cable assemblies
  • Compliant with Power over Ethernet (PoE+) requirements
  • Insulation resistance - 500MΩ minimum
  • Dielectric withstand - 1000 VAC RMS, AC 60 Hz or 1414 VDC P-P
  • DC current rating - 1.5A per conductor at 20°C ambient de-rated to 0.75A at 60°C ambient

Specifications

Download Drawing(s)
Part Number Description PDF DWG/ZIP
DCC24A/GBASET21 Rack Mount Patch Panel, Gigabit Telco, 568A Wired, 24-port with Cover Download Download
DCC24B/GBASET21 Rack Mount Patch Panel, Gigabit telco, 568B Wired, 24-port with Cover Download Download
DCC48A/GBASET21 Rack Mount Patch Panel, Gigabit Telco, 568A Wired, 48-port with Cover Download Download
DCC48B/GBASET21 Rack Mount Patch Panel, Gigabit Telco, 568B Wired, 48-port with Cover Download Download
PP2488/25V01 Wall Mount Patch Panel, Gigabit Telco, 568B Wired, 24-port Download Download
DCC2488/25S-01 Rack Mount Patch Panel, Shielded Gigabit Telco, 568B Wired, 24-port with Cover Download Download
ACC2488/25V01 Rack Mount Patch Panel, Angled, Gigabit Telco, 568B Wired, 24-port, 1RU Download Download
DCC2488/25V01 Rack Mount Patch Panel, Gigabit Telco, 568B Wired, 24-port Download Download
ACC4888/25V01 Rack Mount Patch Panel, Angled, Gigabit Telco, 568B Wired, 48-port, 2RU Download Download
DCC4888/25V01 Rack Mount Patch Panel, Gigabit Telco, 568B Wired, 48-port Download Download
