Category 3 KMJ Voice-Grade Jacks

Installation zone RECOMMENDATION
1
1
1
1

For voice-grade applications, OCC offers a Keystone Modular Jack that exceeds performance specifications to any Category 3 requirement. OCC's KMJ Category 3 jacks offer easy installations with 110-style terminations on back for 26, 24, and 22 AWG solid conductors and deliver unsurpassed performance, keeping with OCC's guarantee for consistent performance.

Features

  • 110 style IDC contacts
  • Meets IEC 60603-7 requirements
  • Available in 12 color options

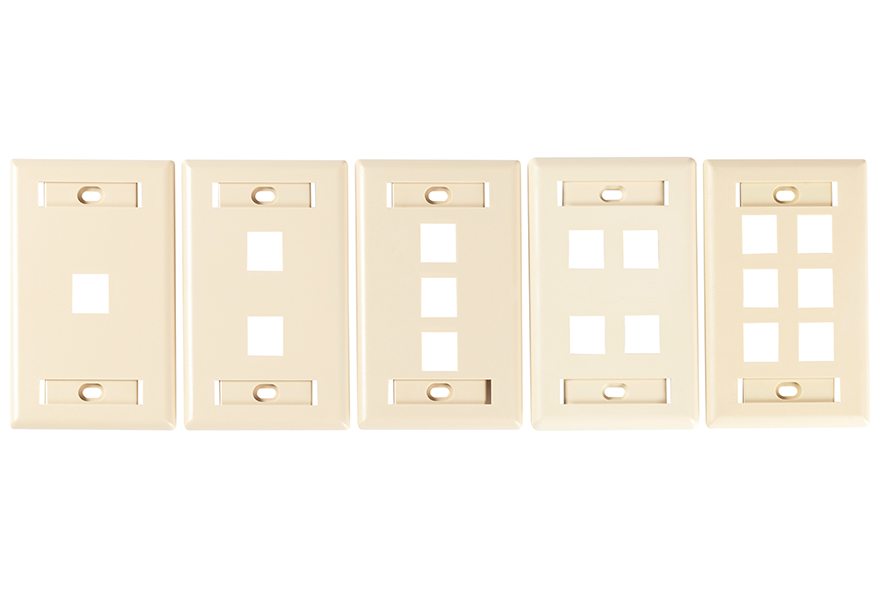

  • Fits all OCC Keystone faceplates and surface mount boxes
  • Compliant with Power over Ethernet (PoE+) requirements
  • Insulation resistance- 500MΩ minimum
  • Dielectric withstand- 1000VAC RMS, AC 60Hz or 1414 VDC P-P
  • DC current rating- 1.5 A per conductor at 20°C ambient de-rated to 0.5 A at 60°C ambient
  • One-piece stuffer cap included

Specifications

Download Drawing(s)
Part NumberDescriptionPDFDWG/ZIP
KMJL8A/BxxKMJ Jack 568A/B, 8x8 Leadframe, 110-style Download Download
KMJL06UxxKMJ Jack USOC, 6x6 Leadframe, 110-style Download Download
Replace "xx" with color code chart to the right.
