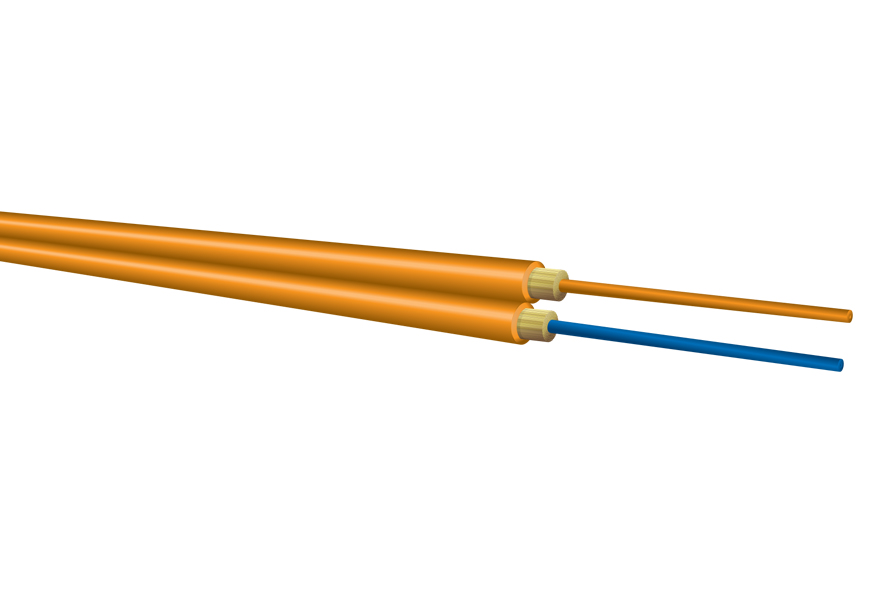

A-Series – Plenum Cables

Installation zone RECOMMENDATION
1
1
1
1
  • Resilient and flexible for jumpers and patch cords
  • Suitable for general-purpose indoor use, such as routing connections in patching systems
  • Short "patch cord" cables ideal for links between electronic equipment and main fiber optic cables

Applications

  • Resilient and flexible for jumpers and patch cords
  • Suitable for general-purpose indoor use, such as routing connections in patching systems
  • Short "patch cord" cables ideal for links between electronic equipment and main fiber optic cables

Features

  • Flame-retardant for indoor installations
  • Compatible with all standard fiber optic connectors designed for small form-factor simplex and duplex connectors such as MT-RJ and LC connectors
  • High performance tight-buffered coating on each optical fiber for environmental and mechanical protection
  • Custom jacket colors are available to match connectors.
  • Private labeling on the cable outer jacket is also available

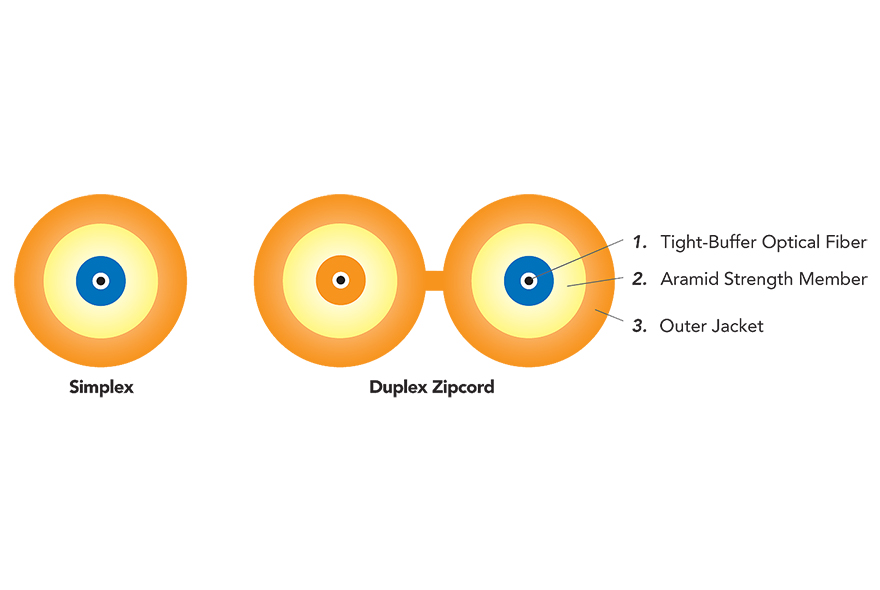

  • 1 (simplex) and 2 (duplex) fibers available
  • Available with bend-tolerant single-mode and multimode fibers

Characteristics

Characteristic Plenum
Operating Temp 0°C to +70°C
Storage Temp -40°C to +85°C
Install Temp 0°C to +60°C
Flame Retardancy UL Listed Type OFNP (ANSI/NFPA 262) and FT6 (CSA C22.2 No. 232)
Crush Resist 500 N/cm
Impact Resist 200 impacts
Flex Resist 2000 cycles
Jacket Type S

Standards

OCC tight-buffered fiber optic assembly cables meet the functional requirements of the following standards:

  • ICEA-S-83-596
  • TIA-568
  • TIA-598

Specifications

Plenum

Tensile Load Minimum Bend Radius
Fiber Count Part Number Part Number Configurator Diameter mm
(in)
Weight kg/km
(lbs/1,000ft)
Installation N
(lbs)
Operation N
(lbs)
Installation cm
(in)
Longer Term cm
(in)

1 AX001S***9*P 2.9
(0.11)
9.0
(6.0)
500
(110)
300
(70)
5.0
(2.0)
3.0
(1.2)
2 AX002S***9*P 2.9
(0.11)
18.0
(12.0)
1,000
(220)
500
(110)
5.0
(2.0)
3.0
(1.2)
