WTC Cabinets – Wall Mount Fiber Enclosures
Installation zone RECOMMENDATION1
1
1
1

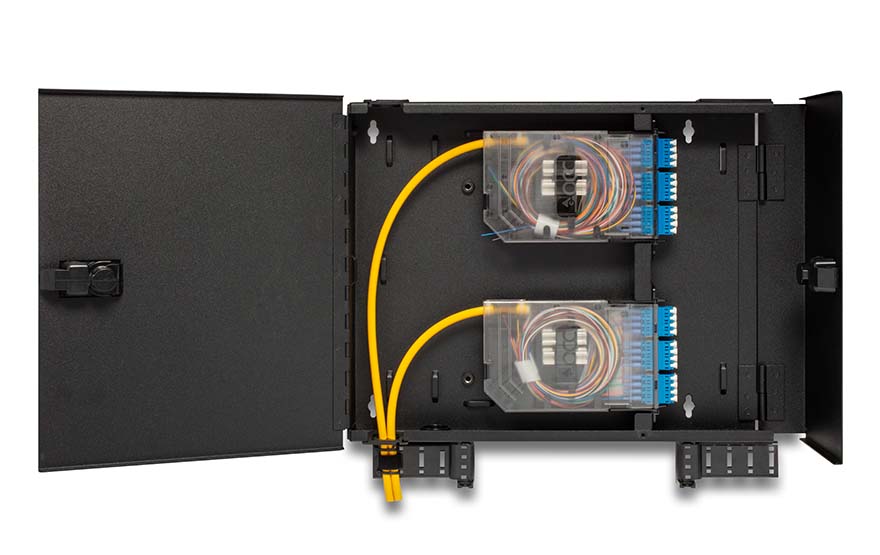

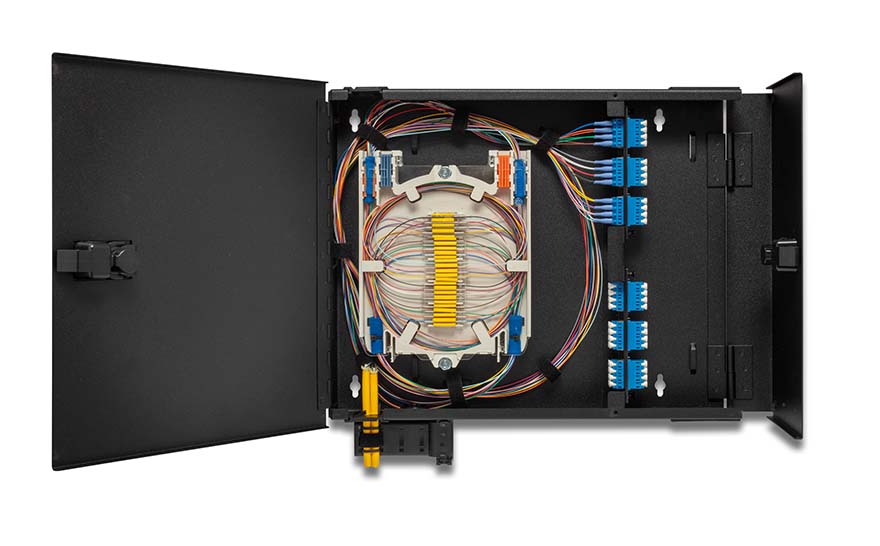

With features like integrated fiber management and easy cable distribution, Optical Cable Corporation’s Wall Mount Cabinets (WTC) provide a solid foundation for any fiber optic application. Each cabinet may be ordered empty or loaded to meet exact specifications. Every WTC cabinet easily accommodates all cross-connect functions including splicing, termination and inter-connects for outside plant backbone and building cables. The WTC series cabinets are scalable, modular and constructed for durability, and with OCC’s variety of adapter plates, cassette modules and splicing features, the application options are endless.
Features
- WTC6APB, WTC12APB enclosures accept OCC standard 600-series adapter plates and cassettes

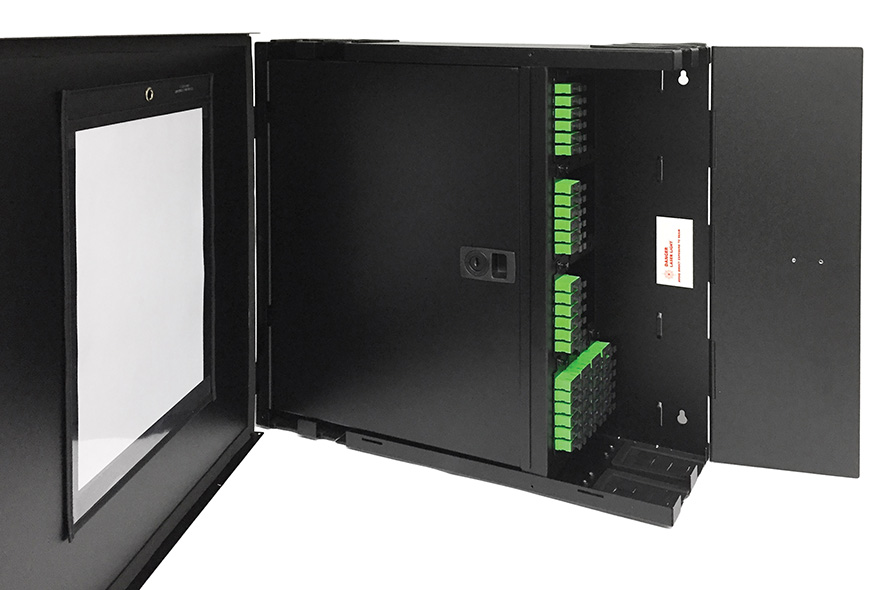

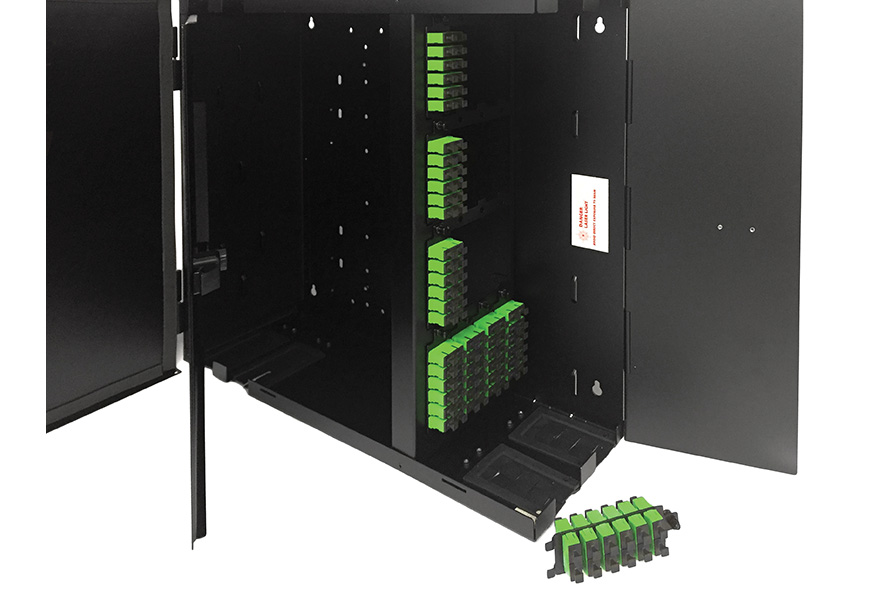

- WTC8HDAPB/WTC16HDAPB enclosures accept HD adapter plates for high-density applications (33% more port capacity than 600-series)
- External strain relief brackets reduces fiber stress and provide support for proper cable bends and efficient cable management

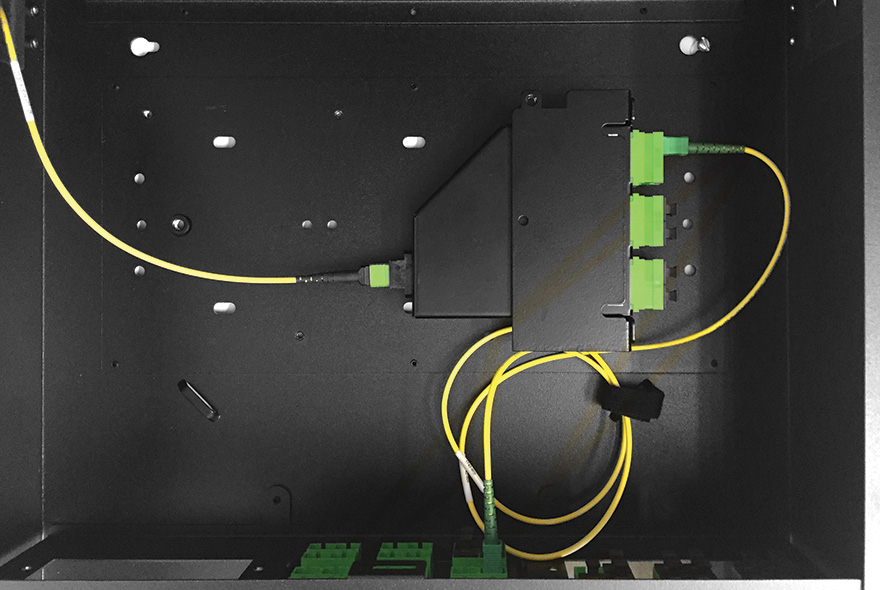

- WTC6APB/WTC12APB and WTC8HDAPB/WTC16HDAPB enclosures accept optional stackable cassette brackets
- Numerous internal locations to secure cable slack

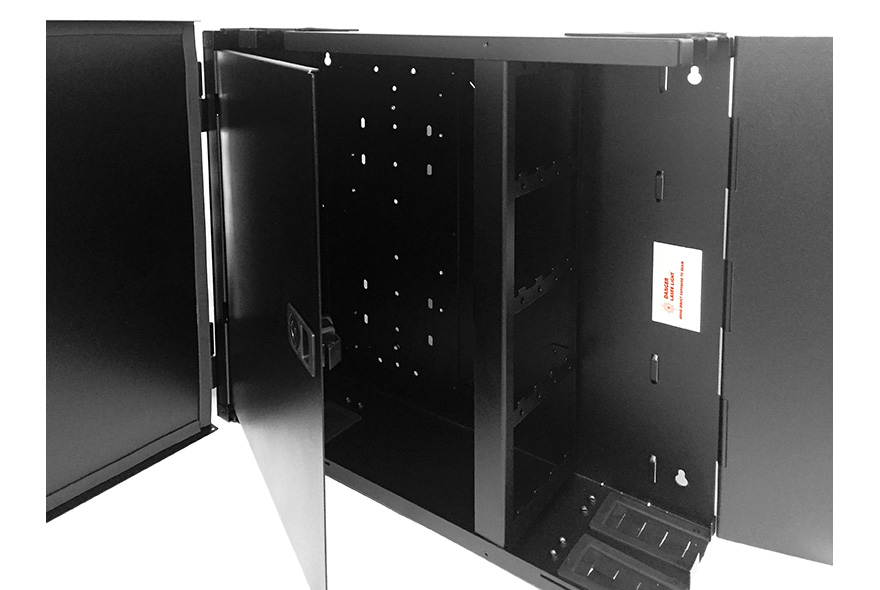

- Optional lockable inner door is removable and may also be used as work surface

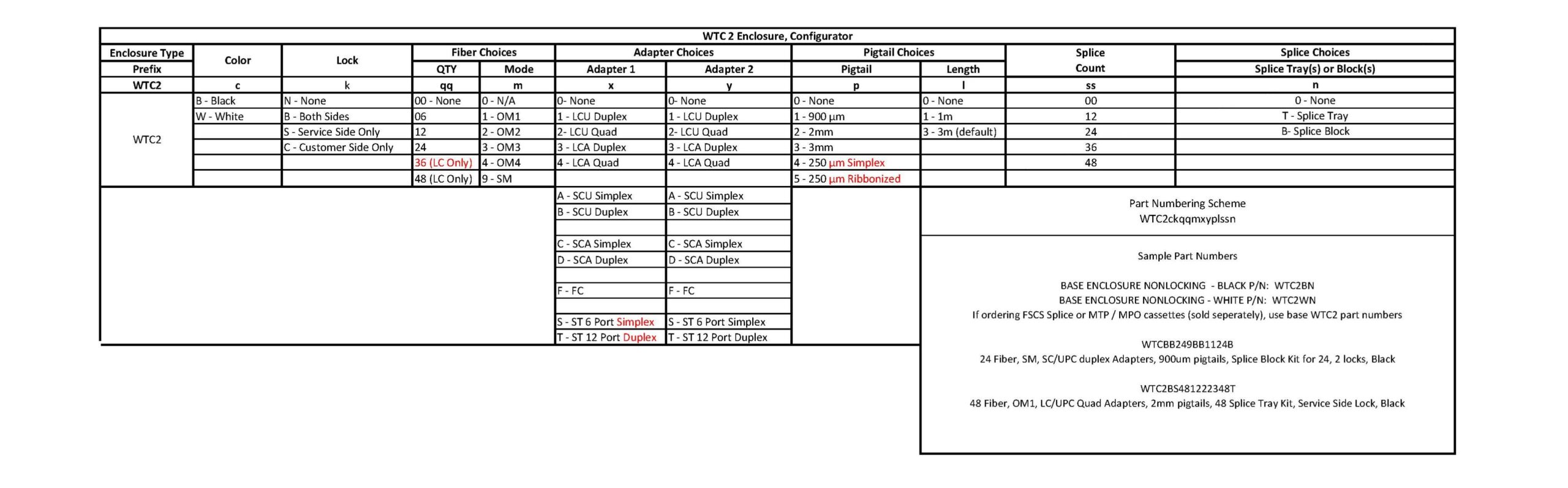

Specifications
| Download Drawing(s) | ||||
|---|---|---|---|---|
| Part Number | Description | DWG/ZIP | ||
| WTC6APB | Enclosure, 17”W x 16.3”H x 5”D, 6 Adapter Plate Capacity, W24PT Splice Tray | Download | Download | |
| WTC6APBD | Enclosure with lockable inner door, 17”W x 16.3”H x 5”D, 6 Adapter Plate Capacity, W24PT Splice Tray | Download | Download | |
| WTC8HDAPB | Enclosure, high-density, 17”W x 16.3”H x 5”D, 8-HD Adapter Plate Capacity, W24PT Splice Tray | Download | Download | |
| WTC8HDAPBD | Enclosure with lockable inner door, high-density, 8-HD Adapter Plate Capacity, W24PT Splice Tray | Download | Download | |
| WTC12APB | Enclosure, 18.5”W x 18”H x 6”D, 12 Adapter Plate Capacity, W48S Splice Tray | Download | Download | |
| WTC12APBD | Enclosure with lockable inner door, 18.5”W x 18”H x 6”D, 12 Adapter Plate Capacity, W48S Splice Tray | Download | Download | |
| WTC16HDAPB | Enclosure, high-density, 18.5”W x 18”H x 6”D, 16-HD Adapter Plate Capacity, W48S Splice Tray | Download | Download | |
| WTC16HDAPBD | Enclosure with lockable inner door, high-density, 18.5”W x 18”H x 6”D, 16-HD Adapter Plate Capacity, W48S Splice Tray | Download | Download | |
| WTC6/8LD | Inner Door | Download | Download | |
| WTC12/16LD | Inner Door | Download | Download | |
| ZDMB6 | Enclosure, Mini, 7"W x 6"H x 1.92"D, 1 Adapter Plate Capacity | Download | Download | |
| WTC12/24Bx | Legacy Enclosure with lockable inner door, 13"H x 12"W x 3.5"D, 4 Adapter Plate Capacity, W24PT Splice Tray | Download | Download | |
| WTC144B | Legacy Enclosure with hinged front door and rear base, 23"H x 17"W x 11"D, 24 Adapter Plate Capacity, W144S Splice Tray | Download | Download | |
*Adapter Plates and Splice Trays are sold separately, part information included for reference.
