MSDE® RF Transparent Enclosures & Accessories

Installation zone RECOMMENDATION
1
1
1
1

The MSDE (Multiple Service Distribution Enclosure) solution is designed primarily for MDU/residential installations. These rugged lightweight enclosures are constructed of UL 94-V0 ABS plastic and can be flush-mounted between standard 16" stud walls or surface mounted. Voice, Data and Video Distribution modules enable analog voice, VoIP, Broadband Internet, Ethernet/IP data and RF video to be distributed to multiple outlet locations or devices within a residence. The MSDE is the foundation of a wired Ethernet backbone that is essential to support the connected home.

Features

  • Mounting tabs for standard 16” on-center stud spacing
  • Enclosures mount flush with wall when using standard 2x4 studs and ½” drywall
  • Versatile pegboard mounting configuration
  • Accommodates OCC voice/data/RF video modules (MODP-)

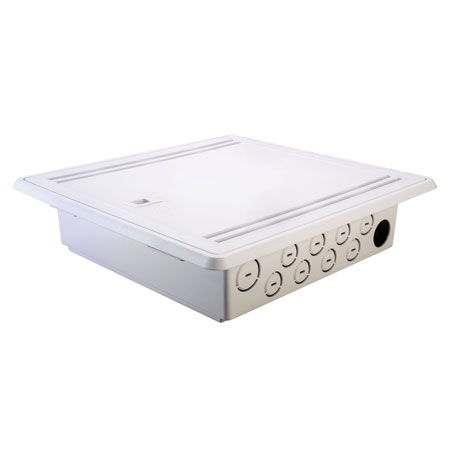

  • Multiple knockouts for cable entry
  • Minimizes wireless signal degradation
  • Hinged, vented doors for heat dissipation
  • Optional lock
  • Doors may be reverse mounted for left or right swing
  • Optional Network Mounting Bracket with versatile Velcro mounting strap accommodates modems, routers, switches or ONT devices
  • Optional 12-port unloaded mounting bracket accommodates KMJ series jacks and inserts. May be used to create custom multimedia patching solutions
  • Enclosures and Covers may be purchased individually or in 6-packs
  • Single Enclosure and Cover can be purchased together or separately
  • Pre-Configured Enclosure Kits with Modules available to order

Specifications

Download Drawing(s)
Part Number Description PDF DWG/ZIP

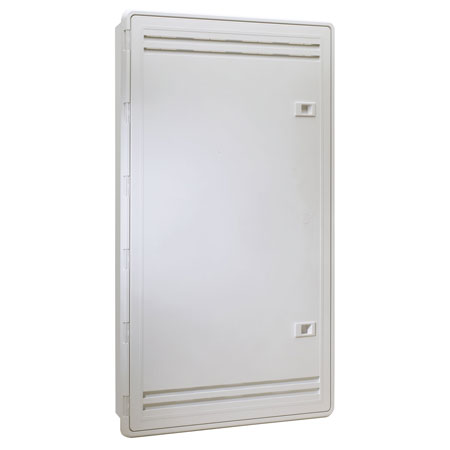

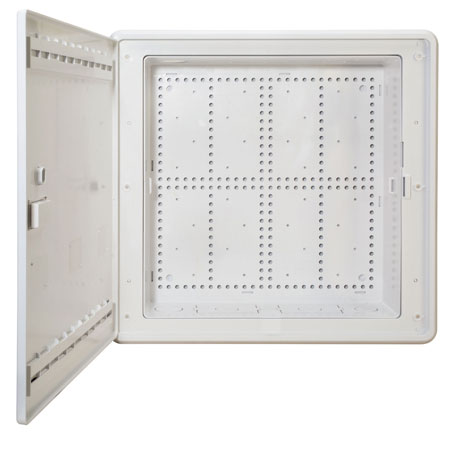

MSDE15P 15" Plastic Enclosure with Hinged Door Download Download
MSDE30P 30" Plastic Enclosure with Hinged Door Download Download
MSDE30PX 30" Plastic Enclosure with Oversized Hinged Door Download Download Quick Ship
MSDEPX-LOCK CAM Lock with Keys (for use with MSDE30PX ONLY) n/a n/a
MSDE15P-BOX 15" Plastic Enclosure Download Download
MSDE15P-BOX6 15" Plastic Enclosure, Bulk Pack of 6 pcs. Download Download
MSDE30P-BOX 30" Plastic Enclosure Download Download
MSDE30P-BOX6 30" Plastic Enclosure, Bulk Pack of 6 pcs. Download Download
MSDE15P-DOOR 15" Plastic Hinged Door Download Download
MSDE15P-DOOR6 15" Plastic Hinged Door, Bulk Pack of 6 pcs. Download Download
MSDE30P-DOOR 30" Plastic Hinged Door Download Download
MSDE30P-DOOR6 30" Plastic Hinged Door, Bulk Pack of 6 pcs. Download Download
MSDEP-LOCK CAM Lock with Keys (Plastic Enclosures) n/a n/a
MSDEP-NBKT Network Equipment Mounting Bracket Download Download
MODP-12PBKT Unloaded KMJ 12-Port Mounting Bracket Download Download
MSDE15PT406D66V4 15" ENCLOSURE/DOOR VOICE/CAT6 DATA/VIDEO KIT Download Download
MSDE30PT408D8V6 30" ENCLOSURE/DOOR, VOICE/CAT5E DATA/VIDEO KIT Download Download

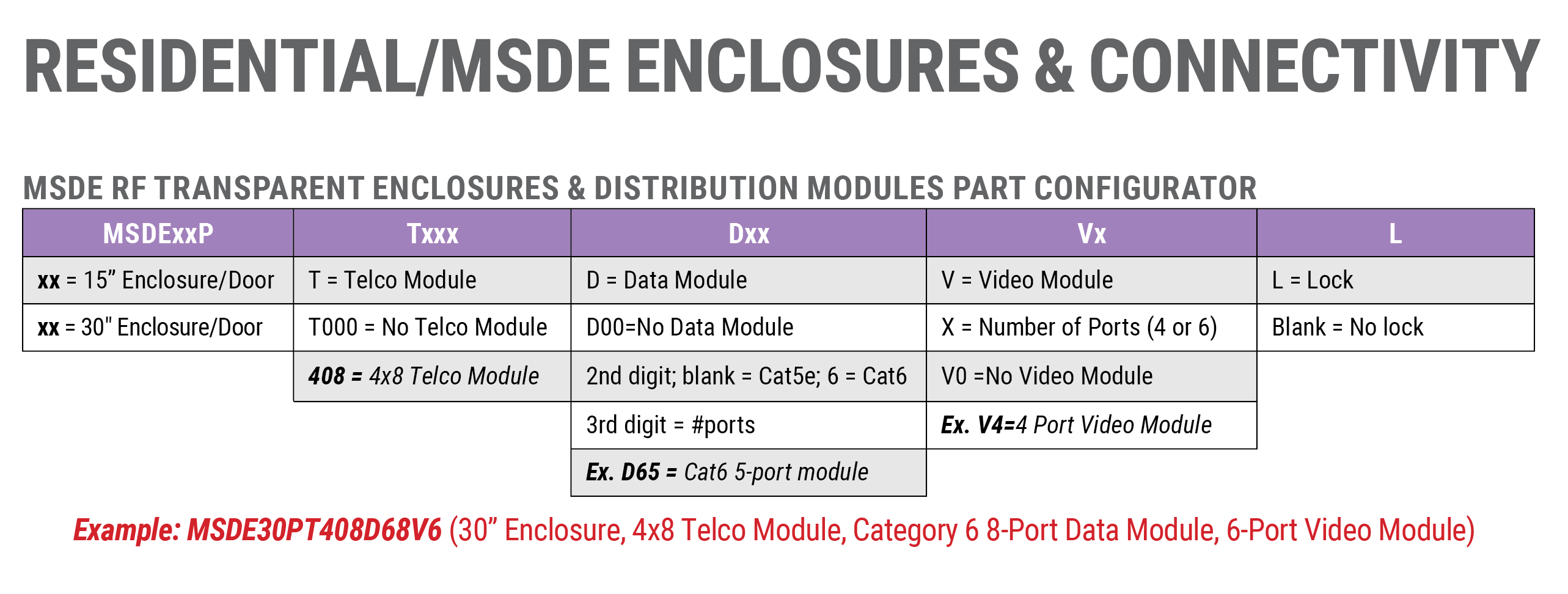

*See configuration table for other options.

Instruction Sheets

Talk to a knowledgeable OCC Expert that can find or customize a product to fit your specifications. 800-622-7711
