MSDE RF VIDEO MODULES (for plastic enclosures)

Installation zone RECOMMENDATION
1
1
1
1

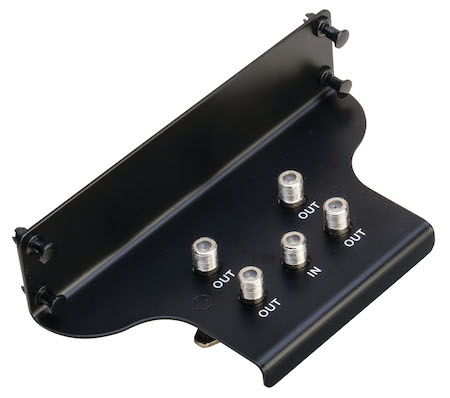

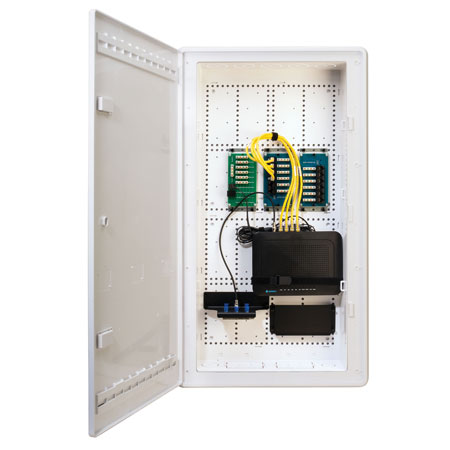

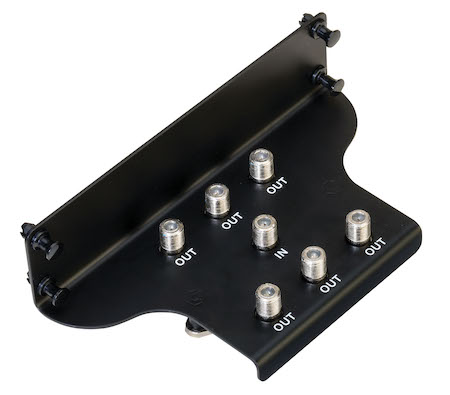

MSDE RF Video Modules provide the capability to distribute RF broadband video, such as cable TV to multiple locations throughout a residence and are bidirectional to support DOCSIS cable modem/set-top box applications. MSDE MODP-Vx video modules feature a robust metal case and easily mount to MSDE15P/30P enclosures using plastic push-pin fasteners.

Features

  • 5 - 1000 MHZ Bandwidth
  • F-Style Connectors
  • Vertical Mounting Eliminates Cable Stress
    * MODP Video Modules (Ex. MODP-Vx) Feature Black Metal Case with Push-Pin Fasteners for Quick and Easy Mounting to MSDE15P and MSDE30P Enclosures

Specifications

Download Drawing(s)
Part Number Description PDF DWG/ZIP

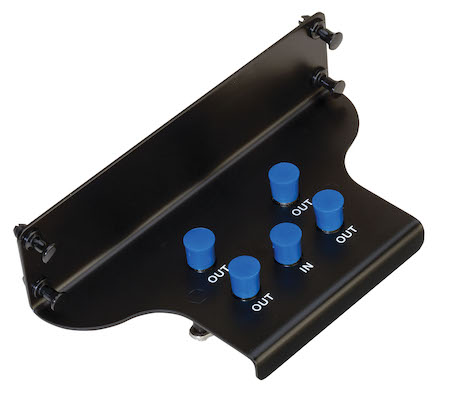

MODP-V4 RF Video Distribution Module, 1x4, 1GHz (Plastic MSDE) Download Download

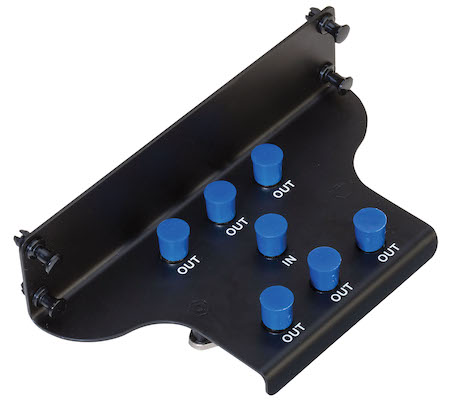

MODP-V6 RF Video Distribution Module, 1x6, 1GHz (Plastic MSDE) Download Download

Instruction Sheets
