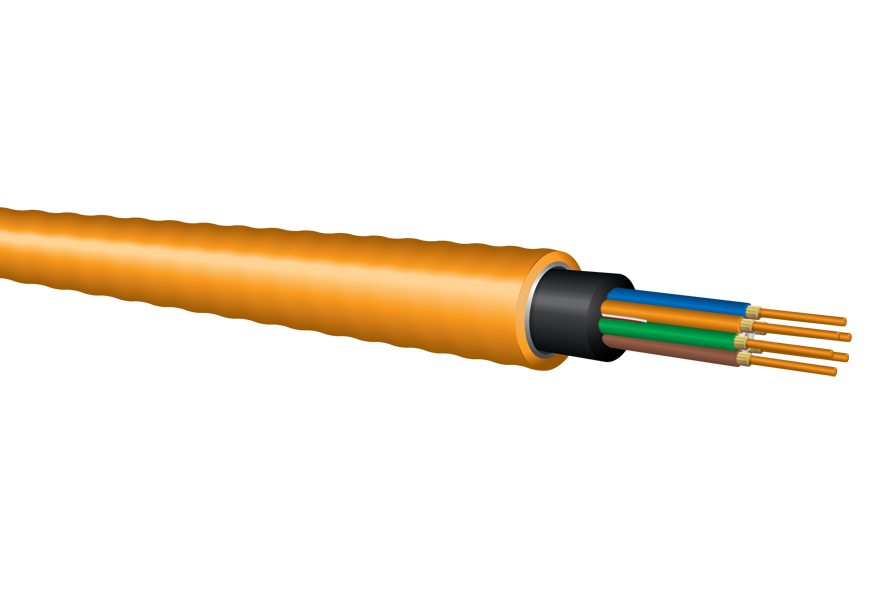

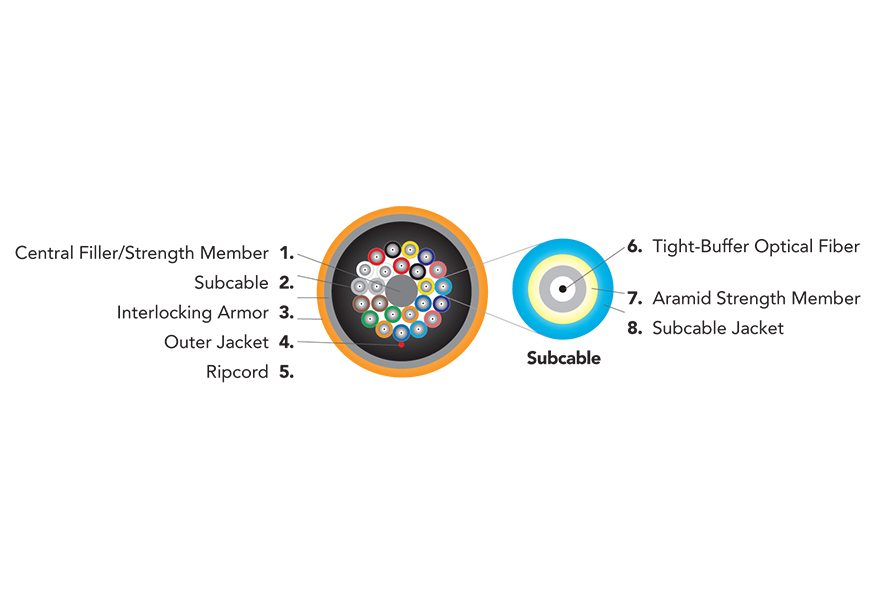

B-Series Breakout – Interlocking Armor (ILA) Riser Rated Cables

Installation zone RECOMMENDATION
1
1
1
1
  • Ideal for industrial and other installations requiring a metallic conduit
  • Interlocking armor may eliminate the need for conduit or innerduct, reducing installation costs

Features

  • Inner cable is a fully functional B-Series Breakout Riser Rated Cable
  • Cable materials are Indoor/Outdoor – UL-listed OFCR and UV, water and fungus resistant
  • UL listed in accordance with NEC section 770.179(b) for use in vertical runs in building risers or from floor to floor
  • Aluminum interlocking armor with PVC overjacket
  • Interlocking armor can be easily removed, leaving and intact inner cable
  • Greater flexibility than standard corrugated steel-armored (CST)cables
  • Ideal for locations that require conduit for cable protection
  • Wide operating temperature of -40°C to +85°C
  • 2.0mm and 2.5mm subunits available
  • Inner cable riser rated with PVC jacket

Characteristics

Characteristic 2.0mm subcables 2.5mm subcables
Operating Temp -40°C to +85°C -40°C to +85°C
Storage Temp -40°C to +85°C -40°C to +85°C
Install Temp -10°C to +60°C -10°C to +60°C
Flame Retardancy UL listed type OFCR (UL 1666) and FT4 (CSA C22.2 No. 232) UL listed type OFCR (UL 1666) and FT4 (CSA C22.2 No. 232)
Crush Resist 650 N/cm 650 N/cm
Impact Resist 20 impacts 20 impacts
Flex Resist 25 cycles 25 cycles
Jacket Type D D

Standards

OCC Indoor/Outdoor tight-buffered fiber optic cables meet the functional requirements of the following standards:

  • UL 1666
  • UL 1651
  • ICEA-S-83-596

Specifications

with 2.0mm subcables

Tensile Load Minimum Bend Radius
Fiber Count Part Number Part Number Configurator Diameter mm
(in)		 Weight kg/km
(lbs/1,000ft)		 Installation N
(lbs)		 Operation N
(lbs)		 Installation cm
(in)		 Longer Term cm
(in)
2 BE002D***9*RI2 13.6
(0.54) 		168.0
(113.0) 		1,350
(300) 		400
(90) 		27.2
(10.7) 		20.4
(8.0)
4 BE004D***9*RI2 14.6
(0.57) 		194.0
(130.0) 		1,350
(300) 		400
(90) 		29.2
(11.5) 		21.9
(8.6)
6 BE006D***9*RI2 15.6
(0.61) 		220.0
(148.0) 		1,350
(300) 		400
(90) 		21.2
(8.3) 		23.4
(9.2)
8 BE008D***9*RI2 17.2
(0.68) 		259.0
(174.0) 		1,350
(300) 		400
(90) 		34.4
(13.5) 		25.8
(10.2)
12 BE012D***9*RI2 18.7
(0.74) 		297.0
(200.0) 		1,350
(300) 		400
(90) 		37.4
(14.7) 		28.1
(11.1)
18 BE018D***9*RI2 20.7
(0.81) 		368.0
(247.0) 		1,350
(300) 		400
(90) 		41.4
(16.3) 		31.1
(12.2)
24 BE024D***9*RI2 22.8
(0.90) 		453.0
(304.0) 		1,350
(300) 		400
(90) 		45.6
(18.0) 		34.2
(13.5)

with 2.5mm subcables

Tensile Load Minimum Bend Radius
Fiber Count Part Number Part Number Configurator Diameter mm
(in)		 Weight kg/km
(lbs/1,000ft)		 Installation N
(lbs)		 Operation N
(lbs)		 Installation cm
(in)		 Longer Term cm
(in)
2 BX002D***9*RI2 14.6
(0.57) 		189.0
(127.0) 		1,350
(300) 		400
(90) 		29.2
(11.5) 		21.9
(8.6)
4 BX004D***9*RI2 16.1
(0.63) 		226.0
(152.0) 		1,350
(300) 		400
(90) 		32.2
(12.7) 		24.2
(9.5)
6 BX006D***9*RI2 17.7
(0.70) 		263.0
(177.0) 		1,350
(300) 		400
(90) 		35.4
(13.9) 		26.6
(10.5)
8 BX008D***9*RI2 19.7
(0.78) 		332.0
(223.0) 		1,350
(300) 		400
(90) 		39.4
(15.5) 		29.6
(11.7)
12 BX012D***9*RI2 22.2
(0.87) 		397.0
(267.0) 		1,350
(300) 		400
(90) 		44.4
(17.5) 		33.3
(13.1)
18 BX018D***9*RI2 23.3
(0.92) 		452.0
(304.0) 		1,350
(300) 		400
(90) 		46.6
(18.3) 		35.0
(13.8)
24 BX024D***9*RI2 25.8
(1.02) 		555.0
(373.0) 		1,350
(300) 		400
(90) 		51.6
(20.3) 		38.7
(15.2)
Talk to a knowledgeable OCC Expert that can find or customize a product to fit your specifications. 800-622-7711
