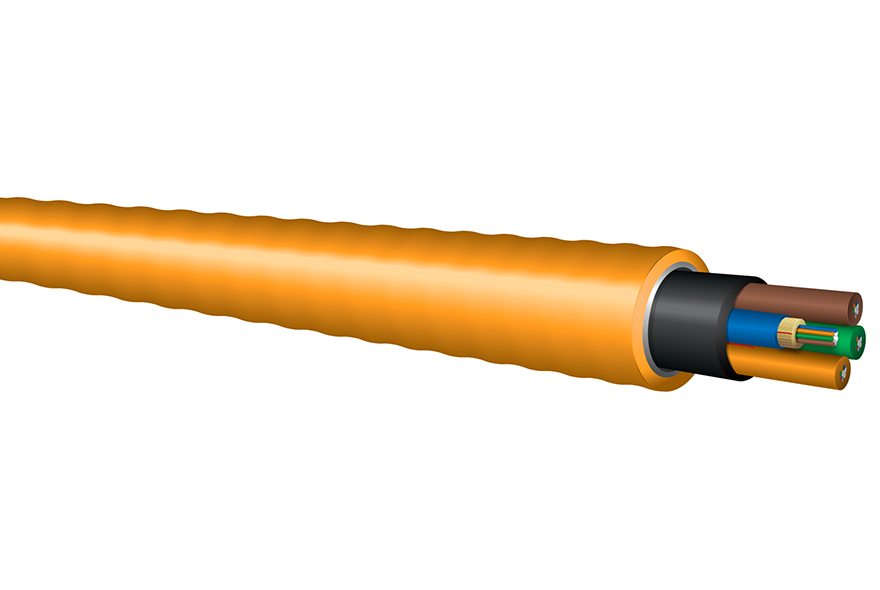

G-Series Subgrouping – Interlocking Armor (ILA) Riser Rated Cables

Installation zone RECOMMENDATION
1
1
1
1
  • Ideal for industrial and other installations requiring a metallic conduit
  • Interlocking armor may eliminate the need for conduit, reducing installation costs

Applications

  • Ideal for industrial and other installations requiring a metallic conduit
  • Interlocking armor may eliminate the need for conduit, reducing installation costs

Features

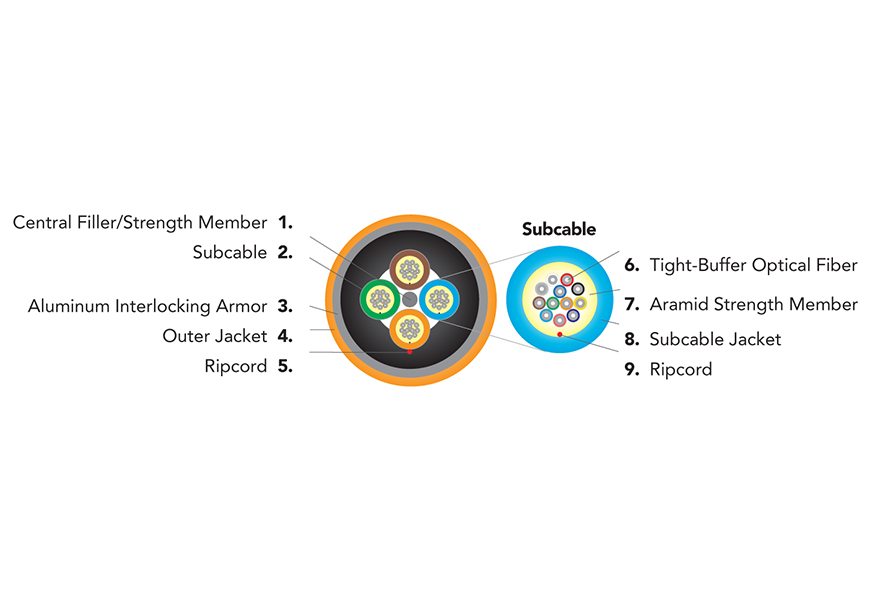

  • Inner cable is a fully functional G-Series Subgrouping Riser Rated Cable
  • Cable materials are Indoor/Outdoor – UL-listed OFCR and UV, water and fungus resistant
  • UL listed in accordance with NEC section 770.179(b) for use in verticle runs in building risers or from floor to floor
  • Aluminum interlocking armor with PVC overjacket
  • Greater flexibility than standard corrugated steel-armored (CST) cables
  • Ideal for locations that require conduit for cable protection
  • Wide operating temperature of -40°C to +85°C

Characteristics

Characteristic 6 Fiber Subunits 12 Fiber Subunits
Operating Temp -40°C to +85°C -40°C to +85°C
Storage Temp -40°C to +85°C -40°C to +85°C
Install Temp 0°C to +60°C 0°C to +60°C
Flame Retardancy UL listed type OFCR (UL 1666) and FT4 (CSA C22.2 No. 232) UL listed type OFCR (UL 1666) and FT4 (CSA C22.2 No. 232)
Crush Resist 650 N/cm 650 N/cm
Impact Resist 20 impacts 20 impacts
Flex Resist 25 cycles 25 cycles
Jacket Type D D

Standards

OCC Indoor/Outdoor tight-buffered fiber optic cables meet the functional requirements of the following standards:

  • UL 1666
  • UL 1651
  • ICEA-S-83-596

Specifications

6-Fiber (4.5mm) Subcables

Tensile Load Minimum Bend Radius
Fiber Count Part Number Part Number Configurator Diameter mm
(in)		 Weight kg/km
(lbs/1,000ft)		 Installation N
(lbs)		 Operation N
(lbs)		 Installation cm
(in)		 Longer Term cm
(in)
12 GB012D***9*RI2 22.8
(0.90) 		453.0
(304.0) 		1,350
(300) 		400
(90) 		45.6
(18.0) 		34.2
(13.5)
18 GB018D***9*RI2 22.8
(0.90) 		453.0
(304.0) 		1,350
(300) 		400
(90) 		45.6
(18.0) 		34.2
(13.5)
24 GB024D***9*RI2 22.8
(0.90) 		453.0
(304.0) 		1,350
(300) 		400
(90) 		45.6
(18.0) 		34.2
(13.5)
30 GB030D***9*RI2 24.9
(0.98) 		552.0
(371.0) 		1,350
(300) 		400
(90) 		49.8
(19.6) 		37.4
(14.7)
36 GB036D***9*RI2 25.9
(1.02) 		609.0
(409.0) 		1,350
(300) 		400
(90) 		51.8
(20.4) 		38.9
(15.3)

12-Fiber (5.5mm) Subcables

Tensile Load Minimum Bend Radius
Fiber Count Part Number Part Number Configurator Diameter mm
(in)		 Weight kg/km
(lbs/1,000ft)		 Installation N
(lbs)		 Operation N
(lbs)		 Installation cm
(in)		 Longer Term cm
(in)
24 GX024D***9*RI2 25.9
(1.02) 		586.0
(394.0) 		1,350
(300) 		400
(90) 		51.8
(20.4) 		38.9
(15.3)
36 GX036D***9*RI2 25.9
(1.02) 		586.0
(394.0) 		1,350
(300) 		400
(90) 		51.8
(20.4) 		38.9
(15.3)
48 GX048D***9*RI2 25.9
(1.02) 		586.0
(394.0) 		1,350
(300) 		400
(90) 		51.8
(20.4) 		38.9
(15.3)
