B-Series Breakout – Mil-Tac Cables
Installation zone RECOMMENDATION1
1
1
1
- Ground-tactical cable that is ideal for use in harsh environments where deployment and retrieval for reuse are required
- Ideal for applications that require termination of the subcables to a connector
Applications
- Ground-tactical cables are ideal for use in harsh environments where deployment and retrieval for reuse is required
- Ideal for applications that require termination of the subcables to a connector
Features
- Extremely strong, lightweight, rugged, survivable tight-buffered cables designed for military tactical field use and commercial applications
- Polyurethane jacketed for abrasion, cut and chemical resistance
- Core-locked® jacket for improved mechanical performance

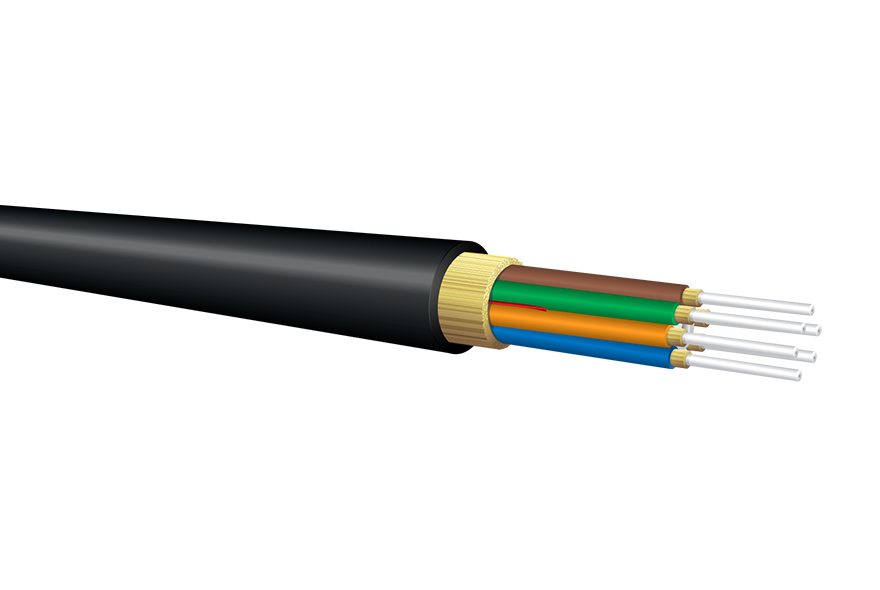

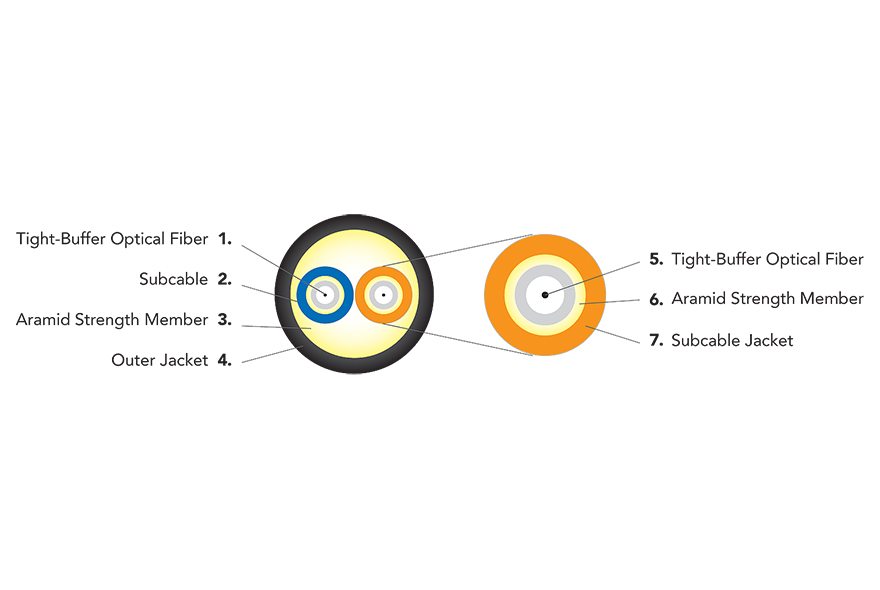

- Breakout cable design with individual color-coded subcables protecting each optical fiber
- Crush resistant and resilient, with two seperate layers of aramid strength members in the subcables for individual single-fiber connector and termination pin, and overall for termination to multiway connector backshells or other housing
- Helically stranded cable core for flexibility, deployment survivability and exceptional mechanical protection for the optical fibers
- Cables have been tested and are in use in military data communications applications worldwide
- Can be used outdoors for temporary deployment directly on the ground, in all terrains, including severe environments
- Suitable for industrial, mining and petrochemical environments - chemical resistant
- Round cable design for easy installation and survivability
- Ideally suited for use with MIL-C-38999 style military connectors - subcables terminate to individual pins and overall aramid strength member terminates to backshell
- 2.0 mm subcables standard
- Tactical Polyurethane (C) outer jacket material is standard. Flame- retardant tactical (V) and Low-Smoke Zero-Halogen (G) outer jacket materials are available
- Ultra-Fox Plus fiber used for the ultimate environmental and mechanical protection
OCC PROVIDED OPTIONS
- Mil-Tac cables prespooled on deployable reels for a ready-to-use product
- Mil-Tac cables can be pre-terminated with single-fiber or ruggedized multichannel connectors upon request
Characteristics
| Characteristic | C Jacket | V Jacket | G Jacket |
|---|---|---|---|
| Operating Temp | -55°C to +85°C | -55°C to +85°C | -55°C to +85°C |
| Storage Temp | -70°C to +85°C | -70°C to +85°C | -70°C to +85°C |
| Crush Resist | 2200 N/cm | 2200 N/cm | 2200 N/cm |
| Impact Resist | 1500 impacts | 1500 impacts | 1500 impacts |
| Flex Resist | 2000 cycles | 2000 cycles | 2000 cycles |
| Jacket Type | C | V | G |
Specifications
C Jacket
| Tensile Load | Minimum Bend Radius | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Fiber Count | Part Number | Part Number Configurator | Diameter mm (in) |
Weight kg/km (lbs/1,000ft) |
Installation N (lbs) |
Operation N (lbs) |
Installation cm (in) |
Longer Term cm (in) |
|
| 2 | B-002C***5KM |
6.5 (0.26) |
36.0 (24.0) |
2,200 (490) |
550 (120) |
6.5 (2.6) |
3.3 (1.3) |
||
| 4 | B-004C***5KM |
7.5 (0.30) |
47.0 (32.0) |
2,200 (490) |
550 (120) |
7.5 (3.0) |
3.8 (1.5) |
||
| 6 | B-006C***5KM |
8.5 (0.33) |
55.0 (37.0) |
2,400 (540) |
600 (130) |
8.5 (3.3) |
4.3 (1.7) |
||
| 8 | B-008C***5KM |
10.0 (0.39) |
76.0 (51.0) |
3,200 (720) |
800 (180) |
10.0 (3.9) |
5.0 (2.0) |
||
| 10 | B-010C***5KM |
11.5 (0.45) |
99.0 (67.0) |
4,000 (900) |
1,000 (220) |
11.5 (4.5) |
5.8 (2.3) |
||
| 12 | B-012C***5*M |
11.0 (0.43) |
86.0 (58.0) |
4,800 (1,080) |
1,200 (270) |
11.0 (4.3) |
5.5 (2.2) |
||
| 18 | B-018C***5KM |
13.5 (0.53) |
135.0 (91.0) |
7,200 (1,620) |
1,800 (400) |
13.5 (5.3) |
6.8 (2.7) |
||
| 24 | B-024C***5KM |
14.5 (0.57) |
150.0 (101.0) |
9,600 (2,160) |
2,400 (540) |
14.5 (5.7) |
7.3 (2.9) |
||
V Jacket
| Tensile Load | Minimum Bend Radius | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Fiber Count | Part Number | Part Number Configurator | Diameter mm (in) |
Weight kg/km (lbs/1,000ft) |
Installation N (lbs) |
Operation N (lbs) |
Installation cm (in) |
Longer Term cm (in) |
|
| 2 | B-002V***5KM |
6.5 (0.26) |
39.0 (26.0) |
2,200 (490) |
550 (120) |
6.5 (2.6) |
3.3 (1.3) |
||
| 4 | B-004V***5KM |
7.5 (0.30) |
49.0 (33.0) |
2,200 (490) |
550 (120) |
7.5 (3.0) |
3.8 (1.5) |
||
| 6 | B-006V***5KM |
8.5 (0.33) |
57.0 (38.0) |
2,400 (540) |
600 (130) |
8.5 (3.3) |
4.3 (1.7) |
||
| 8 | B-008V***5KM |
10.0 (0.39) |
79.0 (53.0) |
3,200 (720) |
800 (180) |
10.0 (3.9) |
5.0 (2.0) |
||
| 10 | B-010V***5KM |
11.5 (0.45) |
104.0 (70.0) |
4,000 (900) |
1,000 (220) |
11.5 (4.5) |
5.8 (2.3) |
||
| 12 | B-012V***5KM |
11.0 (0.43) |
90.0 (60.0) |
4,800 (1,080) |
1,200 (270) |
11.0 (4.3) |
5.5 (2.2) |
||
| 18 | B-018V***5KM |
13.5 (0.53) |
141.0 (95.0) |
7,200 (1,620) |
1,800 (400) |
13.5 (5.3) |
6.8 (2.7) |
||
| 24 | B-024V***5KM |
14.5 (0.57) |
155.0 (104.0) |
9,600 (2,160) |
2,400 (540) |
14.5 (5.7) |
7.3 (2.9) |
||
G Jacket
| Tensile Load | Minimum Bend Radius | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Fiber Count | Part Number | Part Number Configurator | Diameter mm (in) |
Weight kg/km (lbs/1,000ft) |
Installation N (lbs) |
Operation N (lbs) |
Installation cm (in) |
Longer Term cm (in) |
|
| 2 | B-002G***5KM |
6.5 (0.26) |
38.0 (26.0) |
2,200 (490) |
550 (120) |
6.5 (2.6) |
3.3 (1.3) |
||
| 4 | B-004G***5KM |
7.5 (0.30) |
48.0 (32.0) |
2,200 (490) |
550 (120) |
7.5 (3.0) |
3.8 (1.5) |
||
| 6 | B-006G***5KM |
8.5 (0.33) |
56.0 (38.0) |
2,400 (540) |
600 (130) |
8.5 (3.3) |
4.3 (1.7) |
||
| 8 | B-008G***5KM |
10.0 (0.39) |
78.0 (52.0) |
3,200 (720) |
800 (180) |
10.0 (3.9) |
5.0 (2.0) |
||
| 10 | B-010G***5KM |
11.5 (0.45) |
102.0 (69.0) |
4,000 (900) |
1,000 (220) |
11.5 (4.5) |
5.8 (2.3) |
||
| 12 | B-012G***5KM |
11.0 (0.43) |
89.0 (60.0) |
4,800 (1,080) |
1,200 (270) |
11.0 (4.3) |
5.5 (2.2) |
||
| 18 | B-018G***5KM |
13.5 (0.53) |
138.0 (93.0) |
7,200 (1,620) |
1,800 (400) |
13.5 (5.3) |
6.8 (2.7) |
||
| 24 | B-024G***5KM |
14.5 (0.57) |
153.0 (103.0) |
9,600 (2,160) |
2,400 (540) |
14.5 (5.7) |
7.3 (2.9) |
||
