D-Series Distribution – Mil-Tac Cables

Installation zone RECOMMENDATION
1
1
1
1
  • Ground-tactical cable that is ideal for use in harsh environments where deployment and retrieval for reuse are required

Applications

  • Ground-tactical cable that is ideal for use in harsh environments where deployment and retrieval for reuse is required

Features

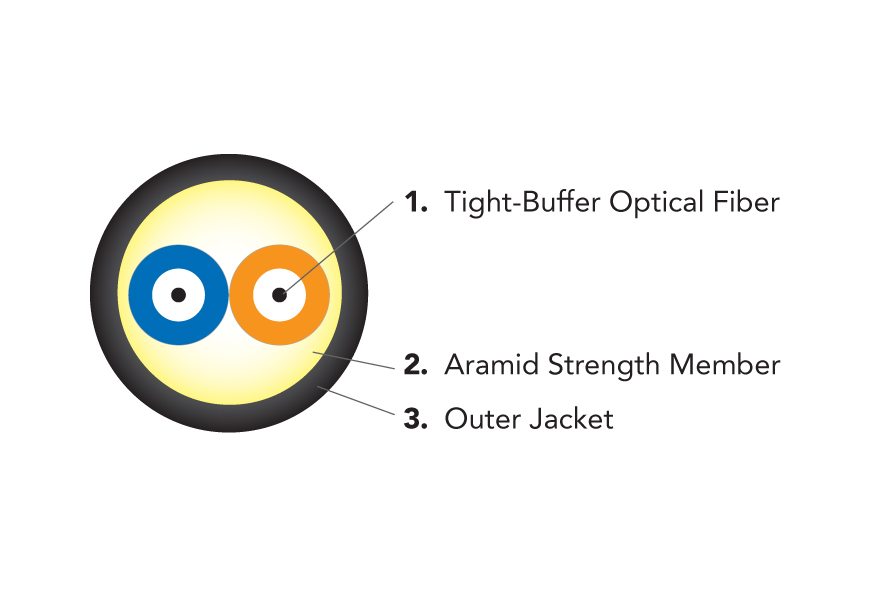

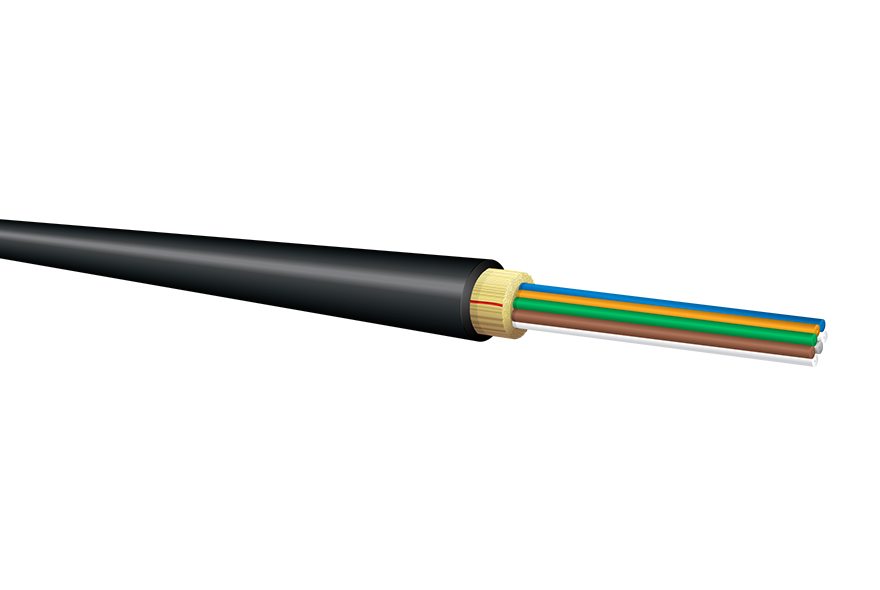

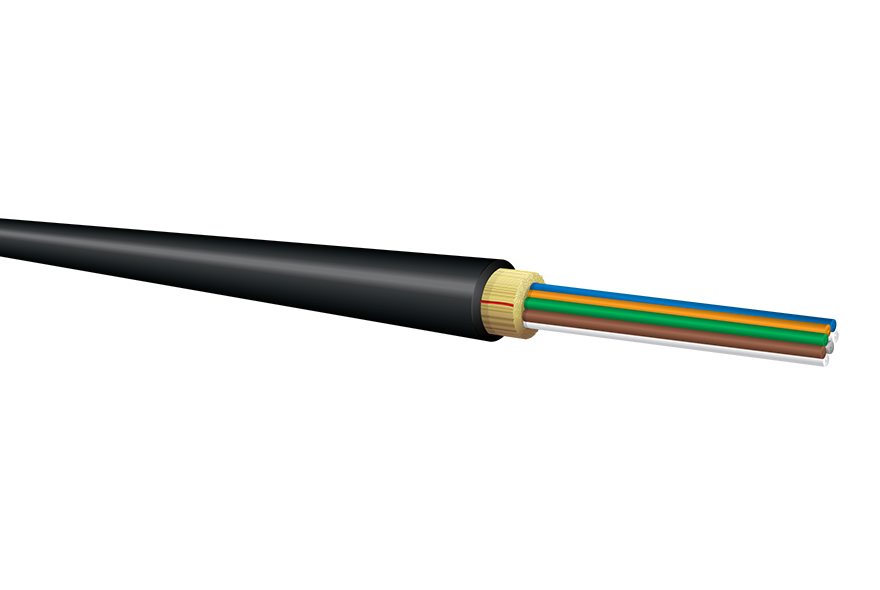

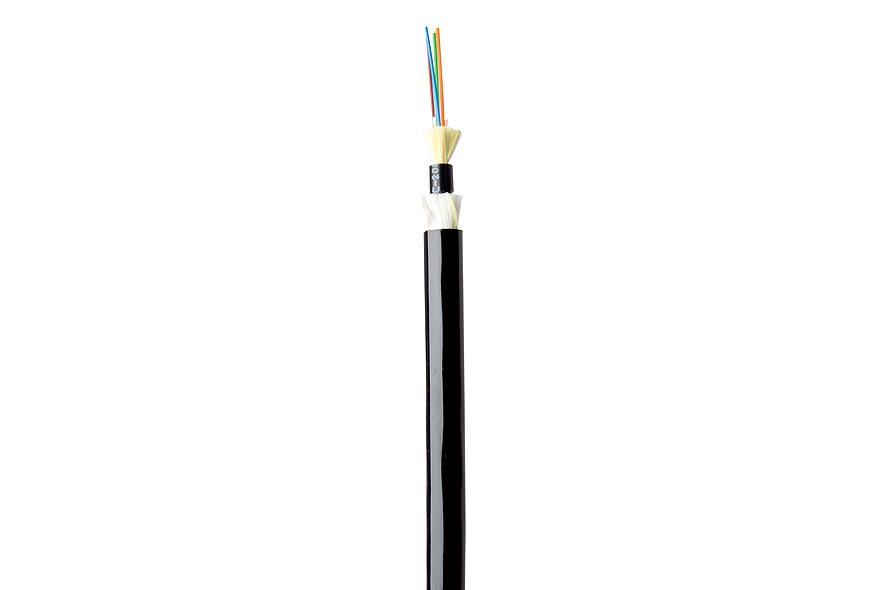

  • Extremely strong, lightweight, rugged, survivable tight-buffered cables designed for military tactical field use and commercial applications
  • Compact, round cable design for ease of transportation and deployment
  • Core-locked® jacket for improved mechanical performance
  • Designed for use in adverse environments where reduced size and weight are important
  • Helically stranded cable core for flexibility, deployment survivability and exceptional mechanical protection for the optical fibers
  • Cables have been tested and are in use in military data communications applications worldwide
  • Can be used outdoors for temporary deployment directly on the ground in all terrains, including severe environments
  • Suitable for industrial, mining and petrochemical environments - chemical resistant
  • Crush-resistant and resilient with a thick layer of aramid strength members
  • Polyurethane jacketed for abrasion, cut and chemical resistance
  • Most commonly used with ruggedized multiway military tactical field connectors, for maximum connector retention (400lbs.)
  • Tactical Polyurethane (C) outer jacket material is standard; Flame-Retardant Tactical (V) and Low-Smoke Zero-Halogen (G) outer jacket materials are available
  • Ultra-Fox Plus Fiber (500µm) used for environmental and mechanical protection

OCC PROVIDED OPTIONS

  • Mil-Tac cables pre-spooled on deployable reels for a ready-to-use product
  • Mil-Tac cables can be pre-terminated with single-fiber or ruggedized multichannel connectors upon request

Characteristics

Characteristic C Jacket V Jacket G Jacket
Operating Temp -55°C to +85°C -55°C to +85°C -55°C to +85°C
Storage Temp -70°C to +85°C -70°C to +85°C -70°C to +85°C
Crush Resist 1800 N/cm 1800 N/cm 1800 N/cm
Impact Resist 1500 impacts 1500 impacts 1500 impacts
Flex Resist 2000 cycles 2000 cycles 2000 cycles
Jacket Type C V G

Specifications

C Jacket

Tensile Load Minimum Bend Radius
Fiber Count Part Number Part Number Configurator Diameter mm
(in)
Weight kg/km
(lbs/1,000ft)
Installation N
(lbs)
Operation N
(lbs)
Installation cm
(in)
Longer Term cm
(in)

2 D-002C***5*M 5.0
(0.20)
21.0
(14.0)
1,800
(400)
600
(130)
5.0
(2.0)
2.5
(1.0)
4 D-004C***5*M 5.5
(0.22)
27.0
(18.0)
1,800
(400)
600
(130)
5.5
(2.2)
2.8
(1.1)
6 D-006C***5*M 6.0
(0.24)
32.0
(22.0)
1,800
(400)
600
(130)
6.0
(2.4)
3.0
(1.2)
8 D-008C***5*M 6.5
(0.26)
37.0
(25.0)
1,800
(400)
600
(130)
6.5
(2.6)
3.3
(1.3)
10 D-010C***5*M 6.5
(0.26)
38.0
(26.0)
2,100
(470)
700
(160)
6.5
(2.6)
3.3
(1.3)
12 D-012C***5*M 6.5
(0.26)
40.0
(28.0)
2,100
(470)
700
(160)
6.5
(2.6)
3.3
(1.3)
18 D-018C***5*M 7.5
(0.30)
48.0
(32.0)
2,400
(540)
800
(180)
7.5
(3.0)
3.8
(1.5)
24 D-024C***5*M 8.5
(0.33)
60.0
(40.0)
3,000
(670)
1,000
(220)
8.5
(3.3)
4.3
(1.7)

V Jacket

Tensile Load Minimum Bend Radius
Fiber Count Part Number Part Number Configurator Diameter mm
(in)
Weight kg/km
(lbs/1,000ft)
Installation N
(lbs)
Operation N
(lbs)
Installation cm
(in)
Longer Term cm
(in)

2 D-002V***5KM 5.0
(0.20)
24.0
(16.0)
1,800
(400)
600
(130)
5.0
(2.0)
2.5
(1.0)
4 D-004V***5KM 5.5
(0.22)
29.0
(19.0)
1,800
(400)
600
(130)
5.5
(2.2)
2.8
(1.1)
6 D-006V***5KM 6.0
(0.24)
34.0
(23.0)
1,800
(400)
600
(130)
6.0
(2.4)
3.0
(1.2)
8 D-008V***5KM 6.5
(0.26)
39.0
(26.0)
1,800
(400)
600
(130)
6.5
(2.6)
3.3
(1.3)
10 D-010V***5KM 6.5
(0.26)
40.0
(27.0)
2,100
(470)
700
(160)
6.5
(2.6)
3.3
(1.3)
12 D-012V***5KM 6.5
(0.26)
43.0
(29.0)
2,100
(470)
700
(160)
6.5
(2.6)
3.3
(1.3)
18 D-018V***5KM 7.5
(0.30)
51.0
(34.0)
2,400
(540)
800
(180)
7.5
(3.0)
3.8
(1.5)
24 D-024V***5KM 8.5
(0.33)
63.0
(42.0)
3,000
(670)
1,000
(220)
8.5
(3.3)
4.3
(1.7)

G Jacket

Tensile Load Minimum Bend Radius
Fiber Count Part Number Part Number Configurator Diameter mm
(in)
Weight kg/km
(lbs/1,000ft)
Installation N
(lbs)
Operation N
(lbs)
Installation cm
(in)
Longer Term cm
(in)

2 D-002G***5KM 5.0
(0.20)
22.0
(15.0)
1,800
(400)
600
(130)
5.0
(2.0)
2.5
(1.0)
4 D-004G***5KM 5.5
(0.22)
28.0
(19.0)
1,800
(400)
600
(130)
5.5
(2.2)
2.8
(1.1)
6 D-006G***5KM 6.0
(0.24)
33.0
(22.0)
1,800
(400)
600
(130)
6.0
(2.4)
3.0
(1.2)
8 D-008G***5KM 6.5
(0.26)
38.0
(26.0)
1,800
(400)
600
(130)
6.5
(2.6)
3.3
(1.3)
10 D-010G***5KM 6.5
(0.26)
39.0
(26.0)
2,100
(470)
700
(160)
6.5
(2.6)
3.3
(1.3)
12 D-012G***5KM 6.5
(0.26)
42.0
(28.0)
2,100
(470)
700
(160)
6.5
(2.6)
3.3
(1.3)
18 D-018G***5KM 7.5
(0.30)
49.0
(33.0)
2,400
(540)
800
(180)
7.5
(3.0)
3.8
(1.5)
24 D-024G***5KM 8.5
(0.33)
62.0
(42.0)
3,000
(670)
1,000
(220)
8.5
(3.3)
4.3
(1.7)
Talk to a knowledgeable OCC Expert that can find or customize a product to fit your specifications. 800-622-7711
