Category 5e 110-Style Patch Panels

Installation zone RECOMMENDATION
1
1
1
1

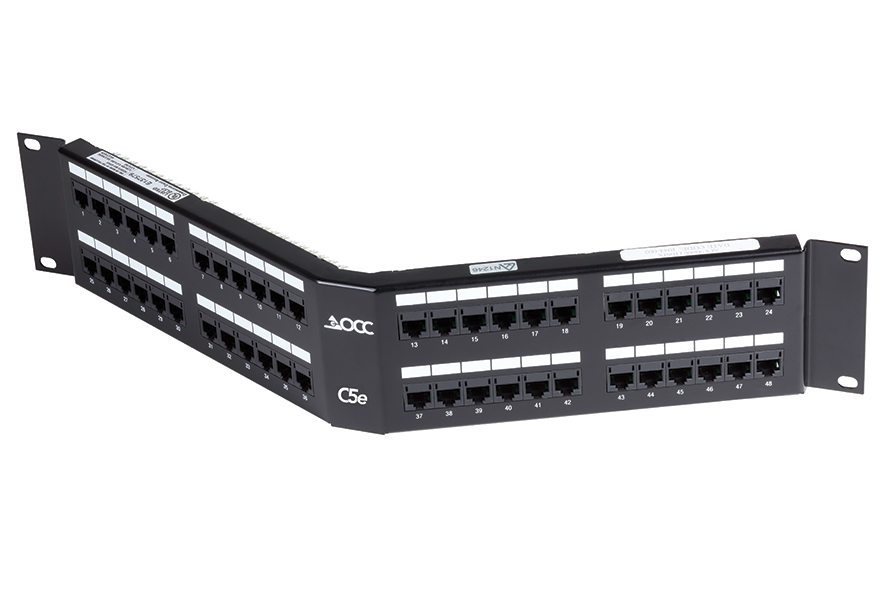

OCC's Category 5e patch panels incorporate our best design and application performance specifications ever. The Category 5e product line provides unmatched performance in premise connectivity. Designed for the most demanding network applications, OCC Category 5e patch panels  offer customers the highest level of headroom to any Category 5e link or channel specification.

Features

  • Comfortably exceeds TIA-568-C.2 Cat 5e requirements
  • ISO/IEC60603-7 compliant
  • Patented PC board technology
  • Constructed of cold rolled steel for durability
  • Rigid design provides solid frame for high-impact punch-down tools
  • Universal TIA 568A/B wiring configuration
  • IDC’s rated for 200 wire insertions
  • Write-on label fields
  • Cable strain-relief bar provided
  • Patch panels are available in both flat and angled configurations
  • Supports all IEEE Power over Ethernet (PoE) standards
  • Insulation resistance: 500MΩ minimum
  • Dielectric withstand: 1000 VAC RMS or 1414 VDC
  • DC current rating: 1.5 A per conductor at 20°C ambient de-rated to 0.75 A at 60°C ambient

Specifications

Download Drawing(s)
Part Number Description PDF DWG/ZIP
DCC1288/110A5E-R Rack Mount Patch Panel, 568A/B Wired, 12-port, 1U Download Download
DCC2488/110A5E-R Rack Mount Patch Panel, 568A/B Wired, 24-port, 1U Download Download Quick Ship
DCC4888/110A5E-R Rack Mount Patch Panel, 568A/B Wired, 48-port, 2U Download Download Quick Ship
ACC2488/110A5E-R Rack Mount Angled Patch Panel, 568A/B Wired, 24-port, 1U Download Download
ACC4888/110A5E-R Rack Mount Angled Patch Panel, 568A/B Wired, 48-port, 2U Download Download
PP12A5E-R Wall Mount Patch Panel, 568A/B Wired, 12-port with 89D Bracket Download Download
PP1288/110A5E-R Wall Mount Patch Panel, 568A/B Wired, 12-port Download Download
PP2488/110A5E-R Wall Mount Patch Panel, 568A/B Wired, 24-port Download Download

Related Documents

Please Login Here to access additional documents.

Talk to a knowledgeable OCC Expert that can find or customize a product to fit your specifications. 800-622-7711
