Characteristic | Plenum (Indoor/Outdoor) |
---|---|
Operating Temp | -40°C to +85°C |
Storage Temp | -40°C to +85°C |
Install Temp | 0°C to +60°C |
Flame Retardancy | UL Listed Type OFCP (ANSI/NFPA 262) and FT6 (CSA C22.2 No. 232) |
Crush Resist | 650 N/cm |
Impact Resist | 20 impacts |
Flex Resist | 25 cycles |
Jacket Type | K |

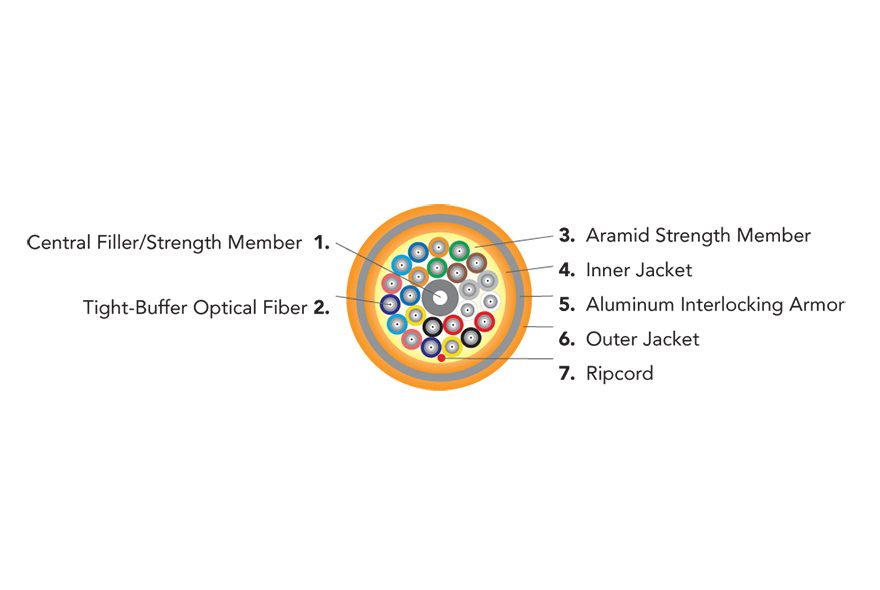

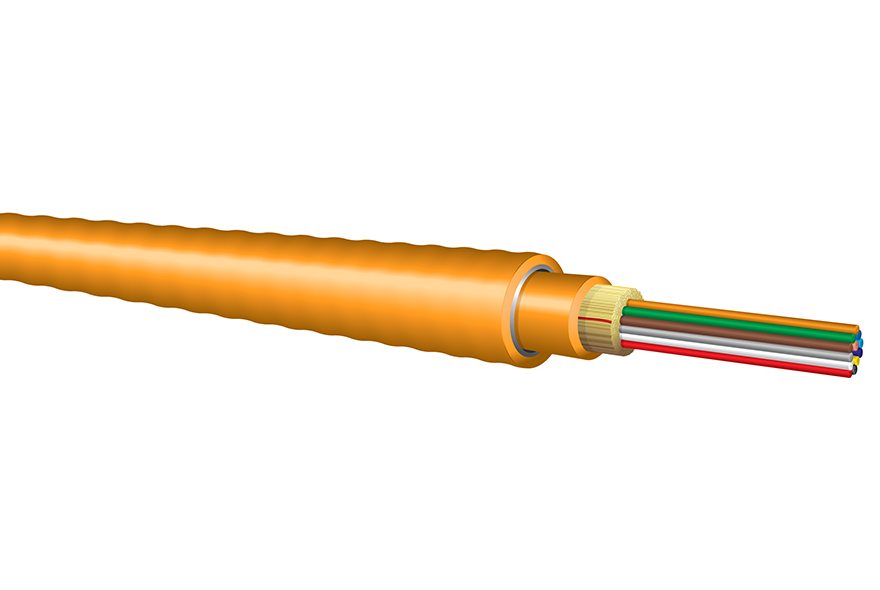

OCC Indoor/Outdoor tight-buffered fiber optic cables meet the functional requirements of the following standards:
Tensile Load | Minimum Bend Radius | ||||||||
---|---|---|---|---|---|---|---|---|---|
Fiber Count | Part Number | Part Number Configurator | Diameter mm (in) |
Weight kg/km (lbs/1,000ft) |
Installation N (lbs) |
Operation N (lbs) |
Installation cm (in) |
Longer Term cm (in) |
|
2 | DX002K***9*PI6 |
13.1 (0.52) |
175.0 (118.0) |
1,350 (300) |
400 (90) |
26.2 (10.3) |
19.7 (7.8) |
||
4 | DX004K***9*PI6 |
13.1 (0.52) |
175.0 (118.0) |
1,350 (300) |
400 (90) |
26.2 (10.3) |
19.7 (7.8) |
||
6 | DX006K***9*PI6 |
13.1 (0.52) |
175.0 (118.0) |
1,350 (300) |
400 (90) |
26.2 (10.3) |
19.7 (7.8) |
||
12 | DX012K***9*PI6 |
14.1 (0.56) |
209.0 (140.0) |
1,350 (300) |
400 (90) |
28.2 (11.1) |
21.2 (8.3) |
||
18 | DX018K***9*PI6 |
14.1 (0.56) |
209.0 (140.0) |
1,350 (300) |
400 (90) |
28.2 (11.1) |
21.2 (8.3) |
||
24 | DX024K***9*PI6 |
16.1 (0.63) |
264.0 (177.0) |
1,350 (300) |
400 (90) |
32.2 (12.7) |
24.2 (9.5) |
||
36 | DX036K***9*PI6 |
16.1 (0.63) |
273.0 (183.0) |
1,350 (300) |
400 (90) |
32.2 (12.7) |
24.2 (9.5) |
||
48 | DX048K***9*PI6 |
17.7 (0.70) |
320.0 (215.0) |
1,350 (300) |
400 (90) |
35.4 (13.9) |
26.6 (10.5) |
||
72 | DX072K***9*PI6 |
20.7 (0.81) |
456.0 (306.0) |
1,350 (300) |
400 (90) |
41.4 (16.3) |
31.1 (12.2) |
||
96 | DX096K***9*PI6 |
21.7 (0.85) |
511.0 (343.0) |
1,350 (300) |
400 (90) |
43.4 (17.1) |
32.6 (12.8) |
Click the symbol in the Part Number Configurator column above to a build specification sheet with specific part number information.
