DX-Series Distribution – Outside Plant Cables

Installation zone RECOMMENDATION
1
1
1
1

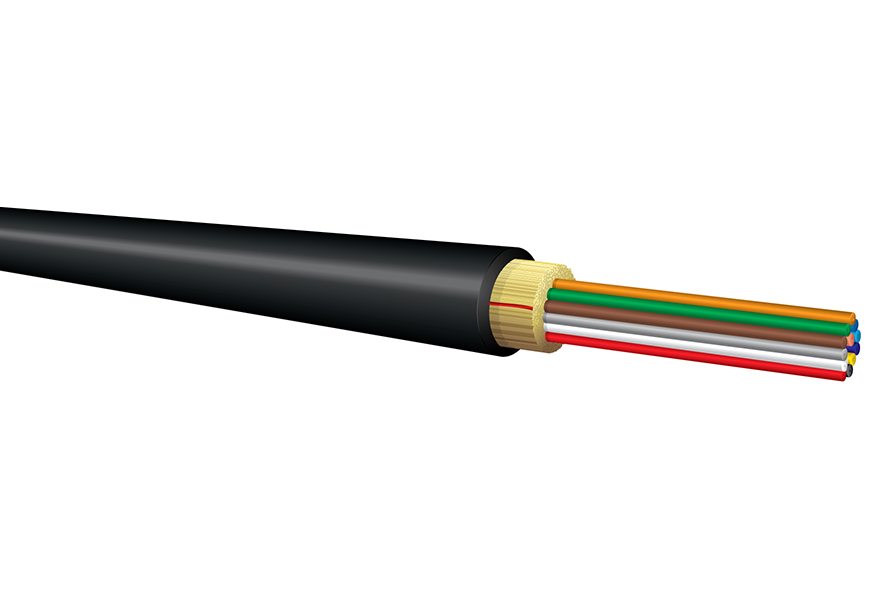

Outdoor distribution cable for duct or aerial lash installations along utility poles for cable television, telecom or other outside plant campus backbone applications

Applications

  • Outdoor distribution cable for duct or aerial lash installations along utility poles for cable television, telecom or other outside plant campus backbone applications

Features

  • Tight-buffered construction for easy, direct connector termination or splicing
  • Polyethylene outer cable jacket for excellent UV and weather resistance
  • High performance tight-buffer on the optical fibers for excellent environmental and mechanical protection
  • Wide operating temperature of -40°C to +85°C
  • 900µm buffer eliminates the need for costly and time-consuming installation of fanout kits or pigtail splices because connectors terminate directly to the fiber
  • All-dielectric design does not require grounding or bonding

Characteristics

Characteristic Outside Plant
Operating Temp -40°C to +85°C
Storage Temp -55°C to +85°C
Install Temp -30°C to +60°C
Crush Resist 1500 N/cm
Impact Resist 1000 impacts
Flex Resist 1000 cycles
Jacket Type A

Standards

OCC's outside plant tight-buffered fiber optic cables meet the functional requirements of the following standards:

  • ICEA-S-87-640
  • TIA-568
  • TIA-598

Specifications

Outside Plant

Tensile Load Minimum Bend Radius
Fiber Count Part Number Part Number Configurator Diameter mm
(in)		 Weight kg/km
(lbs/1,000ft)		 Installation N
(lbs)		 Operation N
(lbs)		 Installation cm
(in)		 Longer Term cm
(in)
2 DX002A***9KA 6.3
(0.25) 		29.0
(20.0) 		2,670
(600) 		890
(200) 		12.6
(5.0) 		6.3
(2.5)
4 DX004A***9KA 6.3
(0.25) 		29.0
(20.0) 		2,670
(600) 		890
(200) 		12.6
(5.0) 		6.3
(2.5)
6 DX006A***9KA 6.3
(0.25) 		29.0
(20.0) 		2,670
(600) 		890
(200) 		12.6
(5.0) 		6.3
(2.5)
8 DX008A***9KA 6.9
(0.27) 		39.0
(26.0) 		2,800
(630) 		900
(202) 		13.8
(5.4) 		6.9
(2.7)
12 DX012A***9KA 7.9
(0.31) 		53.0
(36.0) 		2,800
(630) 		900
(202) 		15.8
(6.2) 		7.9
(3.1)
18 DX018A***9KA 7.9
(0.31) 		57.0
(38.0) 		2,800
(630) 		900
(202) 		15.8
(6.2) 		7.9
(3.1)
24 DX024A***9KA 9.5
(0.37) 		77.0
(52.0) 		3,000
(670) 		1,000
(220) 		19.0
(7.5) 		9.5
(3.7)
30 DX030A***9KA 9.7
(0.38) 		72.0
(48.0) 		3,000
(670) 		1,000
(220) 		19.4
(7.6) 		9.7
(3.8)
36 DX036A***9KA 9.7
(0.38) 		71.0
(48.0) 		3,000
(670) 		1,000
(220) 		19.4
(7.6) 		9.7
(3.8)
48 DX048A***9KA 10.8
(0.43) 		91.0
(61.0) 		4,200
(942) 		1,400
(313) 		21.5
(8.5) 		10.8
(4.3)
Click the symbol in the Part Number Configurator column above to a build specification sheet with specific part number information.
