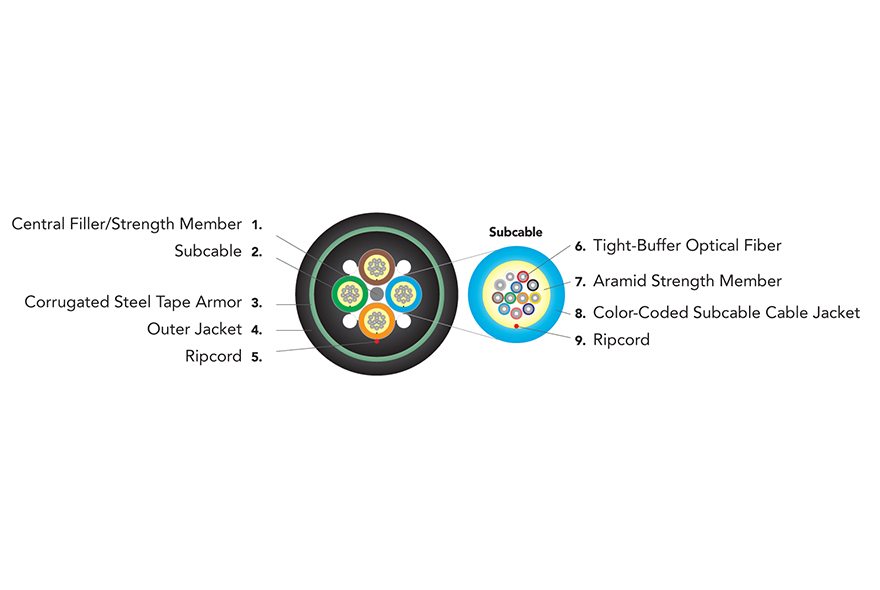

G-Series Subgrouping – Corrugated Steel Tape (CST) Armored Cable

Installation zone RECOMMENDATION
1
1
1
1
  • Ideal for installations where direct burial or rodent protection is required
  • Design allows subcables to be routed to multiple locations such as wiring racks and closets
  • Ideal for installations requiring an extremely rugged and reliable cable design where maximum mechanical and environmental protection is necessary
  • Easiest cable to install where routing of cables to multiple locations is desired

Features

  • Inner cable is a fully functional G-Series Subgrouping riser-rated cable
  • High-performance components and construction
  • The steel-armor is easily removed with an internal ripcord, leaving a fully functional intact riser-rated inner cable with original cable markings for identification
  • Helically stranded core for greater flexibility and mechanical protection of the optical fibers
  • Multifiber color-coded subcables, each similar to the D-Series Distribution cable, are easy to identify for improved cable management during installation
  • Subgrouping cable design permits mid-span access
  • Polyethylene(A) outer jacket for excellent UV and weathering resistance
  • Ideal for use in point-to-point runs in adverse environments
  • Wide operating temperature range of -40°C to +85°C
  • High-performance 900µm tight-buffered coating on each optical fiber for environmental and mechanical protection
  • Best design for multimode and single-mode fiber hybrid cables
  • Available with 6-fiber(4.5mm) or 12-fiber(5.5mm) subgroups
  • 12 to 72 fibers

Characteristics

Characteristic 6-Fiber subcables 12-Fiber subcables
Operating Temp -40°C to +85°C -40°C to +85°C
Storage Temp -55°C to +85°C -55°C to +85°C
Install Temp -10°C to + 60°C (cable tem.) -10°C to + 60°C (cable tem.)
Crush Resist 440 N/cm 440 N/cm
Impact Resist 20 impacts 20 impacts
Flex Resist 25 cycles 25 cycles

Specifications

6-Fiber subcables

Tensile Load Minimum Bend Radius
Fiber Count Part Number Part Number Configurator Diameter mm
(in)		 Weight kg/km
(lbs/1,000ft)		 Installation N
(lbs)		 Operation N
(lbs)		 Installation cm
(in)		 Longer Term cm
(in)
12 GB012D***9KAA2 21.4
(0.84) 		392.0
(263.0) 		2,700
(600) 		600
(135) 		32.1
(12.6) 		21.4
(8.4)
18 GB018D***9KAA2 21.4
(0.84) 		392.0
(263.0) 		2,700
(600) 		600
(135) 		32.1
(12.6) 		21.4
(8.4)
24 GB024D***9KAA2 21.4
(0.84) 		392.0
(263.0) 		2,700
(600) 		600
(135) 		32.1
(12.6) 		21.4
(8.4)
30 GB030D***9KAA2 22.4
(0.88) 		427.0
(287.0) 		2,700
(600) 		600
(135) 		33.6
(13.2) 		22.4
(8.8)
36 GB036D***9KAA2 24.0
(0.94) 		486.0
(327.0) 		2,700
(600) 		600
(135) 		35.3
(13.9) 		23.5
(9.3)

12-Fiber subcables

Tensile Load Minimum Bend Radius
Fiber Count Part Number Part Number Configurator Diameter mm
(in)		 Weight kg/km
(lbs/1,000ft)		 Installation N
(lbs)		 Operation N
(lbs)		 Installation cm
(in)		 Longer Term cm
(in)
24 GX024D***9KAA2 23.5
(0.93) 		460.0
(309.0) 		2,700
(600) 		600
(135) 		35.3
(13.9) 		23.5
(9.3)
36 GX036D***9KAA2 23.5
(0.93) 		460.0
(309.0) 		2,700
(600) 		600
(135) 		35.3
(13.9) 		23.5
(9.3)
48 GX048D***9KAA2 23.5
(0.93) 		460.0
(309.0) 		2,700
(600) 		600
(135) 		35.3
(13.9) 		23.5
(9.3)
60 GX060D***9KAA2 25.5
(1.00) 		528.0
(355.0) 		2,700
(600) 		600
(135) 		38.3
(15.1) 		25.5
(10.0)
72 GX072D***9KAA2 27.3
(1.07) 		601.0
(404.0) 		2,700
(600) 		600
(135) 		41.0
(16.1) 		27.3
(10.7)
