Limited Axcess Jacks

Installation zone RECOMMENDATION
1
1
1
1
  • OCC's patented Limited Axcess System provides the capability to implement enhanced physical network security and segmentation through the use of specially designed outlet jacks and patch cords. Initially designed for the military, the Limited Axcess system features uniquely keyed, color-coded jack bezels and patch cord boots that provide two layers of physically restrictive network security.
  • 2-Layer Physical Security

Layer 1: Limited Axcess

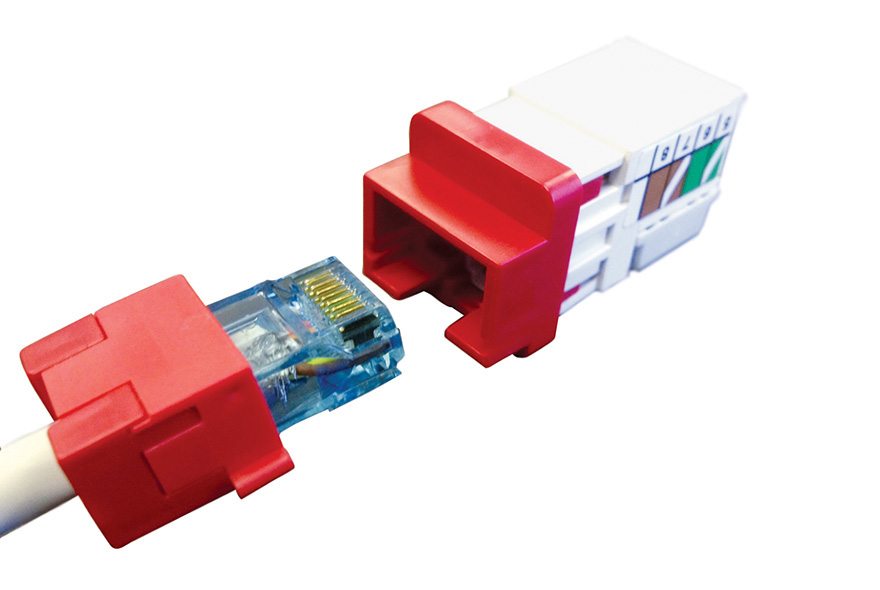

  • Limited Axcess jacks only accept patch cords with Limited Axcess modular plugs. Standard RJ45 plugs cannot be inserted into Limited Axcess jacks.

Layer 2: Physical Network Segmentation

  • Limited Axcess provides the capability to limit physical access to specific network ports through the use of color-coded
    jack bezels and patch cord boots. Example: Only users with a Limited Axcess patch cord with a red boot can connect to
    red Limited Axcess outlet jacks.

Applications

  • Military installations
  • Hospitals
  • Schools
  • Airport terminals
  • Classified corporate networks
  • Any public access area
  • 2.5G/5GBASE-T Gigabit Ethernet
  • 10GBASE-T Ethernet
  • 1000BASE-T Gigabit Ethernet
  • 100BASE-TX Fast Ethernet
  • 10BASE-T Ethernet
  • Broadband Video
  • 155/622 Mbps ATM
  • Analog Voice/VOiP
  • PoE, PoE+, and PoE++

Features

  • The Limited Axcess system enables network administrators to easily segregate users to specific networks by simply using a Limited Axcess conversion patch cord color-coded and keyed specifically to the appropriate outlet jacks. Whether you control access to your network for security clearance, confidentiality within your office space or simply to prohibit public access, the Limited Axcess product line will provide physical control of user connectivity for the network administrator.
  • Layer 1 limited physical access may be deployed independently or in conjunction with Layer 2 network segmentation

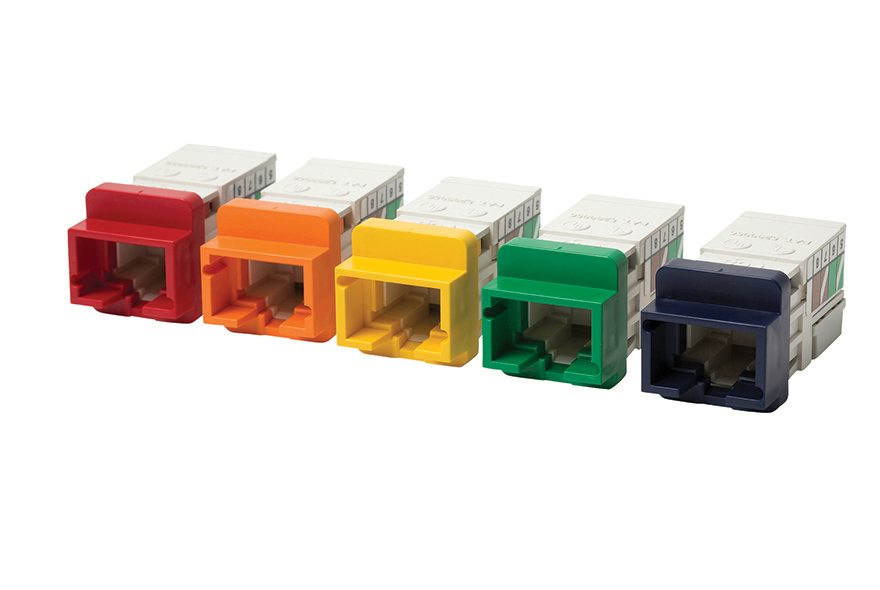

  • Available in 10 different colored keyed bezel and boot combinations
  • Conversion patch cords available to connect standard Ethernet hardware to the Limited Axcess network
  • Exceeds TIA-568-C.2 Category 6A performance
  • Supports 10 Gigabit Ethernet Performance
  • Supports all IEEE Power over Ethernet (PoE) standards
  • UL listed communications circuit accessory

Specifications

Download Drawing(s)
Part Number Description PDF DWG/ZIP
LA6Axx Limited Axcess Cat 6a RJ45 jack with keyed bezel Download Download

Replace "xx" with color code from chart to the right.
