BHP-Series – Multimedia Panels

Installation zone RECOMMENDATION
1
1
1
1

For multimedia applications, OCC offers a universal rack mount patch panel for termination and cable management only. The BHP panel system is well suited for multi-application cabling environments and with OCC's snap-in adapter plates and cassette modules, these panels can be installed in a variety of combinations.

Features

  • Constructed of 16 gauge steel with a black powder coat finish
  • Strain relief bar offers enhanced cable management
  • Tie wraps included for controlled cable
  • Accommodates any OCC snap-in adapter plate or cassette module

Specifications

Download Drawing
Part Number Description Rack Units Ports Adapter Plates Splice Capacity Splice Kits PDF DWG/ZIP

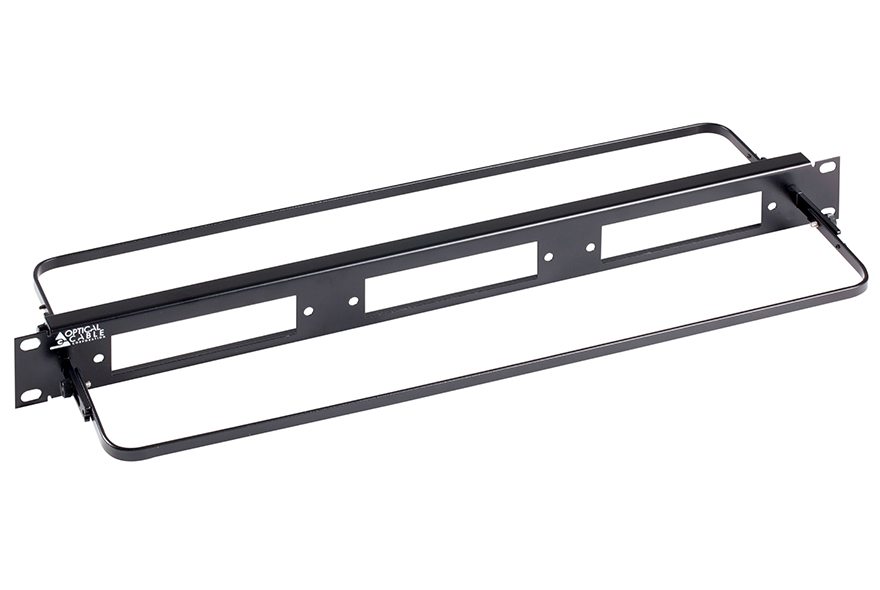

BHP3 - Panel Universal Patch Panels, 1 RU, 18-port Capacity, holds up to 3 Adapter Plates (not included) 1 18 3 Download Download
BHP6 - Panel Universal Patch Panels, 2 RU, 36-port Capacity, holds up to 6 Adapter Plates (not included) 2 36 6 Download Download

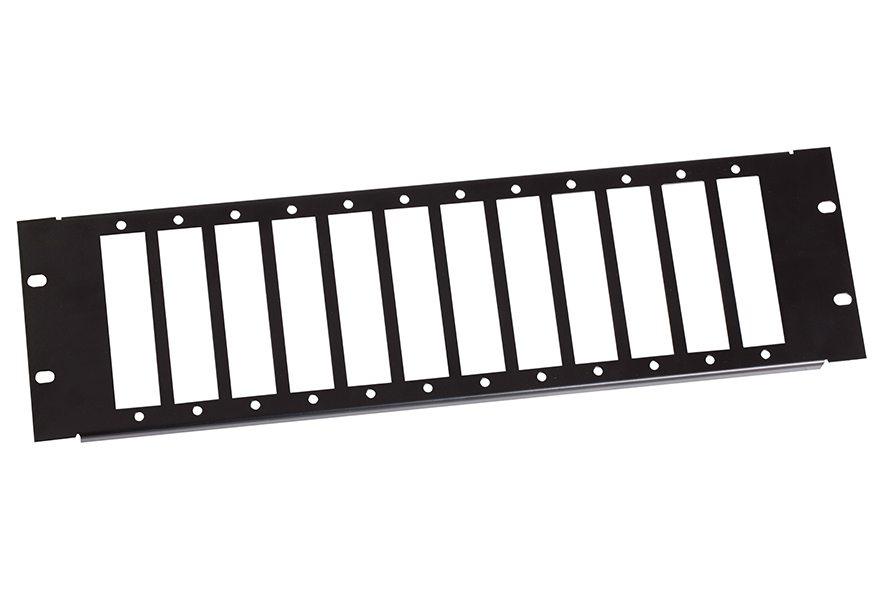

BHP72 -Plate Universal Patch Panels, 3 RU, 72-port Capacity, holds up to 12 Adapter Plates (not included) 3 72 12 Download Download
BHP144 - Plate Universal Patch Panels, 6 RU, 144-port Capacity, holds up to 24 Adapter Plates (not included) 6 144 24 Download Download
