Fiber Splice Cassette

Installation zone RECOMMENDATION
1
1
1
1

Introducing the all new Fiber Splice Cassette designed for quick and easy installation, saving you time and frustration. The Fiber Splice Cassette is a flexible, versatile, and scalable part of the OCC Enterprise Solution.

Applications

  • TELECOMMUNICATIONS CLOSETS
  • DATA CENTERS
  • CUSTOMER PREMISE
  • LOCAL AREA NETWORKS
  • WIDE AREA NETWORKS
  • REMOTE TERMINALS
  • DISTRIBUTED ANTENNA SYSTEMS (DAS)

Features

  • Each pre-terminated splice cassette includes splice holder(s), cable retention holder(s), 40mm splice shrink sleeves, fi ber pigtails, and a populated adapter plate.
  • Designed to terminate up to 24-fi bers.
  • Splice blocks include a patent-pending double sided access, designed to hold 12 splice sleeves.

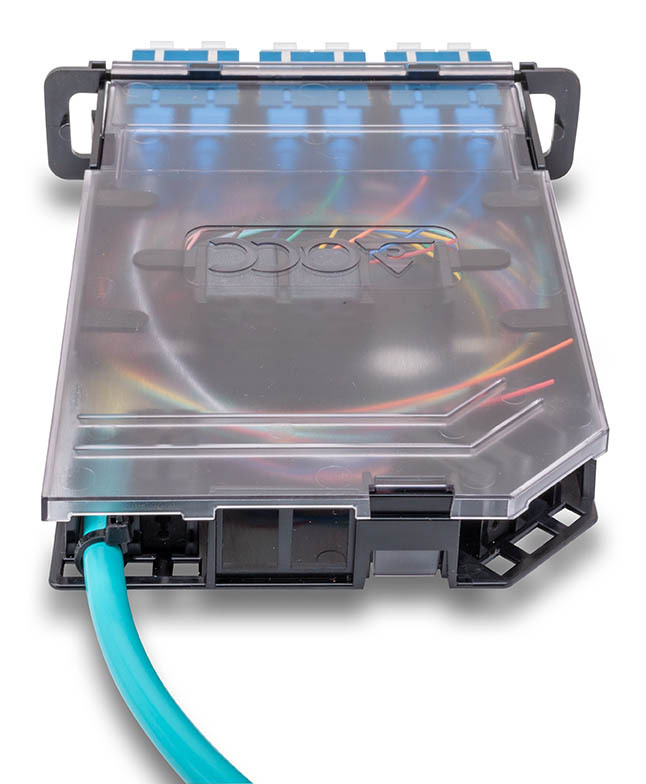

  • Clear cover allows for quick and easy visual inspection.
  • Backward compatible to most of our standard 600 series rack, wall, and zone fi ber enclosures.
  • Fits a variety of cable applications, including tight buffered, fi ber units, micro-distribution, and loose tube.
  • Removable adapter plate creates an easier installation experience and quicker cable management.
  • New latch design for inserting into fi ber enclosure - no “push-pin” holders needed.
  • Optional MTP/MPO trunk cable entry.

Specifications

Download Drawing(s)
Part Number Description PDF DWG/ZIP
FSCS112DSCP SPLICE CASSETTE, SC X 12, 62.5μm OM1, SPLICE, WITH FIBER PIGTAILS Download n/a
FSCS212DSCP SPLICE CASSETTE, SC X 12, 50μm OM2, SPLICE, WITH FIBER PIGTAILS Download n/a
FSCS312DSCP SPLICE CASSETTE, SC X 12, 50μm OM3, SPLICE, WITH FIBER PIGTAILS Download n/a
FSCS412DSCP SPLICE CASSETTE, SC X 12, 50μm OM4, SPLICE, WITH FIBER PIGTAILS Download n/a
FSCS812DSCP SPLICE CASSETTE, SC X 12, SM, SPLICE, WITH FIBER PIGTAILS Download n/a
FSCSA12DSCP SPLICE CASSETTE, SC X 12, APC, SPLICE, WITH FIBER PIGTAILS Download n/a
FSCS124QLCP SPLICE CASSETTE, LC X 24, 62.5μm OM1, SPLICE, WITH FIBER PIGTAILS Download n/a
FSCS224QLCP SPLICE CASSETTE, LC X 24, 50μm OM2, SPLICE, WITH FIBER PIGTAILS Download n/a
FSCS324QLCP SPLICE CASSETTE, LC X 24 50μm OM3, SPLICE, WITH FIBER PIGTAILS Download n/a
FSCS424QLCP SPLICE CASSETTE, LC X 24, 50μm OM4, SPLICE, WITH FIBER PIGTAILS Download n/a
FSCS824QLCP SPLICE CASSETTE, LC X 24, SM, SPLICE, WITH FIBER PIGTAILS Download n/a
FSCSA24QLCP SPLICE CASSETTE, LC X 24, APC, SPLICE, WITH FIBER PIGTAILS Download n/a
Many other configurations are available. The above PN's are not everything that is available. Include Configurator Image so customers can build their exact solution.

Instruction Sheets

Related Documents

Please Login Here to access additional documents.

Keeping You Connected: Fiber Splice Cassettes

OCC’s New Fiber Splice Cassette

Talk to a knowledgeable OCC Expert that can find or customize a product to fit your specifications. 800-622-7711
