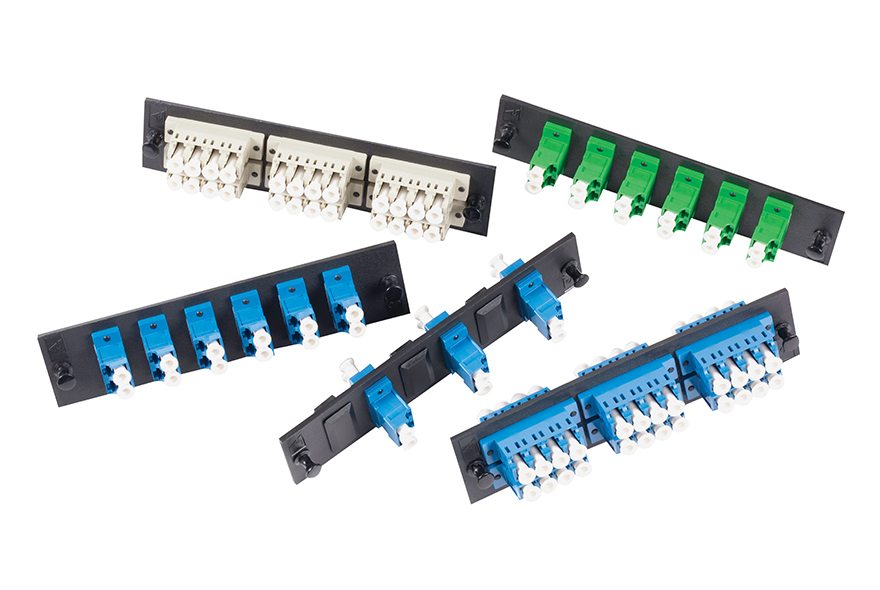

LC Adapter Plates
Installation zone RECOMMENDATION1
1
1
1
To accompany all OCC fiber optic enclosures, Optical Cable Corporation developed snap-in fiber adapter plates that are versatile enough to meet any fiber application and durable enough to withstand field installations. All OCC fiber adapter plates guarantee performance parameters for the application specified, and can be pre-loaded into OCC fiber cabinets for easy plug-and-play operability.
Features
- Available in 6, 8, and 12-port fiber configurations
- Panel options available include ST, SC, FC, MT-RJ, LC, and others
- Higher density applications can be reached through OCC's Quad LC adapter plates
- Ceramic alignment sleeves
- Blank panels are available for use as dust covers
- Plates are available for mounting bezel style jacks, creating a mixed-media environment
Specifications
| Download Drawing(s) | ||||
|---|---|---|---|---|
| Part Number | Description | DWG/ZIP | ||
| 616MMDLC | Adapter Plate, 6-port, Dual LC, Multimode, Ceramic Sleeve | Download | Download | |
| 616DLC | Adapter Plate, 6-port, Dual LC, Multimode/Single-mode, Ceramic Sleeve | Download | Download | |
| 616SMDLC | Adapter Plate, 6-port, Dual LC, Single-mode, Ceramic Sleeve | Download | Download | |
| 616SMDLCAPC | Adapter plate, 6-port, Dual LC, APC, Single-mode, Ceramic Sleeve | Download | Download | |
| 616DLC50G | Adapter plate, 6-port, Dual LC, Multimode, 50µm, Ceramic Sleeve, 10 GbE | Download | Download | |
| 818DLC | Adapter Plate, 8-port, Dual LC, Multimode/Single-mode, Ceramic Sleeve | Download | Download | |
| 818SMDLC | Adapter Plate, 8-port, Dual LC, Single-mode, Ceramic Sleeve | Download | Download | |
| 6112DLC | Adapter Plate, 12-port, Dual LC, Multimode/Single-mode, Ceramic Sleeve | Download | Download | |
| 6112MMDLC | Adapter Plate, 12-port, Dual LC, Multimode, Ceramic Sleeve | Download | Download | Quick Ship |
| 6112SMDLC | Adapter Plate, 12-port, Dual LC, Single-mode, Ceramic Sleeve | Download | Download | Quick Ship |
| 6112DLCAPC | Adapter plate, 12-port, Dual LC, APC, Single-mode, Ceramic Sleeve | Download | Download | |
| 6112DLC50G | Adapter plate, 12-port, Dual LC, Multimode, 50µm, Ceramic Sleeve, 10 GbE | Download | Download | Quick Ship |
| 6124MMQLC | Adapter Plate, 24-port, Quad LC, Multimode, Ceramic Sleeve | Download | Download | Quick Ship |
| 6124SMQLC | Adapter Plate, 24-port, Quad LC, Single-mode, Ceramic Sleeve | Download | Download | Quick Ship |
| 6124QLC50G | Adapter plate, 24-port, Quad LC, Multimode, 50µm, Ceramic Sleeve, 10 GbE | Download | Download | Quick Ship |
