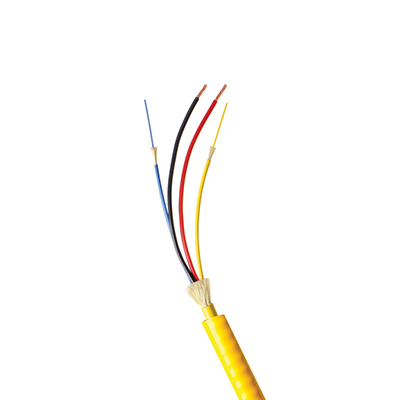

Slimline Riser Indoor/Outdoor PLTC Aluminum Interlocking Armored (ILA) Hybrid Powered Fiber Cables
Installation zone RECOMMENDATION1
1
1
1
These small diameter hybrid powered fiber cables are thinner, lighter, and more flexible than other hybrid cables on the market. Perfect for remotely powered Passive Optical LAN installations, security cameras, and wireless access points, the Slimline Hybrid offers the convenience of remote power and the data rates of fiber optics all in one cable that can be installed indoors, outdoors, and in cable trays. Flexible aluminum interlocking armor (ILA) provides additional protection for the cable.
Remote Power Distance Calculator
(Based upon input variables below, this calculator will calculate distance for 12-22AWG conductors)
Applications
- Specifically designed for indoor/outdoor installations that utilize a centralized power supply to remoted power end devices, thus eliminating the need to provide local AC power to each location.
- Two copper wires provide power from a centralized power supply to end devices while fiber optic elements provide bi-directional data paths through the cable.
- Hybrid fiber/copper cables are designed for use in wet locations on Class 3 power-limited circuits and Power Limited Tray Cable (PLTC) circuits as described in Article 725 of the National Electrical Code.
- Allows remote power over distances greater than the 100m limitation of traditional Power Over Ethernet (PoE).
- Installations where it is beneficial to install a factory armored cable instead of pulling a cable through a conduit.
Features
- Various combinations of copper conductors and optical fibers in a single hybrid cable.
- Riser-rated construction is also PLTC rated, perfect for use in offices and industrial settings.
- PLTC rating allows cable to be installed in cable trays
- 12, 14, 16, 18, 20, or 22 AWG wires available. Class-3 power limited, 300V rated wire insulation.
- Cables made with OCC's single-mode or multimode fiber types.
- Choice of 900μm buffered fibers or 900μm buffered fibers inside 2.0mm sub-units. The sub-units contain aramid yarn for a more robust strain relief when terminating the fiber into a connector and provide added protection in outdoor applications.
- Ultra-Fox™ tight buffered fiber.
- Indoor/Outdoor Slimline is also available without aluminum interlocking armor (ILA). Non-ILA versions of the cable maintain the Riser and PLTC ratings.
Specifications
Slimline-Riser Indoor/Outdoor PLTC ILA (900µm Buffered Fiber)
| Tensile Load | Minimum Bend Radius | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Fiber Count | Part Number | Spec Sheet | Diameter mm (in) |
Weight kg/km (lbs/1,000ft) |
Installation N (lbs) |
Operation N (lbs) |
Installation cm (in) |
Longer Term cm (in) |
|
| 1 Fiber + 2x12 AWG | CA003DPF*9*RI2 | Download Spec Sheet |
17.1 (0.67) |
278.0 (187.0) |
707 (159) |
212 (48) |
34.2 (13.5) |
25.7 (10.1) |
|
| 1 Fiber + 2x14 AWG | CA003DPE*9*RI2 | Download Spec Sheet |
16.1 (0.63) |
238.0 (160.0) |
507 (114) |
152 (34) |
32.2 (12.7) |
24.2 (9.5) |
|
| 1 Fiber + 2x16AWG | CA003DPD*9*RI2 | Download Spec Sheet |
15.1 (0.59) |
203.0 (136.0) |
355 (80) |
107 (24) |
30.2 (11.9) |
22.7 (8.9) |
|
| 1 Fiber + 2x18 AWG | CA003DPC*9*RI2 | Download Spec Sheet |
14.6 (0.57) |
185.0 (124.0) |
321 (72) |
96 (22) |
29.2 (11.5) |
21.9 (8.6) |
|
| 1 Fiber + 2x20 AWG | CA003DPB*9*RI2 | Download Spec Sheet |
14.1 (0.56) |
175.0 (118.0) |
316 (71) |
95 (21) |
28.2 (11.1) |
21.2 (8.3) |
|
| 1 Fiber + 2x22 AWG | CA003DPA*9*RI2 | Download Spec Sheet |
13.6 (0.54) |
162.0 (109.0) |
316 (71) |
95 (21) |
27.2 (10.7) |
20.4 (8.0) |
|
| 2 Fibers + 2x12 AWG | CA004DPF*9*RI2 | Download Spec Sheet |
17.1 (0.67) |
278.0 (187.0) |
707 (159) |
212 (48) |
34.2 (13.5) |
25.7 (10.1) |
|
| 2 Fibers + 2x14 AWG | CA004DPE*9*RI2 | Download Spec Sheet |
16.1 (0.63) |
238.0 (160.0) |
507 (114) |
152 (34) |
32.2 (12.7) |
24.2 (9.5) |
|
| 2 Fibers + 2x16 AWG | CA004DPD*9*RI2 | Download Spec Sheet |
15.1 (0.59) |
203.0 (136.0) |
355 (80) |
107 (24) |
30.2 (11.9) |
22.7 (8.9) |
|
| 2 Fibers + 2x18 AWG | CA004DPC*9*RI2 | Download Spec Sheet |
14.6 (0.57) |
185.0 (124.0) |
321 (72) |
96 (22) |
29.2 (11.5) |
21.9 (8.6) |
|
| 2 Fibers + 2x20 AWG | CA004DPB*9*RI2 | Download Spec Sheet |
14.1 (0.56) |
175.0 (118.0) |
316 (71) |
95 (21) |
28.2 (11.1) |
21.2 (8.3) |
|
| 2 Fibers + 2x22 AWG | CA004DPA*9*RI2 | Download Spec Sheet |
13.6 (0.54) |
162.0 (109.0) |
316 (71) |
95 (21) |
27.2 (10.7) |
20.4 (8.0) |
|
Slimline-Riser Indoor/Outdoor PLTC ILA (2.0mm Sub-Units)
| Tensile Load | Minimum Bend Radius | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Fiber Count | Part Number | Spec Sheet | Diameter mm (in) |
Weight kg/km (lbs/1,000ft) |
Installation N (lbs) |
Operation N (lbs) |
Installation cm (in) |
Longer Term cm (in) |
|
| 1 Fiber + 2x12 AWG | CE003DPF*9*RI2 | Download Spec Sheet |
17.1 (0.67) |
283.0 (190.0) |
715 (161) |
215 (48) |
34.2 (13.5) |
25.7 (10.1) |
|
| 1 Fiber + 2x14 AWG | CE003DPE*9*RI2 | Download Spec Sheet |
16.1 (0.63) |
243.0 (163.0) |
514 (116) |
154 (35) |
32.2 (12.7) |
24.2 (9.5) |
|
| 1 Fiber + 2x16 AWG | CE003DPD*9*RI2 | Download Spec Sheet |
15.6 (0.61) |
216.0 (145.0) |
363 (82) |
109 (24) |
31.2 (12.3) |
23.4 (9.2) |
|
| 1 Fiber + 2x18 AWG | CE003DPC*9*RI2 | Download Spec Sheet |
15.1 (0.59) |
197.0 (132.0) |
329 (74) |
99 (22) |
30.2 (11.9) |
22.7 (8.9) |
|
| 1 Fiber + 2x20 AWG | CE003DPB*9*RI2 | Download Spec Sheet |
15.1 (0.59) |
194.0 (130.0) |
324 (73) |
97 (22) |
30.2 (11.9) |
22.7 (8.9) |
|
| 1 Fiber + 2x22 AWG | CE003DPA*9*RI2 | Download Spec Sheet |
14.6 (0.57) |
182.0 (123.0) |
324 (73) |
97 (22) |
29.2 (11.5) |
21.9 (8.6) |
|
| 2 Fibers + 2x12 AWG | CE004DPF*9*RI2 | Download Spec Sheet |
17.1 (0.67) |
283.0 (190.0) |
715 (161) |
215 (48) |
34.2 (13.5) |
25.7 (10.1) |
|
| 2 Fibers + 2x14 AWG | CE004DPE*9*RI2 | Download Spec Sheet |
16.1 (0.63) |
243.0 (163.0) |
514 (116) |
154 (35) |
32.2 (12.7) |
24.2 (9.5) |
|
| 2 Fibers + 2x16 AWG | CE004DPD*9*RI2 | Download Spec Sheet |
15.6 (0.61) |
216.0 (145.0) |
363 (82) |
109 (24) |
31.2 (12.3) |
23.4 (9.2) |
|
| 2 Fibers + 2x18 AWG | CE004DPC*9*RI2 | Download Spec Sheet |
15.1 (0.59) |
197.0 (132.0) |
329 (74) |
99 (22) |
30.2 (11.9) |
22.7 (8.9) |
|
| 2 Fibers + 2x20 AWG | CE004DPB*9*RI2 | Download Spec Sheet |
15.1 (0.59) |
194.0 (130.0) |
324 (73) |
97 (22) |
30.2 (11.9) |
22.7 (8.9) |
|
| 2 Fibers + 2x22 AWG | CE004DPA*9*RI2 | Download Spec Sheet |
14.6 (0.57) |
182.0 (123.0) |
324 (73) |
97 (22) |
29.2 (11.5) |
21.9 (8.6) |
|
