SMPTE-3-IN-1 Stadium – Riser Rated Broadcast Cables

Installation zone RECOMMENDATION
1
1
1
1
  • Permanent Installations Where UL Riser Rating is Required
  • Connecting Fixed Wall Box Connections to Control Room Patch Panels
  • 2 or 3 Cameras in One Location – Only One Cable to Run
  • Utilizes TIA Color-Coding of the Fibers as Well as Electrical Bundles

Features

  • Compatible with SMPTE 311 Standards
  • Riser Rated PVC Jacket

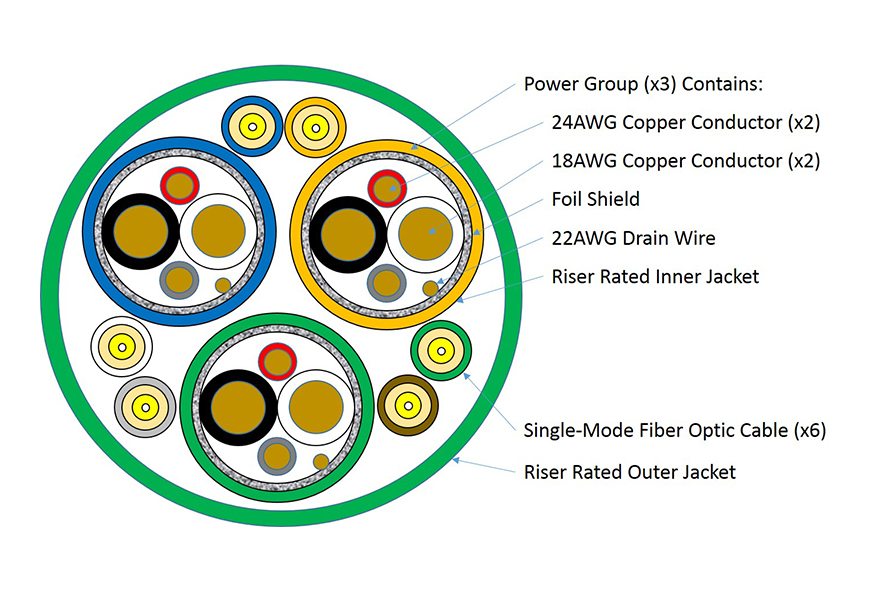

  • 3 Power Groups, Each With a Color-Coded Jacket
  • 6-Fibers in Subunits – Each With a Color-Coded Jacket
  • Fibers and Power Groups are Uniquely Identified by Color
  • 245µm Acrylate Fiber

Specifics

  • 6-Fiber Count
  • PN: CX021HBAB9GR
  • Diameter: 14.0 mm (0.55 in)
  • Weight: 274kg/km (184 lbs/1000 ft)
  • Minimum Bend Radius: 14 cm (5.5 in)

Specifications

Download Drawing(s)
Part Number Description PDF DWG/ZIP
CX021HBAB9GR Download n/a
